MAP Technology
78 PN 89-00002-00-110 Rev. B

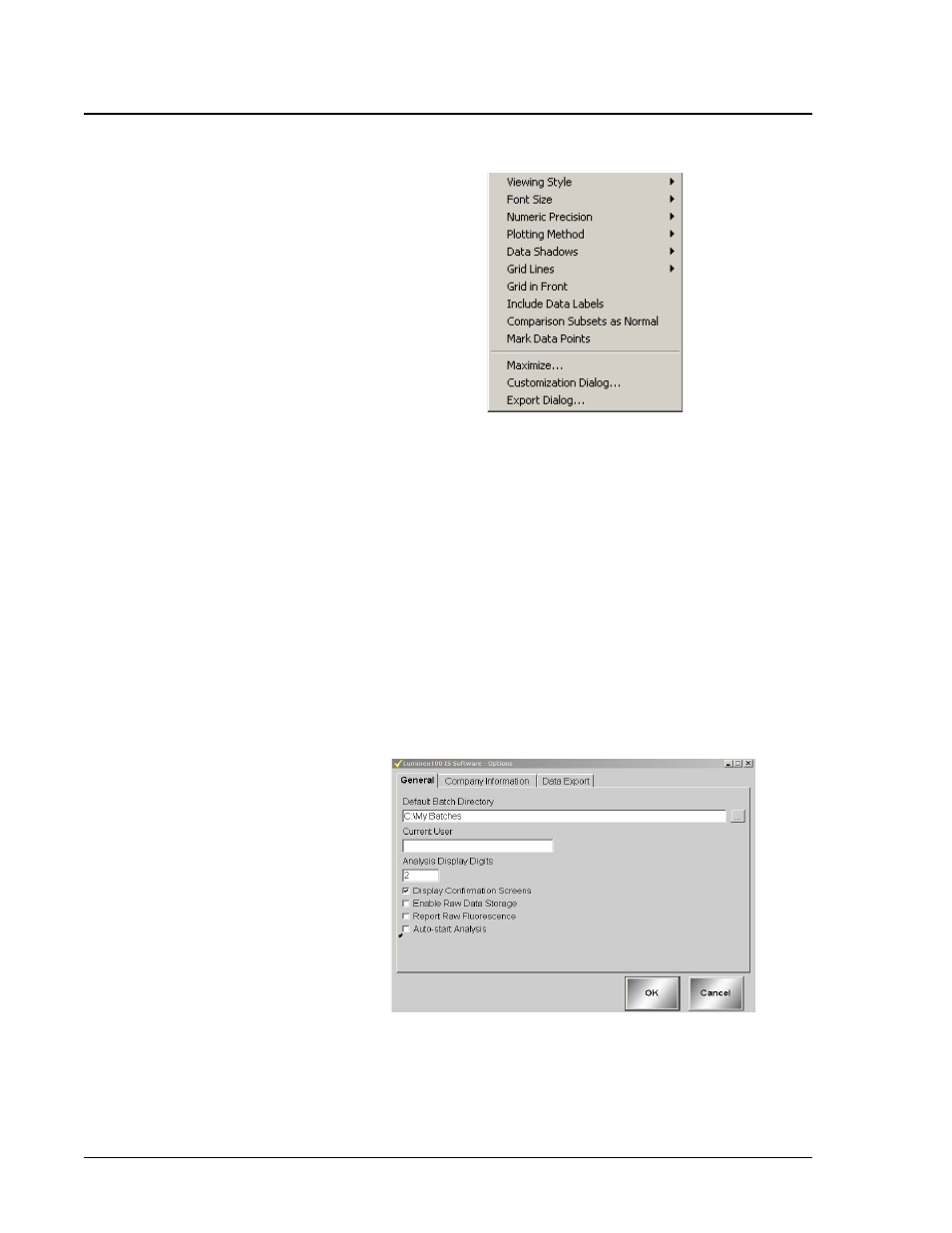

Figure 52 Graph Menu Items
Enable Automatic
Analysis
You can configure the system to automatically start analysis (data
reduction) immediately following batch acquisition. If you disable
the Auto-start Analysis feature, you must select Analysis from the
Home tab or toolbar to analyze a batch. Note that the Auto-start
Analysis feature is disabled when processing a multi-batch.
To ensure that calculated data is exported to the output.csv file, you
should not select both Auto-Start Analysis and the Auto Export
Batches checkbox on the Data Export tab of the Options dialog box.
Also note that Analysis and data reduction are synonymous terms.
‹
To enable automatic analysis:
1. On the Tools menu, click Options, then click on the General
tab. See Figure 53.
Figure 53 Options Dialog Box—Select Auto-start Analysis
2. Click the Auto-Start Analysis checkbox, then click OK. When
the system completes the batch acquisition, it will automatically
begin analyzing data.
