5. Enter the standard concentration values provided in the kit
manufacturer’s instructions. See Figure 43.
6. Enter the control reagent values. The controls are divided into 3
separate tabs: Low Limit, Expected Value, or High Limit. All
information must be defined to enable the Save button.
7. Click Save. The system applies the lot you just created to the
template.
Edit Lot
Information on an
Unused Template
To edit information for an existing lot:
1. On the Home tab, click New Lot. The Open Template dialog
box opens.
2. Highlight the template that you want to edit and click Select. The
Update Lot Information dialog box opens. See Figure 44.

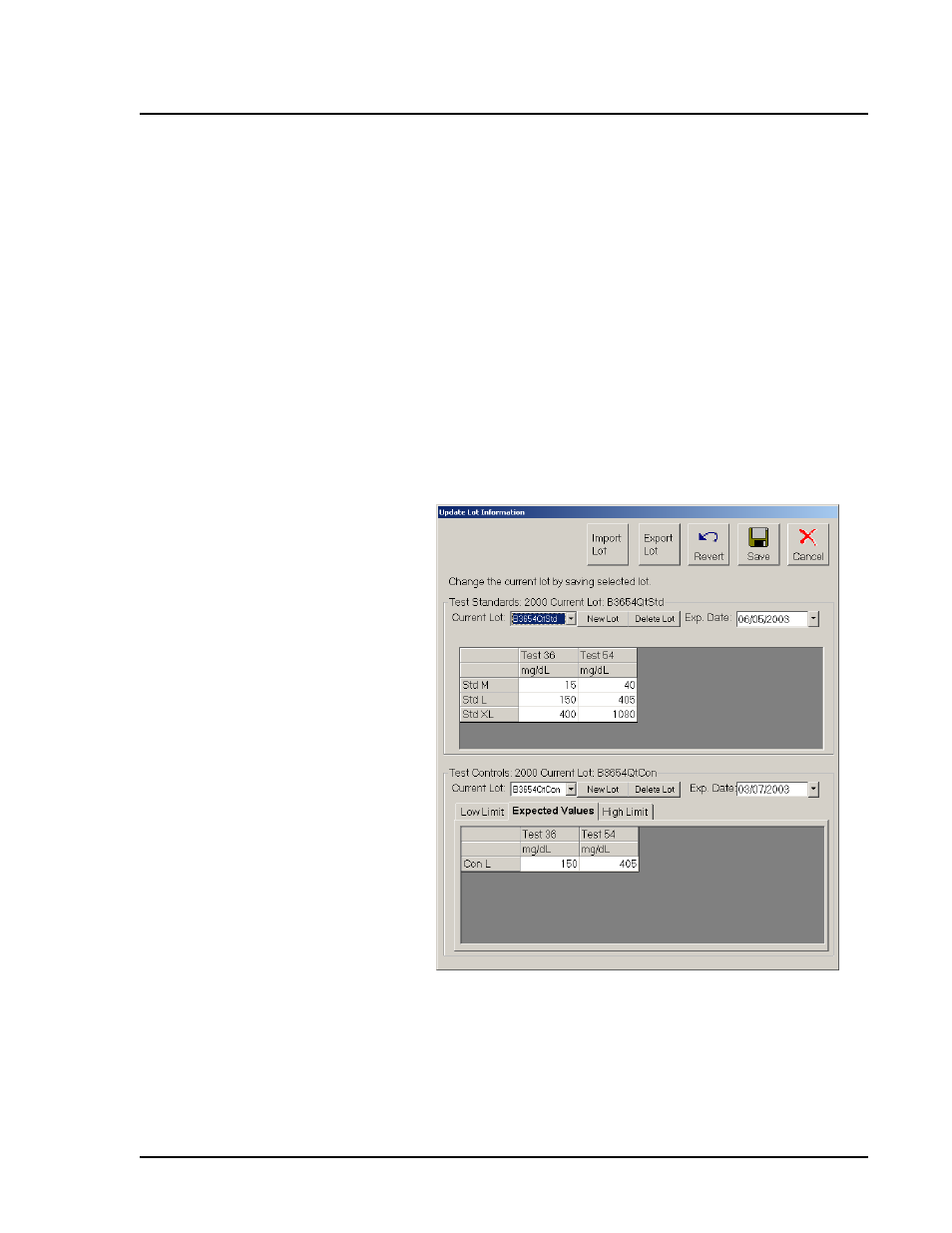

Figure 44 Update Lot Information Dialog Box
3. Change or edit the expiration date and the lot concentration
values.
4. Click Save. The system updates the lot changes and applies them
to the template.
