Luminex IS Version 2.3 - Manual (Page 87)

x
MAP Technology Luminex 2.3 Software
PN 89-00002-00-110 Rev. B 77

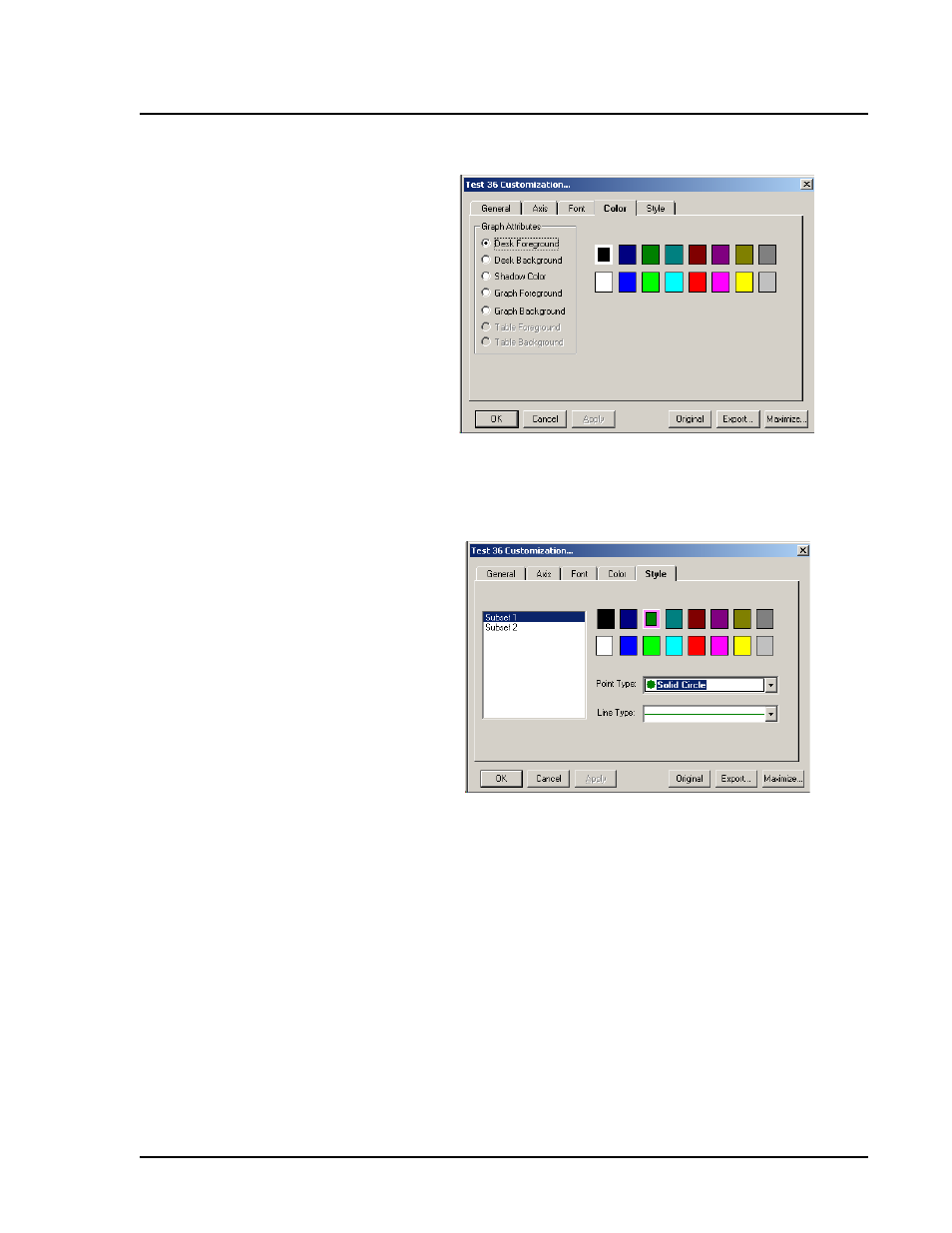

Figure 50 Customization Dialog Box—Color Tab
• Style Tab—use the Style tab for control of subset color, subset
line type, and subset point type. Subset 1 = line type, and Subset
2 = data point. See Figure 51.
Figure 51 Customization Dialog Box—Style Tab
‹
To modify features using the Graph Menu:
Most of these menu items provide a shortcut for many of the features
provided in the Customization dialog box. Refer to page 73 for
details.
1. Right-click anywhere in the graph on the Standards tab. The
graph menu opens. See Figure 52.
2. Select the desired menu item from the list and it is immediately
applied.
