13. Use the software to run the prime command twice, watching for any leaks in the syringe
area.
14. Close the right front door.

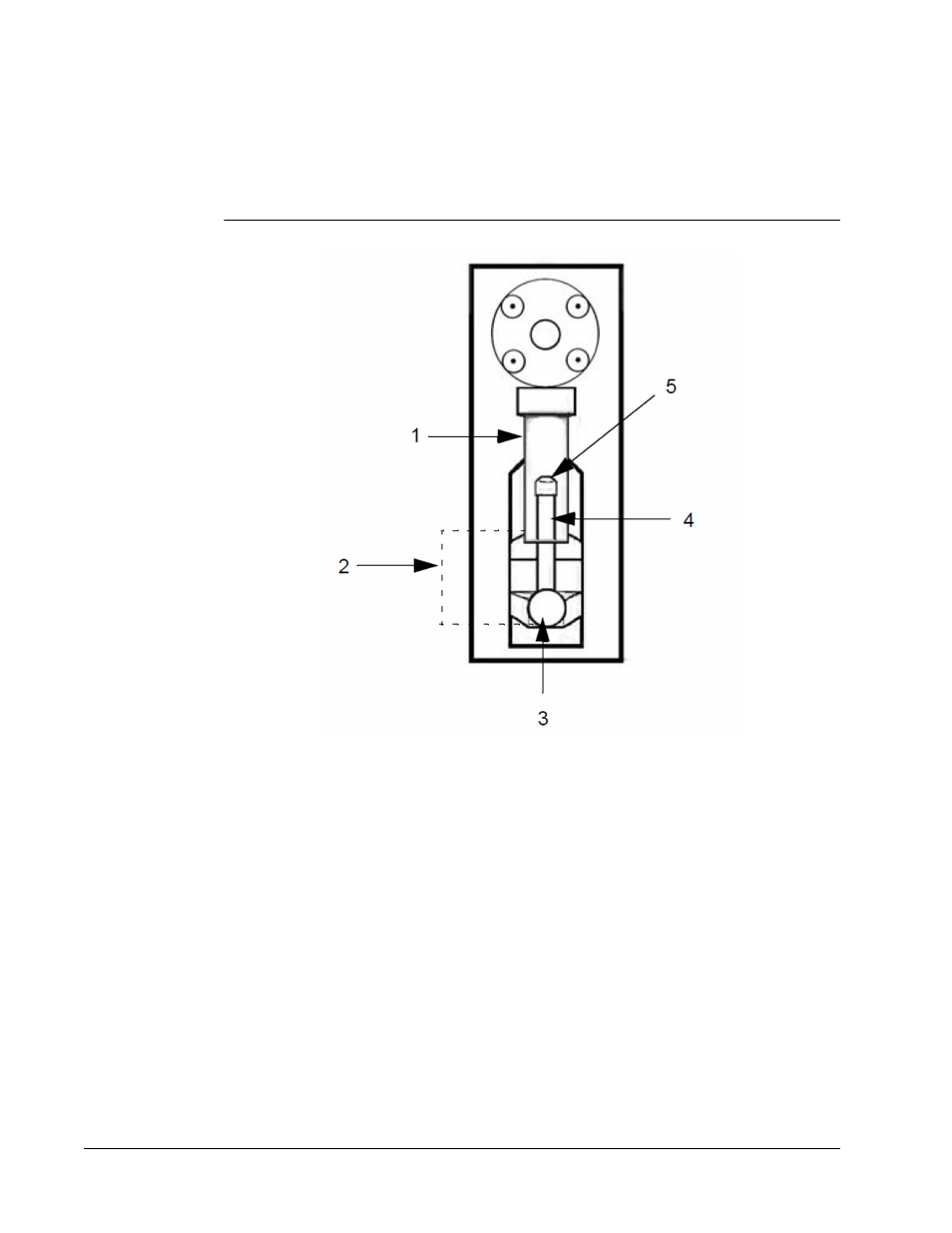

FIGURE 16. Syringe Assembly (Inside Right Door)
Replacing the HEPA Air Filter
The HEPA air filter is the round filter behind the panel on the left side of the front of the
fluidics bay. Tubing from the interior of the fluidics bay is attached to the stem in the center
back of the filter.
To replace the HEPA air filter:
1. Turn off the FLEXMAP 3D instrument and unplug the power cord.
2. Open the left door and locate the HEPA air filter panel on the front of the fluidics bay as
shown in the HEPA Air Filter image below.
3. Remove the screw at the top of the panel and open the panel door as shown in the HEPA
Air Filter image below.
4. Grasp the tubing and pull the filter 3 to 4 inches from the unit.
Maintenance and Cleaning
29
