1 Power Input Module
2 Communications Port P1 (USB type B)
Fluidics
The fluidics system handles the flow of liquid through the Luminex ® FLEXMAP 3D ®
instrument.
Access Doors
The Luminex ® FLEXMAP 3D ® system has two front access doors. The left door supplies
access to a door ventilation filter and the sheath filter. The right door supplies access to a
door ventilation filter, the sample probe, and the syringe pumps. See the "Front of the
FLEXMAP 3D Instrument" image below.

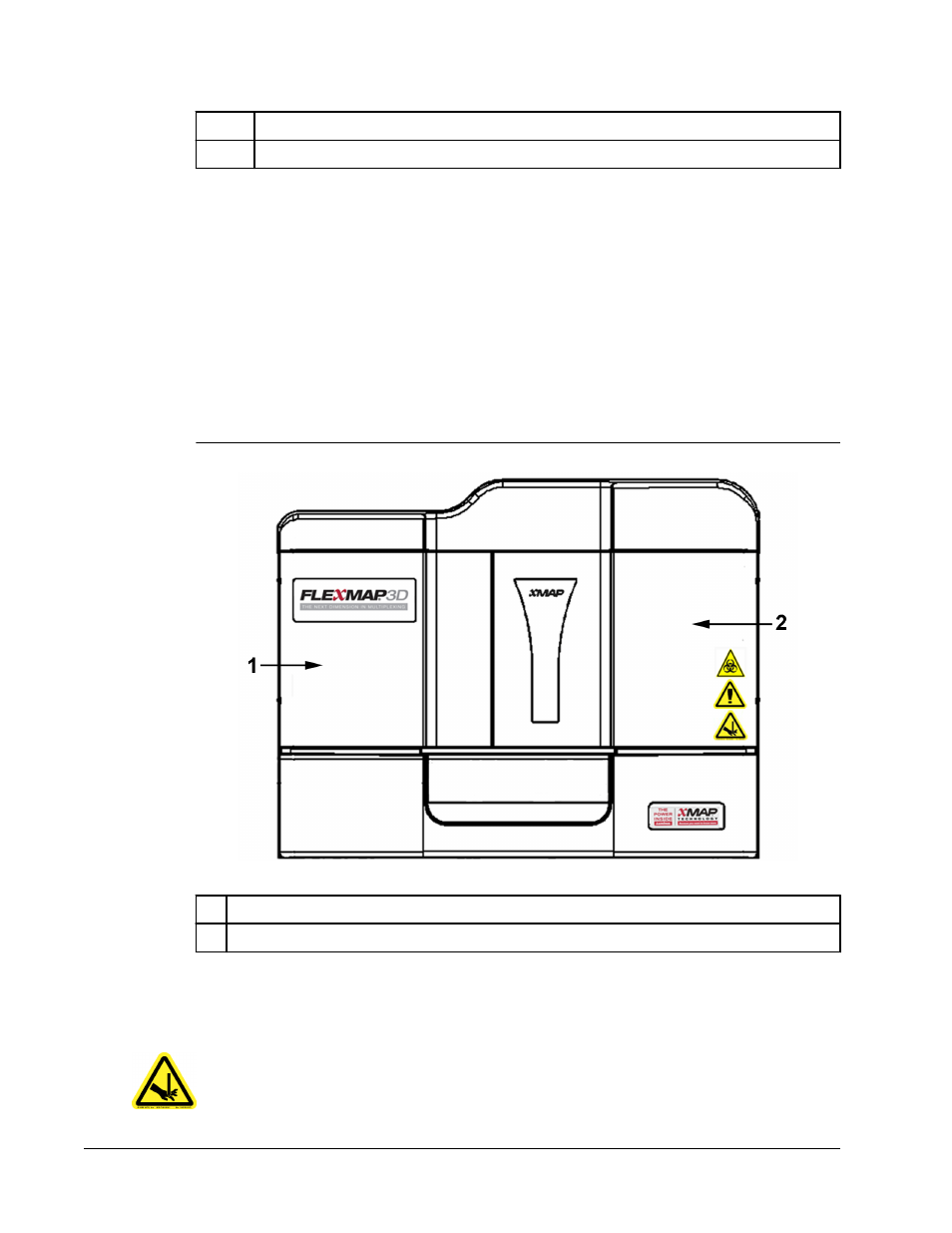

FIGURE 9. Front of the FLEXMAP 3D Instrument
1 Left door, with access to sheath filter and door ventilation filter
2 Right door, with access to syringe pumps, door ventilation filter, and sample probe
Sample Probe
A stainless steel sample probe acquires the sample. See the "Sample Probe" image below.
WARNING: Avoid contact with moving parts.
