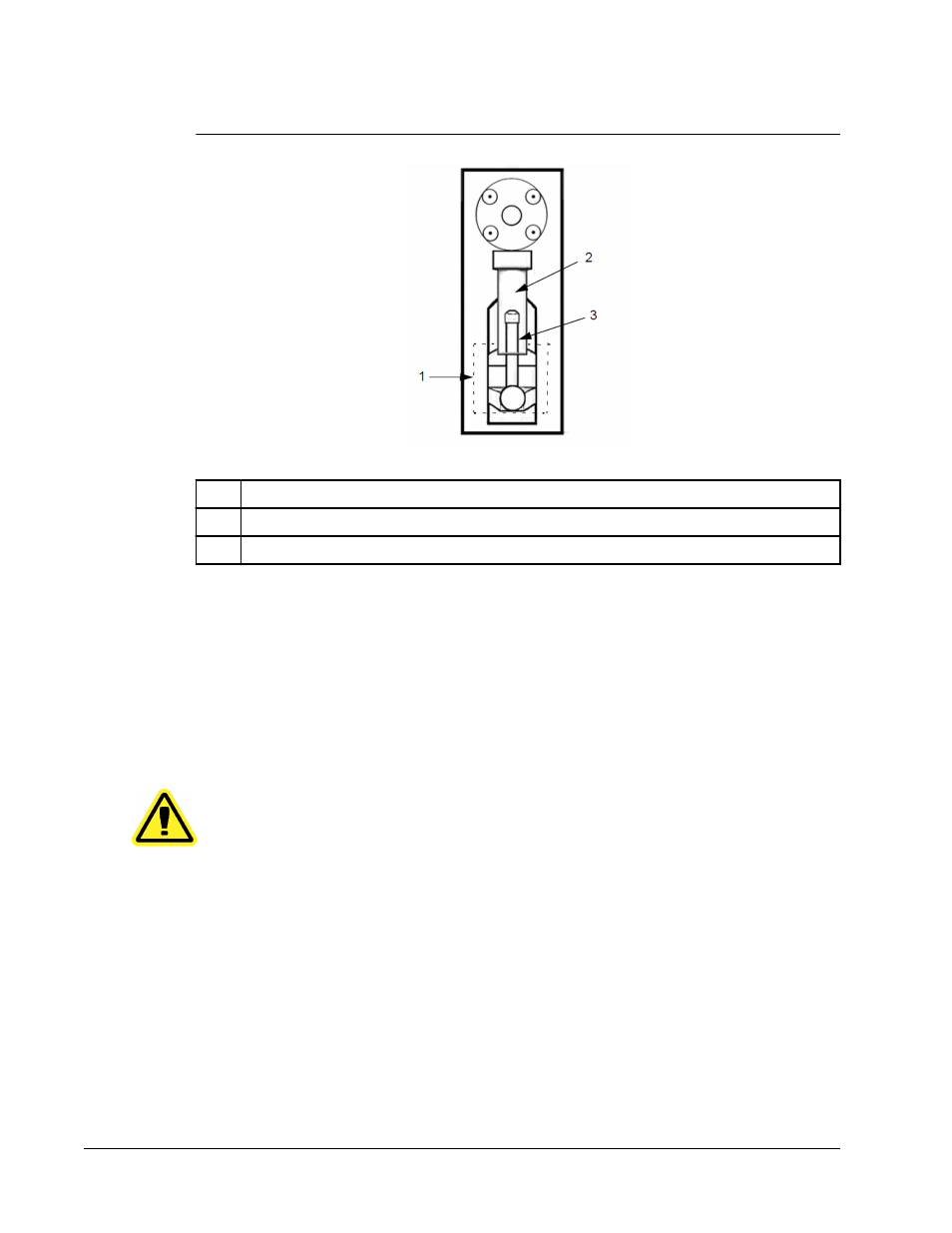

FIGURE 11. Syringe Pump
1 Syringe arm (within dotted lines)
2 Glass syringe barrel
3 Syringe plunger
Sheath Filter
The sheath filter removes particles greater than ten microns in diameter from the sheath fluid.
See the "Fluidics Bay" image below.
Fluidics Bay
The waste and sheath connectors, located on the front of the fluidics bay, connect to the
sheath fluid and waste fluid containers using clear tubing. The sheath fluid connector is blue
and the waste connector is orange. See the "Fluidics Bay" image below.
CAUTION: Wear appropriate personal protective equipment when handling
parts that come into contact with potentially biohazardous
samples.
Technical Overview
15
