Cheminert ® Fitting
This fitting attaches the sample probe to the sample tubing. Disconnect this fitting when you
remove the sample probe. See the "Sample Probe" figure below.
WARNING: Wear appropriate personal protective equipment when handling
parts that come into contact with potentially biohazardous
samples.

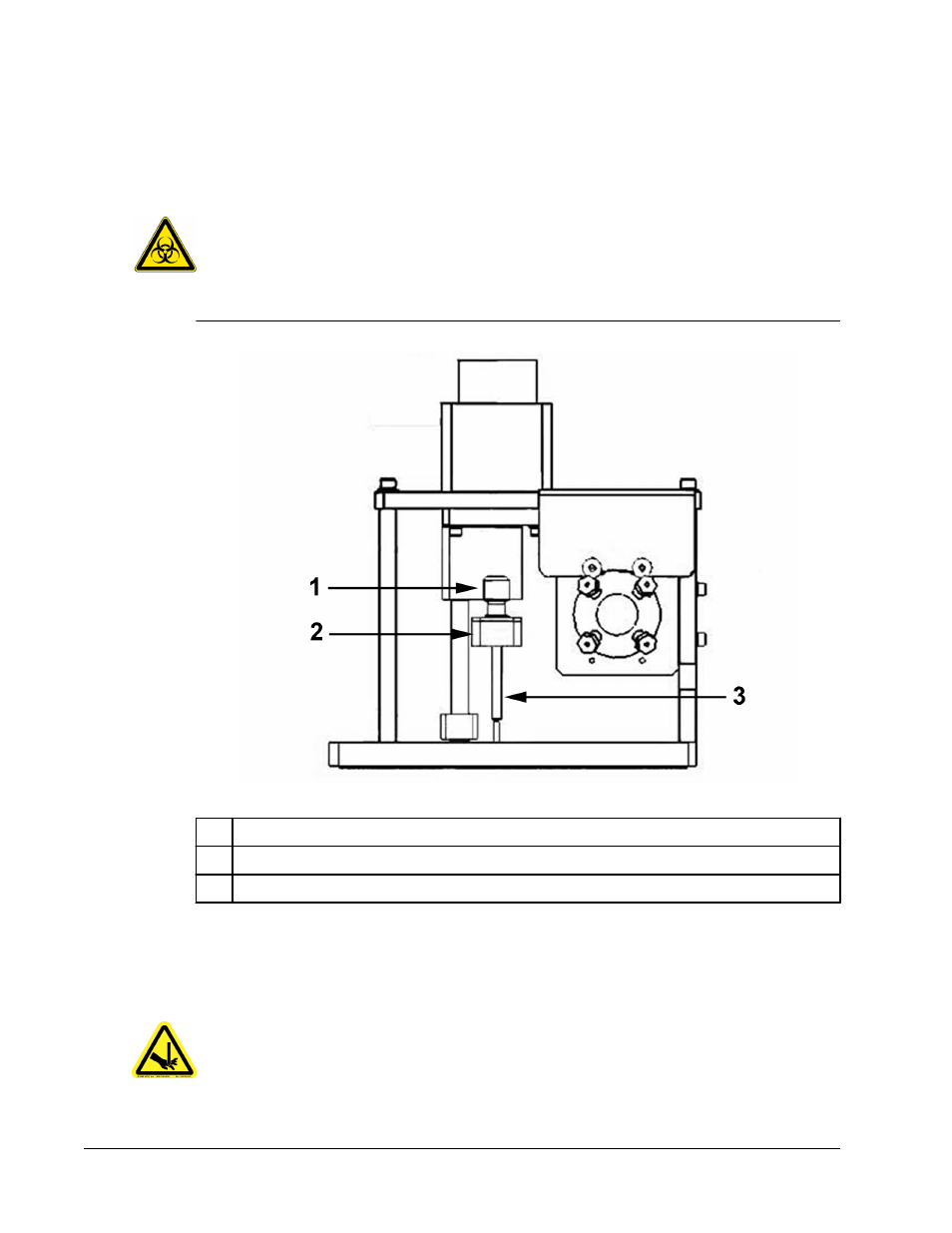

FIGURE 10. Sample Probe
1 Cheminert fitting
2 Attachment point on Cheminert fitting for sample tubing
3 Sample probe, in up position
Syringe Pump
The syringe delivers a sample from the microtiter plate to the cuvette. See the "Syringe
Pump" image below.
WARNING: Avoid contact with moving parts.
