Magnum Venus Plastech ADVANTAGE User Manual
Page 44
Advantage Gelcoater

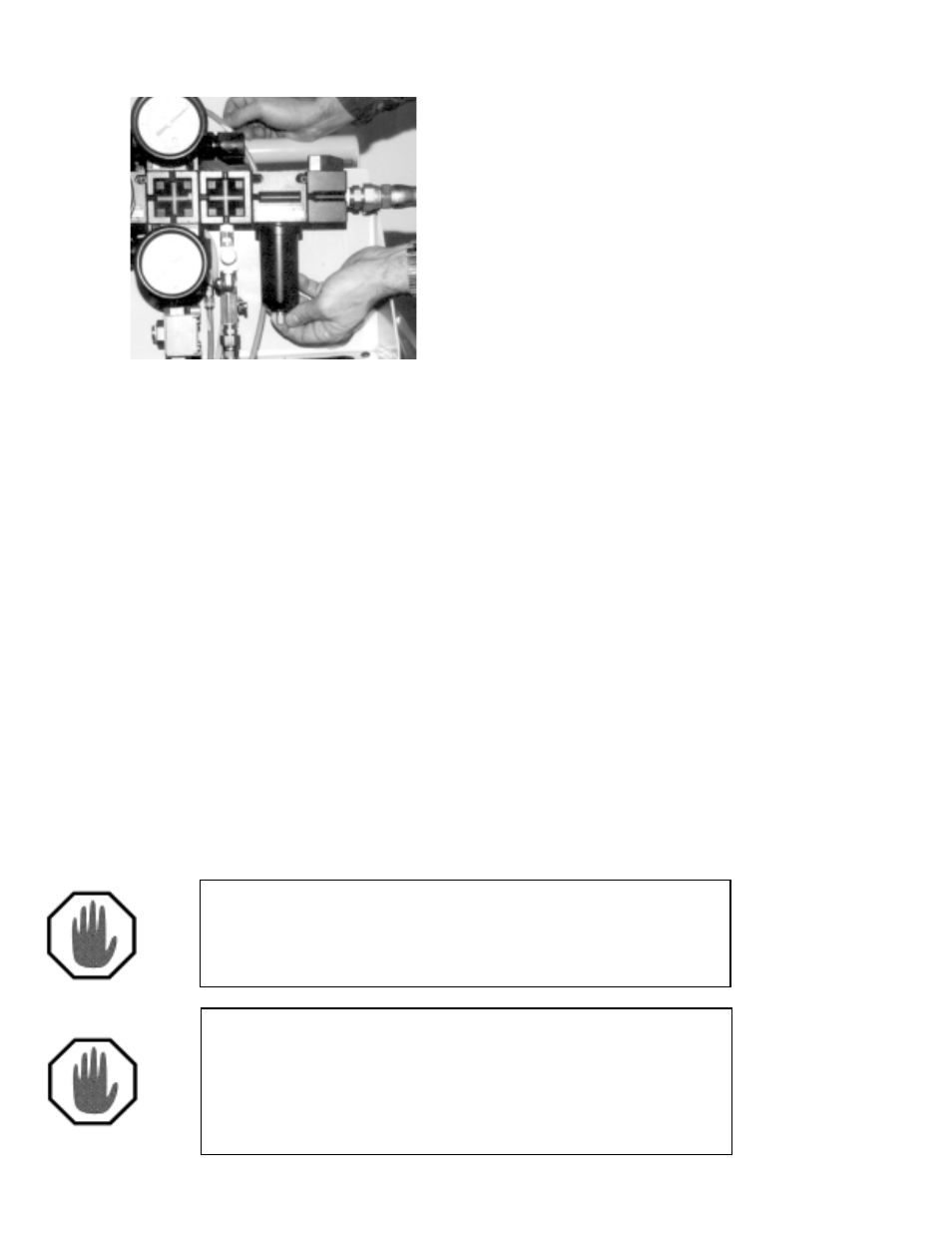

Figure 35: Draining the Filter
Clean Gun Head
Push the button on the left side of the gun to flush the gun into an appro-
priate container.
Remove nozzle and nozzle retainer from nozzle extension body.
Remove the nozzle extension body from gun head.
Using the turbulent mixer puller, remove the turbulent mixer from mix
chamber.
Insert the 1/4” steel rod (provided in the Gelcoater Unit Tool Kit) into the
front nozzle extension body and press out the static mixer.
Rinse the nozzle assembly parts and the static mixer in a closed
container of solvent.
Soak the nozzle assembly parts in a closed container of solvent.
Remove mix chamber
NOTE
Solvent flush of system should precede cleaning of
gun, accumulator, etc. After disconnecting and
cleaning catalyst system.
NOTE
When using solvent for cleaning or flushing, be sure to
store the used solvent in a manufacturer-approved con-
tainer with a tight-fitting lid for storage while waiting to
run the used solvent through your recycling equipment.
Solvents evaporate quickly.
