Advantage Gelcoater
Air Assist Nozzle - 419 #30419
Install Nozzle Assembly
Insert turbulent mixer into the mix chamber.
Insert static mixer into nozzle extension body.
Attach nozzle extension body to gun mix chamber.
Attach selected nozzle onto the extension body.
Insert the nozzle into the retainer (see Figure 29).
Tighten nozzle retainer onto the nozzle extension body.
NOTE
Use lithium grease on mix chamber and all nozzle
extension body threads.
CAUTION
To avoid contamination of the laminate, do not apply
grease to any part that will contact the interior of the gun-
head.
NOTE
While tightening nozzle retainer onto nozzle exten-
sion body, hold nozzle in the appropriate position to
get desired spray pattern.

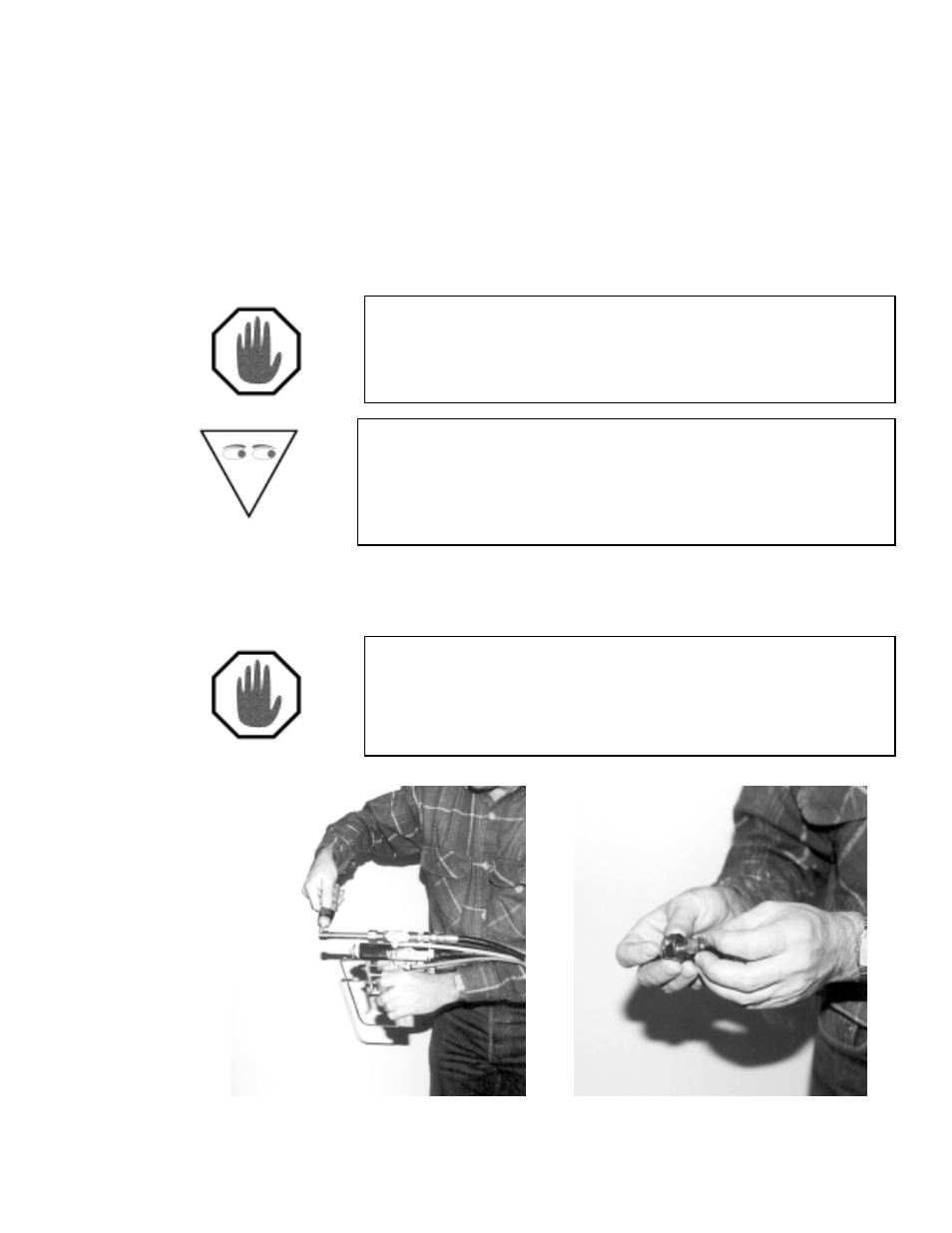

Figure 28: Apply Grease to
Nozzle Retainer Figure 29: Insert Nozzle in
Retainer
31
