9

Lap Pad Calibration & Set-Up

Make sure that the Lap Pad or other data entry device is connected to the LCR-II register as described in the LCR-
II Installation Manual.

When proving the LCR-II system, follow the pre-test and inspection procedures established by Weights & Measures
authorities. The primary indicating and recording element on a vehicle-mounted LCR-II is the 6-digit liquid crystal
display.

Weights & Measures inspectors are responsible for determining if the truck metering and recording elements of the
system are within tolerance. To make this determination, the system should be tested under normal conditions.

The LCR-II is pre-programmed with common values for many of the programmable parameters. These values
should be checked to ensure that they fit the specific requirements of the given installation. Detailed instructions
for checking and changing these values follow later in this publication.

Changes cannot be made to metrologically significant data without first removing the Switchplate and its associated
Weights & Measures seal. The security level for each of the programming screens is defined in the following table:

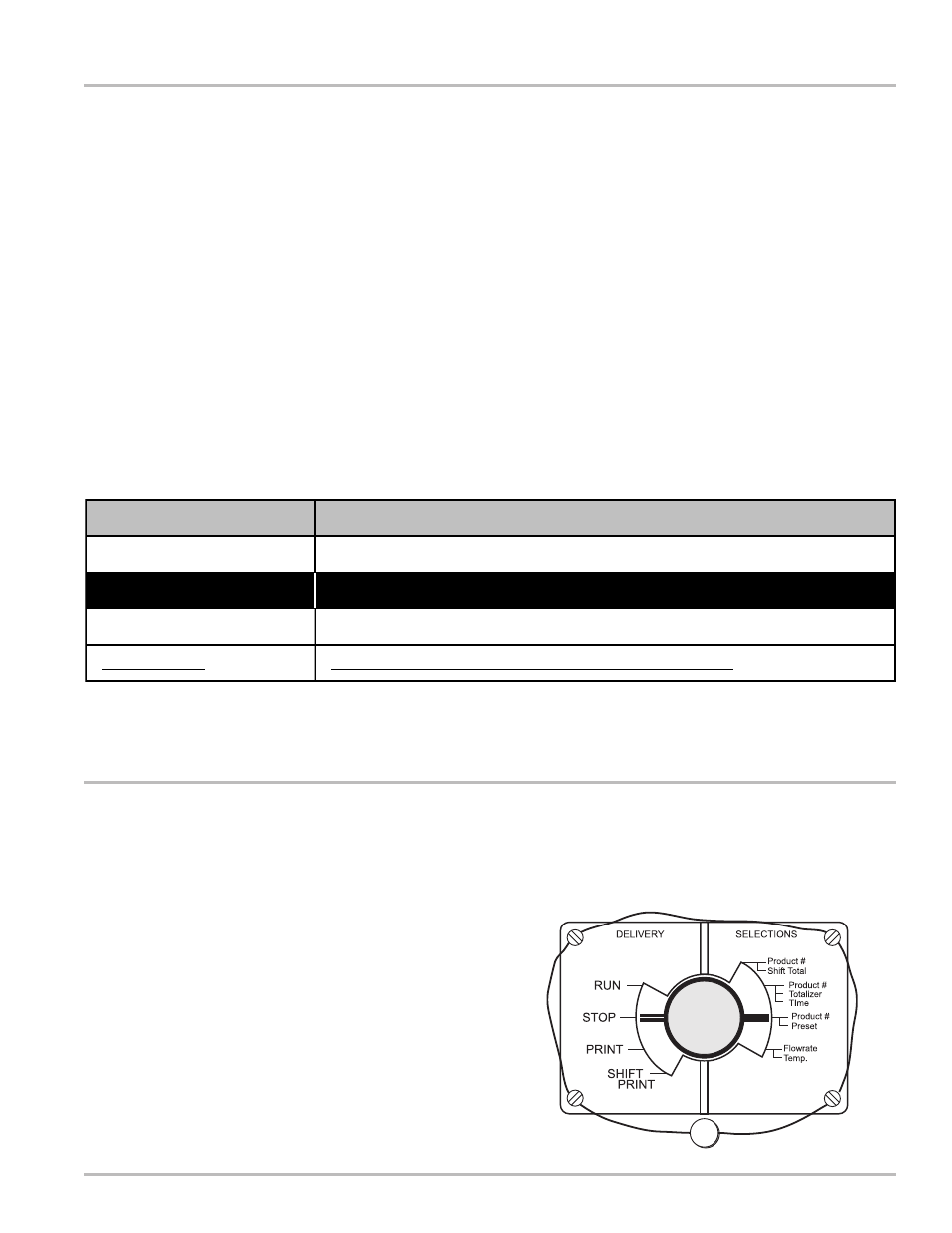

STEP 1: REMOVE THE LCR-II
SWITCHPLATE

Remove the lead seal and wire assembly from the
LCR-II Switchplate (if previously sealed by Weights
& Measures authorities).

Remove the four screws that secure the Switch Plate
over the red Selector Switch located on the front of
the LCR-II, and remove the plate.

Rotate the Selector Switch counter clockwise to the
6 o'clock (CALIBRATION) position to permit access
to all programming fields (except FACTORY).

NOTE: This table applies to the lower line of the Lap Pad display only. The upper line cannot be edited.

BEFORE GETTING STARTED

OPERATOR

Operato can change or enter data.

PASSWORD

System must be unlocked.

NOT EDITBLE

Read only (can not be changed by operator).

WEIGHTS & MEASURES

Switch must be in the CALIBRATION position to enter or
change data.

FACTORY

Read only (can not be changed by operator).
