SECTION 6 - OPERATING INSTRUCTIONS
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE .
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving and power has been shut-off.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS .

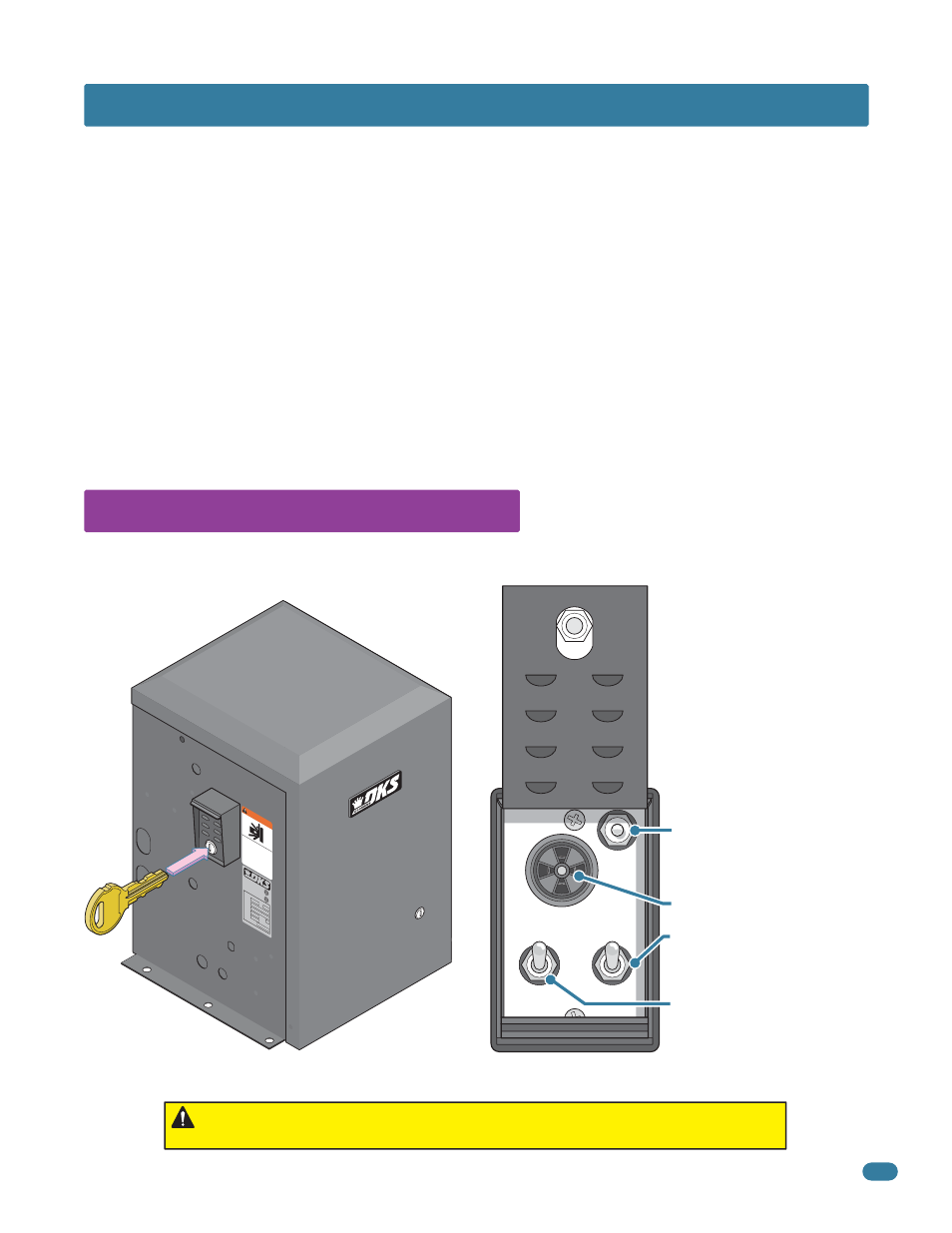

Unlock the power switch cover and open to access
the Main Power, and the operator Reset switch.
AC
POWER
OFF
DC
POWER
OFF
RESET
6.1 AC Power and Reset Switch
Reset Button - Used to turn off the
entrapment alarm and to reset the
operator after a HARD shutdown
has occurred.
Alarm Siren
AC Power Switch - Powers the
operator ON (toggle up) or
OFF (toggle down).
DC Power Switch - Turns the DC
system power ON (toggle up) or
OFF (toggle down).
This switch is only installed on
model 9150 operators with the DC
convenience open system installed.
IMPORTANT SAFETY INSTRUCTIONS
Every time the 9150 is powered up, the First open command will automatically run “Multiple
gate cycles” that will locate and remember the gate’s open and close positions (See page 25).
Important: The operator
WILL NOT lose its open
and close limit positions
after pressing the reset
button.
