Note: The 5-pin terminal can be unplugged
from circuit board for easy wire connections.
All inputs are normally open (NO).
5-Pin UL 325 Terminal
Secondary Entrapment Protection
Device Connection
115 VAC Convenience
Outlets
Secondary Entrapment Protection Devices:
In addition to the inherent reversing sensor system, the Model 9150 has a 5-pin UL 325 terminal for the connection of photo sensors-Type B1
and reversing edges-Type B2 secondary entrapment protection devices required by UL 325 standards. Entrapment protection devices must
be installed to reduce the risk of injury. Install these devices where the risk of entrapment or obstruction exists while the gate is moving.

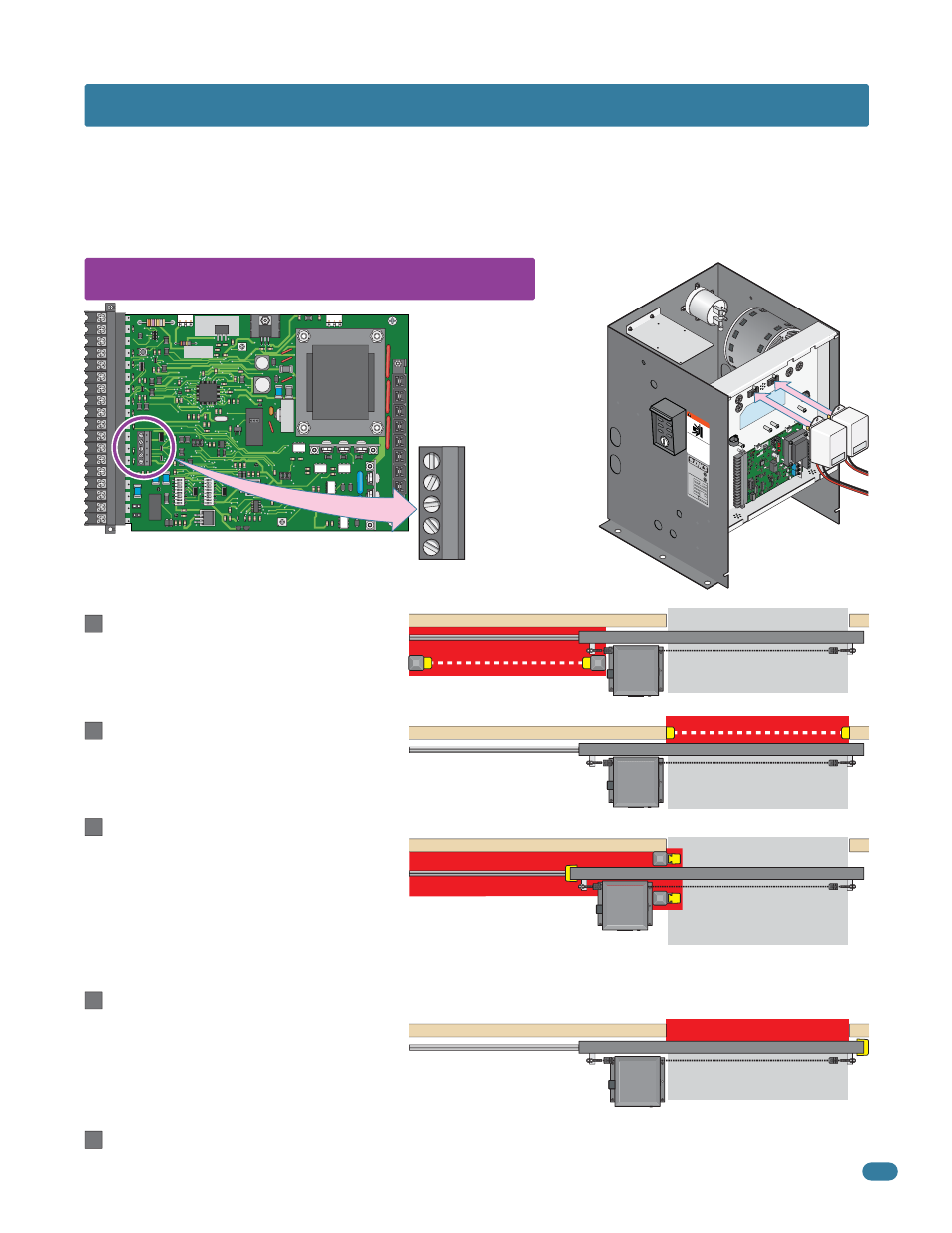

The Model 9150 offers numerous options to meet your specific needs. The next 2 pages show wiring and typical positioning of the entrapment
protection devices but specific installations will vary.
OPEN Entrapment Sensor
CLOSE Entrapment Sensor
OPEN Contact Sensor
CLOSE Contact Sensor
Low Voltage Common
SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION
4.1 UL 325 Terminal Description
Closed Gate
Wall / Fence
Opening-Direction Photo Beam
Wall / Fence
Filler Post if necessary
Gate Support Post if Installed
Closed Gate
Wall / Fence
Closing-Direction Photo Beam
Closed Gate
Wall / Fence
CLOSE Entrapment Sensor (Photo Sensor):
Obstructed
closing-direction photo beam will stop the gate during the
closing-direction only. Gate will resume the close cycle
when the obstructed photo beam has been cleared.
Closed Gate
Low Voltage Common:
Common terminal for all the secondary entrapment protection device inputs.
CLOSE Contact Sensor (Reversing Edge):
Obstructed closing-direction reversing edge will stop, then reverse the gate to the open position, during the
closing-direction only.
•
After the gate reverses to the open position, the timer will
automatically close the gate (if it is turned on). If the
closing-direction reverse edge is activated a second time prior to the gate reaching the
close position, the operator will stop and enter a soft shutdown condition (See page 36).
•
When the closing-direction reversing edge gets obstructed and the gate is traveling back to the open
position and the opening-direction revering edge gets obstructed, the gate will stop and enter a soft shutdown condition (See page 36).
1
2
3
4
5
OPEN Entrapment Sensor (Photo Sensor):
Obstructed
opening-direction photo beam will stop the gate during the
opening-direction only. Gate will resume the open cycle
when the obstructed photo beam has been cleared.
OPEN Contact Sensor (Reversing Edge(s)):
Obstructed opening-direction reversing edge(s) will stop, then reverse the gate to the close position during the
opening-direction only.
•
After the gate reverses to the full close position, any
opening input will cycle the gate again. Note: If the gate is
opening by a time clock and an opening-direction reversing
edge gets obstructed, the gate will return to the closed
position and another input (automatic exit loop, reverse loop. etc.) is needed to cycle the gate open
again.
•
When the opening-direction reversing edge(s) gets obstructed and the gate is traveling back to the close position and
the
closing-direction reversing edge gets obstructed, the gate will stop and enter a soft shutdown condition (See page 36).
Opening-Direction Reversing Edges
Closing-Direction Reverse Edge
Entrapment Area
Entrapment Area
Entrapment Area
Entrapment Area
