9150-065-S-9-11 16
2.5”

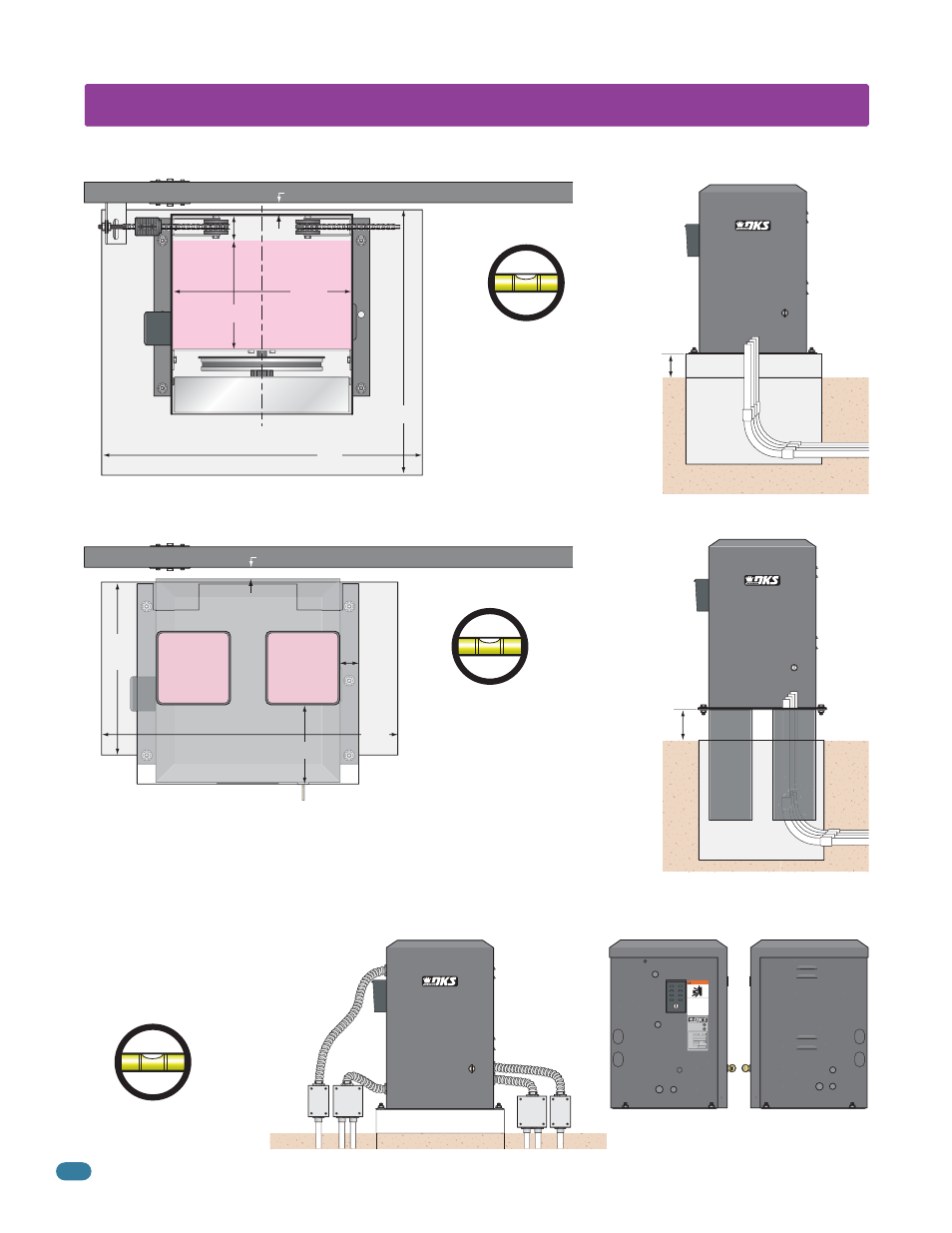

1.6 Pad, Post or Ceiling Mount without/with J-Box Setup
Post Mount with Conduit
Pad Mount with Conduit
21.5”
26”
Concrete Pad
Center
Concrete Pad
Concrete Foundation Conduit
4” min. above ground.
4” min. above ground.
Underground depth of the
concrete pad is determined
by soil conditions and local
building codes. Reinforced
concrete recommended.
Underground depth of the
concrete foundation is
determined by soil
conditions and local
building codes. Reinforced
concrete recommended.
Concrete pad
MUST be level.
Base Plate
MUST be level.
Operator MUST
be level.
Pad, Post or Ceiling Mount Connected with Junction Boxes
All wire connections can be
made on either side of the
operator housing after it
has been installed.
Never run high
voltage and low
voltage in the
same conduit.
Conduit Knock-Out Sizes
Low
Volt High
Volt
Note: Weld the posts to the base plate and mount
assembly into concrete BEFORE attaching the
operator. Conduit runs up through 6 x 6 steel posts.
Note: Operator must be mounted
1” min. away from gate.
Low
Volt High
Volt
Conduit Conduit
Pad, post or
ceiling mount
Conduit
14.5”
Conduit Area
Electronic Box
8.5”
1” minimum from operator housing to gate.
Conduit area
inside 6 x 6
post.
Conduit area
inside 6 x 6
post.
Base Plate
P/N 2600-495
14”
Min.
Concrete Foundation
24”
Min.
6.5”
1” minimum from operator housing to gate.
1.5”
WARNING
MOVING GATE CAN CAUSE
Operate gate only when gate area is in sight
and free of people and obstructions.
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions. SERIOUS INJURY OR DEATH
CLASS
CERTIFIED TO CAN/CSA C22.2 NO. 247
CONFORMS TO ANSI/UL-325
VEHICULAR GATE OPERATOR HP
53382
MODEL SERIAL VOLTS PHASE AMPS 60 Hz MAX GATE LOAD DoorKing, Inc., Inglewood, CA
1/2
1/2
1/2
1/2
1/2
3/4 3/4
Fail Secure
Key Lock
