Controlled Products Systems Group 9150-080 - Manual (Page 10)

9150-065-S-9-11 8

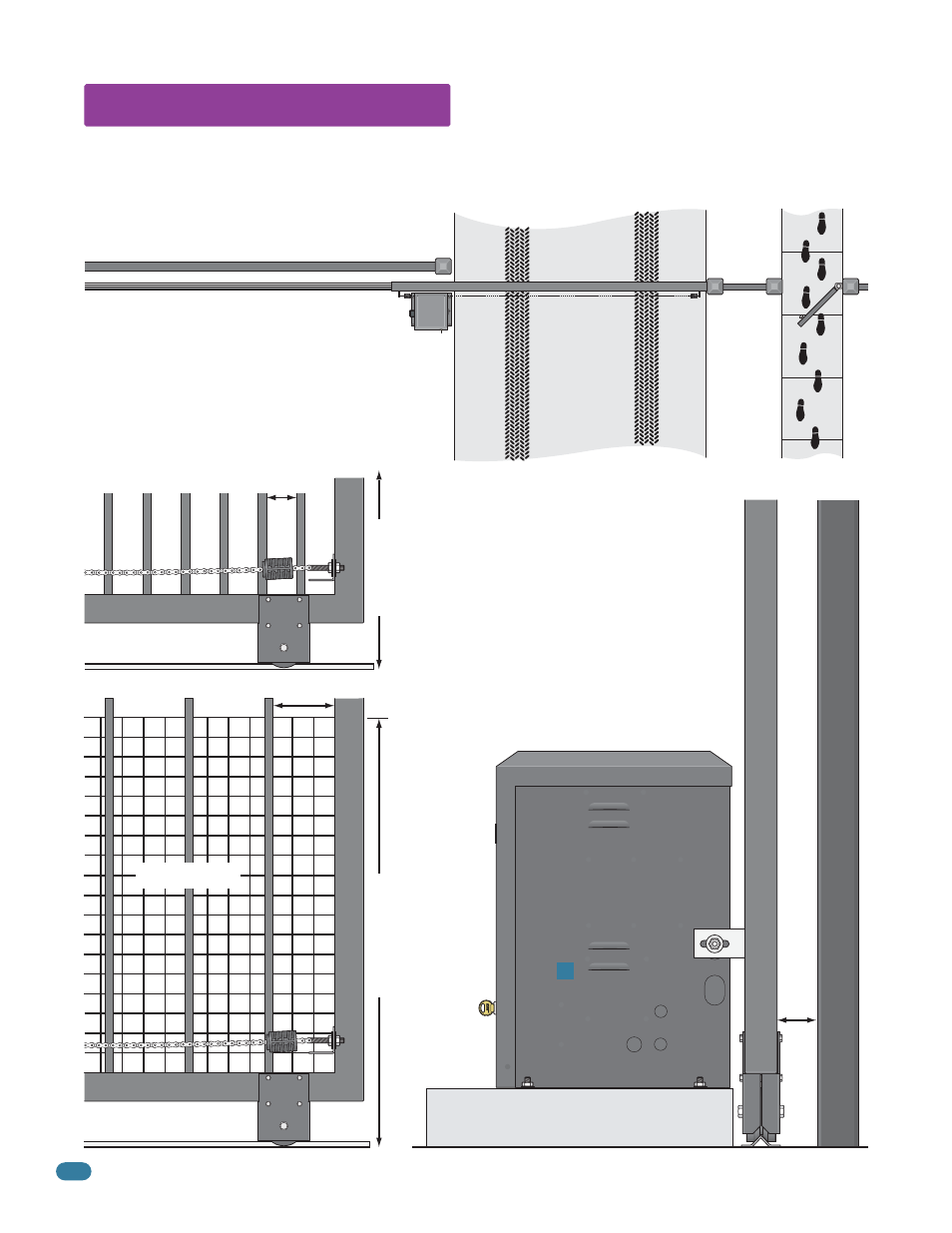

Slide Gate Requirements
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
(ref. UL 325 56.8.4.b)
All openings of a horizontal slide gate are
guarded or screened from the bottom of the gate to a
minimum of six (6) feet (1.83 m) above the ground to
prevent a 2 1/4 inch (57.2 mm) diameter sphere from
passing through the openings anywhere in the gate
and in that portion of the adjacent fence that the gate
covers in the open position.
(ref. ASTM F2200-11a, 6.1.2)
Note: A filler post or barrier
may need to be installed in the
gap area to reduce the distance
to 2 1/4 inches or less.
A contact sensor should be
installed in this area for
safety.
(See
on next page).
A gap, measured in the horizontal
plane parallel to the roadway, between
a fixed stationary object nearest the
roadway (such as a gate support post)
and the gate frame when the gate is in
either the fully open position or the
fully closed position, shall not exceed
2 1/4 inch (57.2 mm).
(ref. ASTM F2200 6.1.4)
Closed Gate
2 1/4” maximum gap area
High Risk of Entrapment Area
High Risk of Entrapment Area X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X
X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X
X X X
Adjacent fence that covers open gate position.
Gate Support Post
Gate Frame
A
Note: Install
screened wire
mesh to a
non-compliant
gate AND
non-compliant
adjacent fence
that covers
open gate
position
(See above).
X X X X X X X X X X X X X X X X X X X X
72” (6 ft) minimum
6 ft minimum
Non-compliant openings wider than 2 1/4”.
Less than 2 1/4”
Screened Wire Mesh
Compliant openings less than 2 1/4”.
Gate Frame and Adjacent Fence Area
Gate Frame and Adjacent Fence Area
