Additional hardware required. Post base plate (P/N 2600-495) 6 x 6 steel posts not available from DoorKing. Endless idler
assembly (P/N 2600-818). Additional chain #40 (P/N 2600-442 - 20 ft. per box). Gate end retainer (P/N 1204-004).

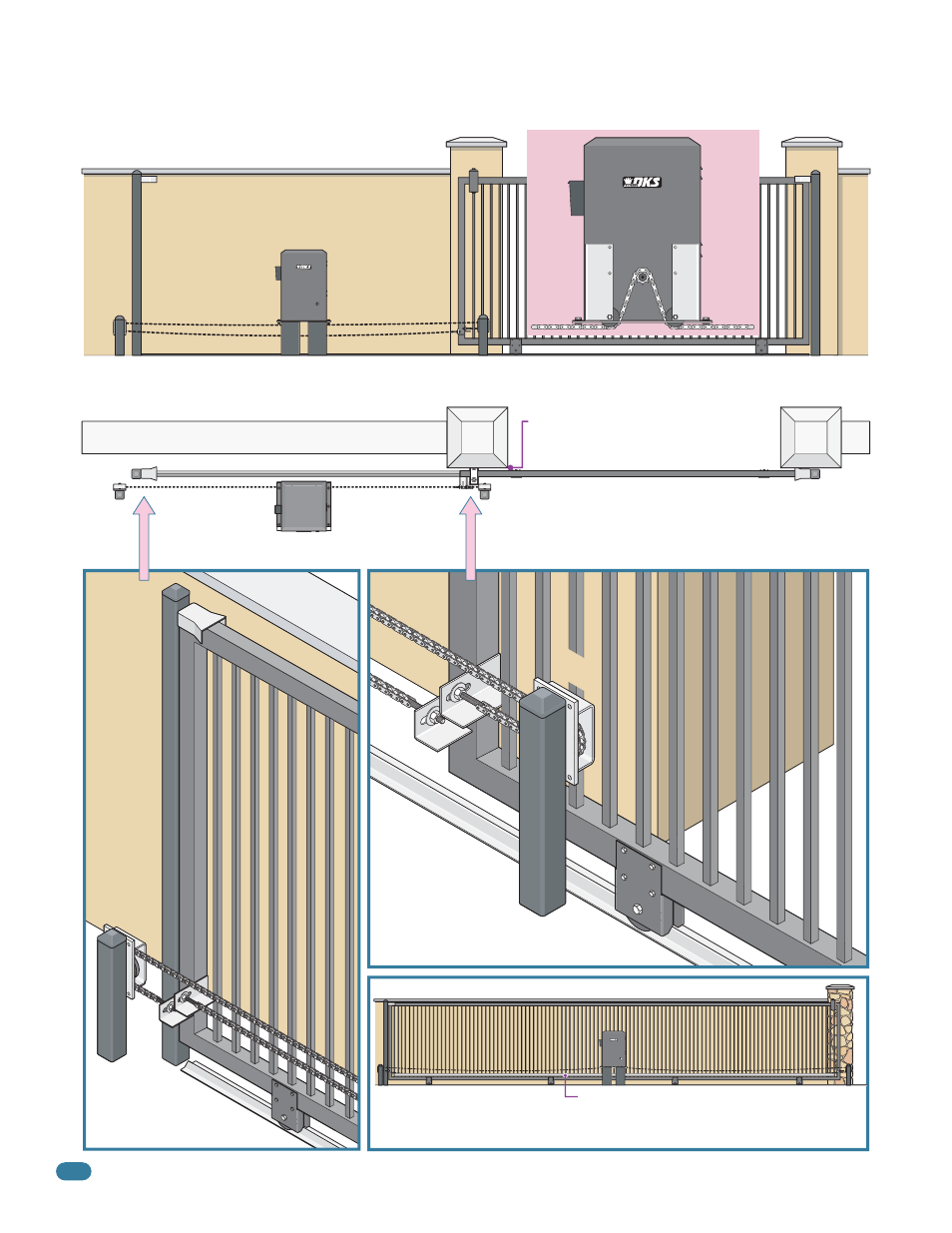

Gate shown in open position.
• Set operator chain idler wheels in the
bottom position.
• DO NOT remove chain knockouts.
Gate in Close Position
Endless
Idler
Chain Idler
Wheels
Gate End
Retainer
End Post
Endless
Idler
Gate in Open Position
Top View
Center Position with Post Mount
Hides the chain from outside the property looking in. Optional chain tray
kit can be used and is recommended for gates over 20 ft, supports the chain’s weight and helps prevent chain “stretching”.
See page 19 for more information.
Note: Chain stops CANNOT be used for this installation.
End post with a gate end retainer must be installed as the
physical stop if gate does not have any other means of a
physical stop in the open and close position.
A filler post or barrier may need to be
installed between the gate and wall area
(See page 8 for more information).
Optional chain tray kit (P/N 2601-270) can
be used and is recommended for gates over
20 ft, see page 19 for more information.
Optional Chain Tray Kit
for Long Gates
See page 18 for
more information
about endless idlers.
