9150-065-S-9-11 20
2.1 High Voltage Wire Runs
This table illustrates the high voltage wire size and distance requirements.
Model - Motor Voltage - Motor HP - Motor Amps
Wire Size / Distance in Feet
170 275 460 685
85 135 230 340
12 AWG 10 AWG 8 AWG 6 AWG
Single 9150 - 115 VAC - 1/2 HP - 5.4 Amps
Dual 9150s - 115 VAC - 1/2 HP - 5.4 Amps each, Single Power Source
685 1100 1830 2750
342 550 915 1375
Single 9150 - 208/230 VAC - 1/2 HP - 2.8 Amps
Dual 9150s - 208/230 VAC - 1/2 HP - 2.8 Amps each, Single Power Source
Single 9150 - 460 VAC - 1/2 HP - 1.35 Amps
Dual 9150s - 460 VAC - 1/2 HP - 1.35 Amps each, Single Power Source
Single 9150 - 115 VAC - 1 HP - 9.7 Amps
Dual 9150s - 115 VAC - 1 HP - 9.7 Amps each, Single Power Source
Single 9150 - 208/230 VAC - 1 HP - 5.0 Amps
Dual 9150s - 208/230 VAC - 1 HP - 5.0 Amps each, Single Power Source
Single 9150 - 460 VAC - 1 HP - 2.5 Amps
Dual 9150s - 460 VAC - 1 HP - 2.5 Amps each, Single Power Source
2875 4600 7665 11,500
1437 2300 3832 5750
100 170 280 520
50 85 140 260
380 650 1100 1600
190 325 550 800
1500 2500 4000 6500
750 1250 2000 3250
SECTION 2 - AC POWER TO OPERATOR(S)
Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the operator (both high and low voltage) complies with local
code requirements.
THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!
If power wiring is greater than the maximum distance shown, it is recommended that a service feeder be installed. When large
gauge wire is used, a separate junction box must be installed for the operator connection. The wire table is based on stranded
copper wire. Wire run calculations are based on a AC power source with a 3% voltage drop on the power line, plus an additional
10% reduction in distance to allow for other losses in the system.
Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.

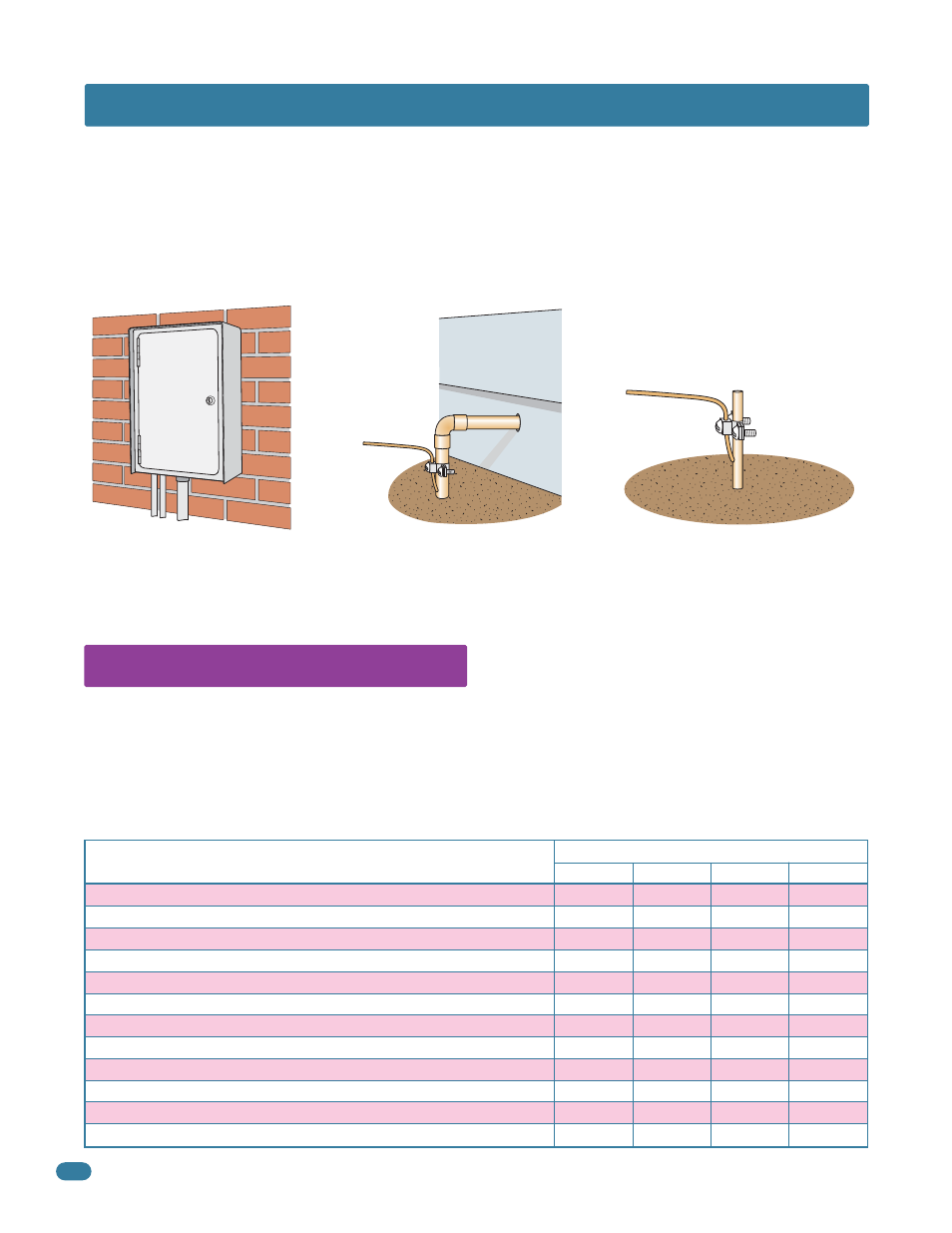

Typical Grounding Sources
Ground to metallic cold water pipe.
Ground
Wire
Ground
Wire
Ground to existing electrical system.
Electrical
Panel
Grounding rod 10 feet in soil.
IMPORTANT: Ground wire shown without
safety protection for clarity. Make sure
ground wire is protected from being
touched or electrical shock could occur!
