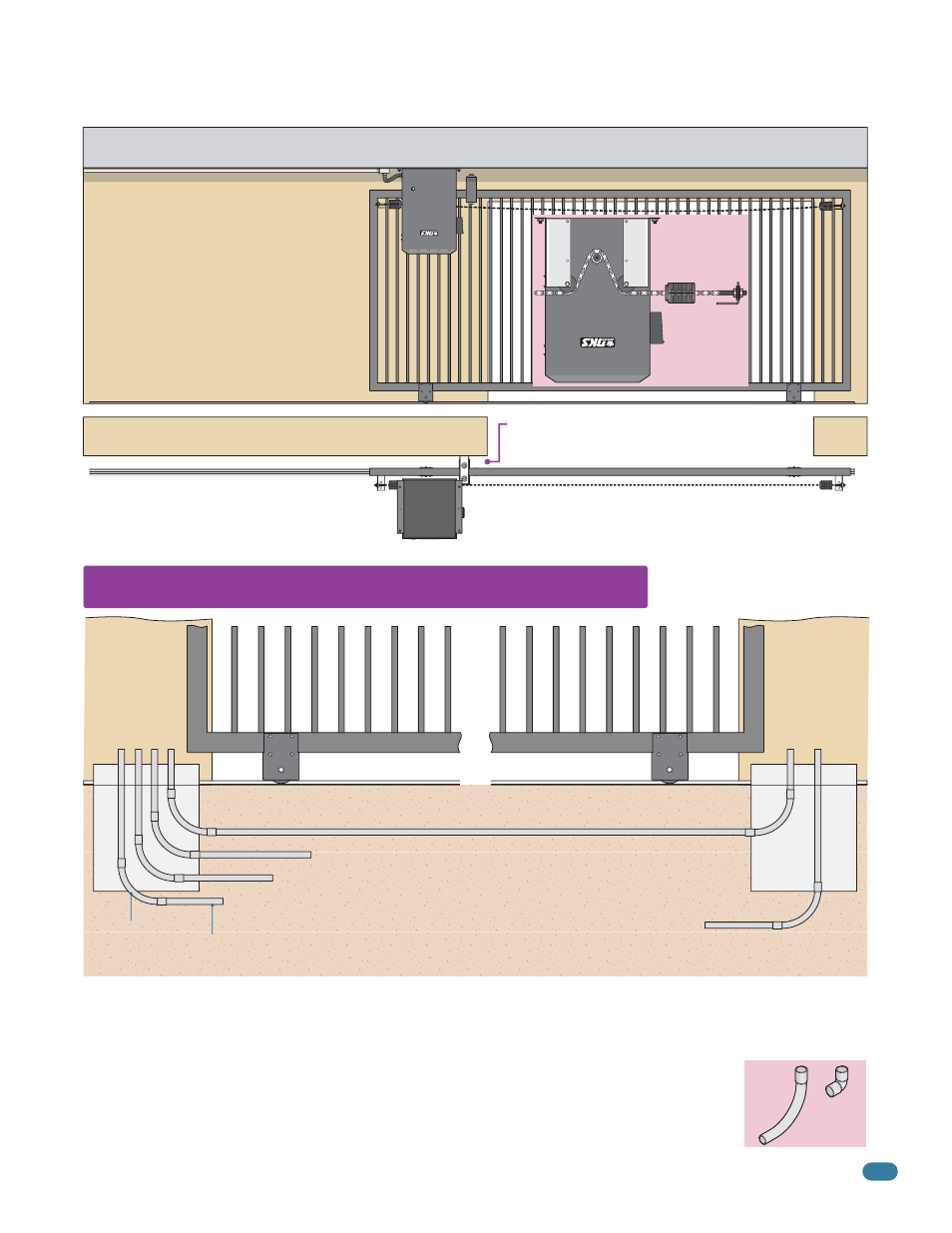

1.5 Underground Conduit Requirements
• Operator’s setup is the same as the front
position or rear position with concrete pad
shown on page 12 and 13.
(Front upside down position shown here).
• Junction box connection is used for the
ceiling mount installation.
Front or Rear Position Upside Down
Can be mounted on the ceiling to conserve floor space.
Note: There are NO fluids in the
operator that can leak out.
Chain
Stop
Ceiling
Chain Idler
Wheels
Operator
Bottom
Top View
Chain Setup
A filler post or barrier may need to be
installed between the gate and wall area
(See page 8 for more information).
Sweeps
Concrete
Pad
Primary
Operator
Position
Secondary
Operator
Position
• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those
applications where a secondary operator may be used). The conduit requirements for your application may vary from
this depending on your specific needs.
• Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very difficult and can cause
damage to wire insulation.
• DoorKing recommends using 3/4-inch conduit.
• Be sure that all conduits are installed in accordance with local codes.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
Elbow
NO
Sweep
YES
Control and/or P.A.M.S. Wires (Low Voltage wire insulation)
DoorKing’s Primary/Secondary Interconnection Cable (Dual Operator Application Only)
(Secondary Power and Communication wires)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
3/4 Inch Conduit Recommended
