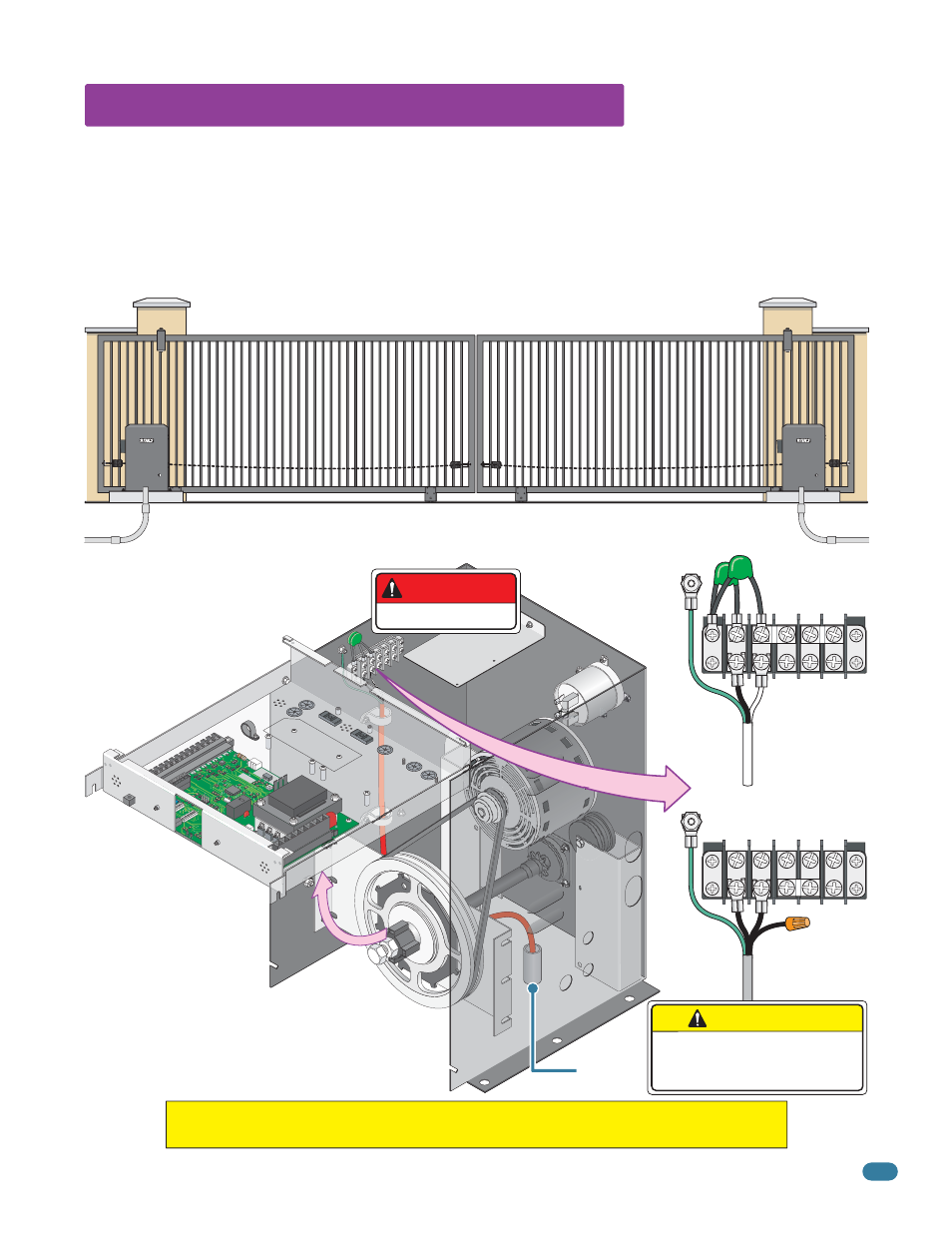

2.2 High Voltage Terminal Connection
Use the existing wire restrainers
inside operator to keep wire
away from moving parts.
115 VAC
Chassis Ground
White - Neutral
Black - 115 VAC Hot
Green - Chassis
Ground
DANGER
HIGH VOLTAGE
High
Voltage
Conduit
• Route incoming AC power wire through the high voltage conduit and run wire in the operator as shown.
• Be sure wiring is installed in accordance with local codes. Be sure to color code all wiring.
• It is recommended that a surge suppressor be installed on the high voltage power lines to help protect the operator
and circuit board from surges and power fluctuations.
• Dual operators (Primary/Secondary) require AC power to each operator.
Hot Neu
Loosen the 2 nuts
under the electronic box
to swing box up.
DO NOT power up and cycle the operator
until the “Physical stops” have been installed.
Damage could occur to the gate and
operator.
208/230/460 VAC
Chassis Ground
Use only two legs
of the incoming
3-phase power.
Hot Hot
High Voltage
AC Input Wire
High Voltage
AC Input Wire
MOV - Helps
protect operator
from power surges.
AC Power AC Power
Dual Operators
Every time the 9150 is powered up, the First open command will automatically run “Multiple
gate cycles” that will locate and remember the gate’s open and close positions (See page 25).
CAUTION
Do not connect AC power wire to
terminal until verifying operator
actually is 208, 230 or 460 VAC.
