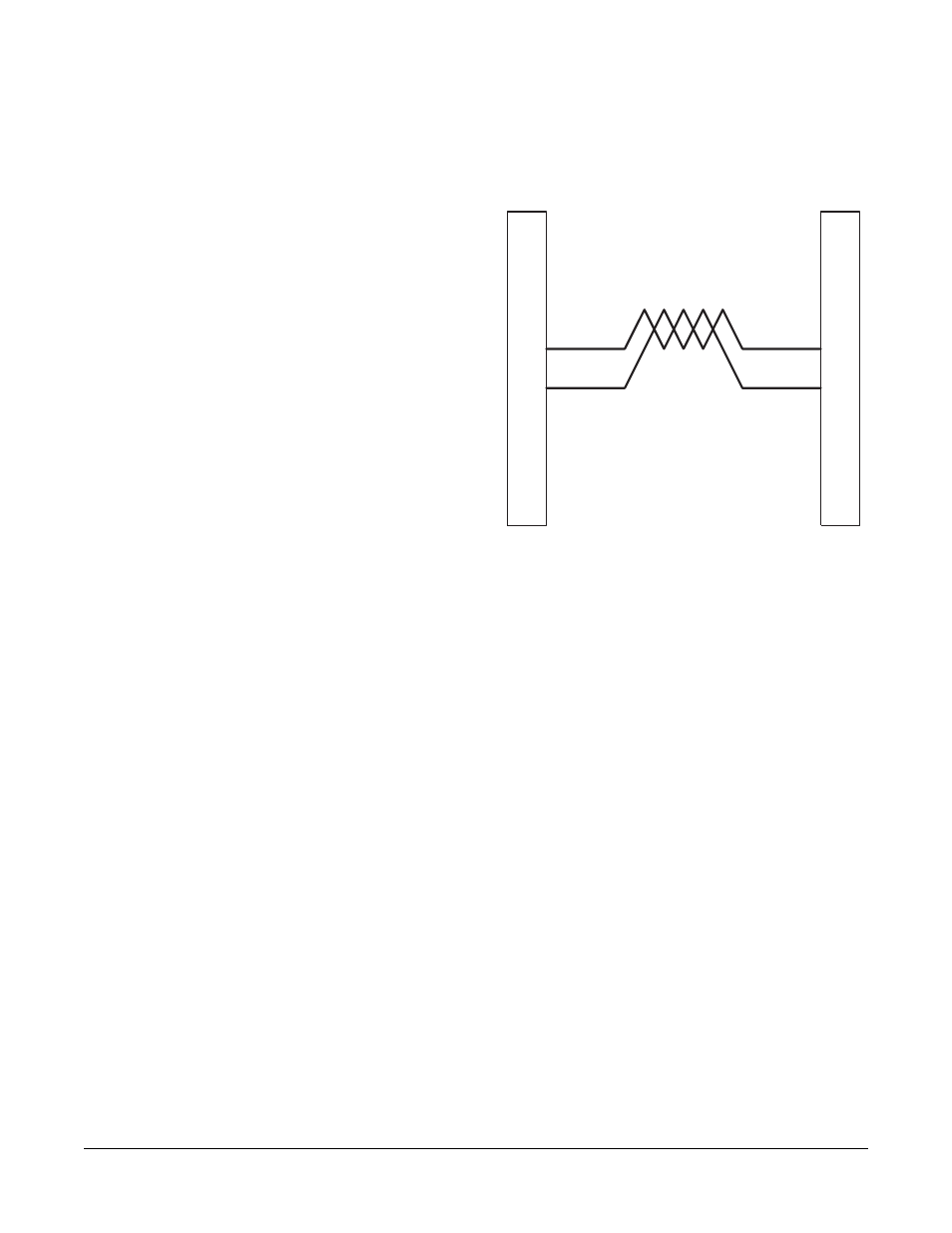

Figure 7-5: Wiring from the Matrix to a Digital Panel Using RJ-45
Note: This wiring diagram refers to the Dig-2 unit only.
WIRING CPU CARD INTERFACES
The central processor unit (CPU) card holds the circuitry for
connecting to, and communicating with, the following interfaces:
• An external personal computer
• Alarm inputs and outputs
• Eight general purpose inputs (GPIs)
• Eight general purpose outputs (GPOs or relays)
• Two separate local area network (LAN) connections for
Ethernet-based communication with a network
• An external GPI/RLY interface
Pair 2
Pair 1
Pair 3
Pair 4
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Matrix Frame End
ATT-T568B (Modular Jumpers Wired One to One)
Panel End
No Connection (NC)
No Connection (NC)
No Connection (NC)
Multiplexed Data/Audio
Multiplexed Data/Audio
No Connection (NC)
No Connection (NC)
No Connection (NC)
