Frame Data LED

The red “status” light illuminates to indicate a failure in communication
between the fiber card and the CPU card.

FIBER CARD REAR PANEL LIGHTS AND CONNEC-
TIONS

The fiber card rear card contains a single power supply indicator LED
and two fiber connectors.

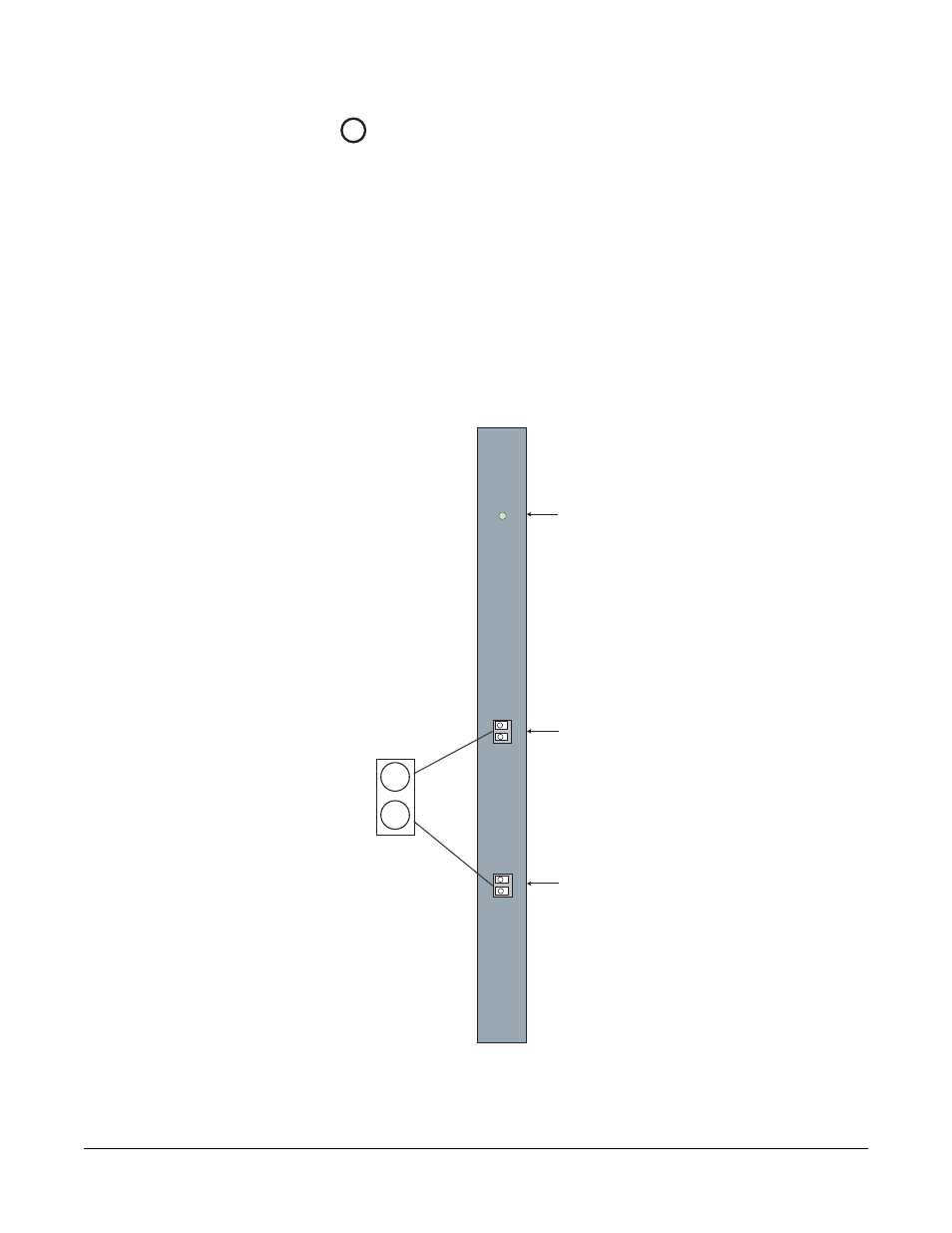

Figure 3-2: Rear Fiber Card

+3.3V

When lit, +3.3 V power supply is on

TXVRB

TXVRA

Secondary Fiber Port

Primary Fiber Port

NOTE

Primary and Secondary
Fiber ports are reversed
with respect to the front
panel indicators.
Take care when unplugging
the cables to unplug the
correct cable.

Class 1 Laser Product

Transceiver
Lasers
