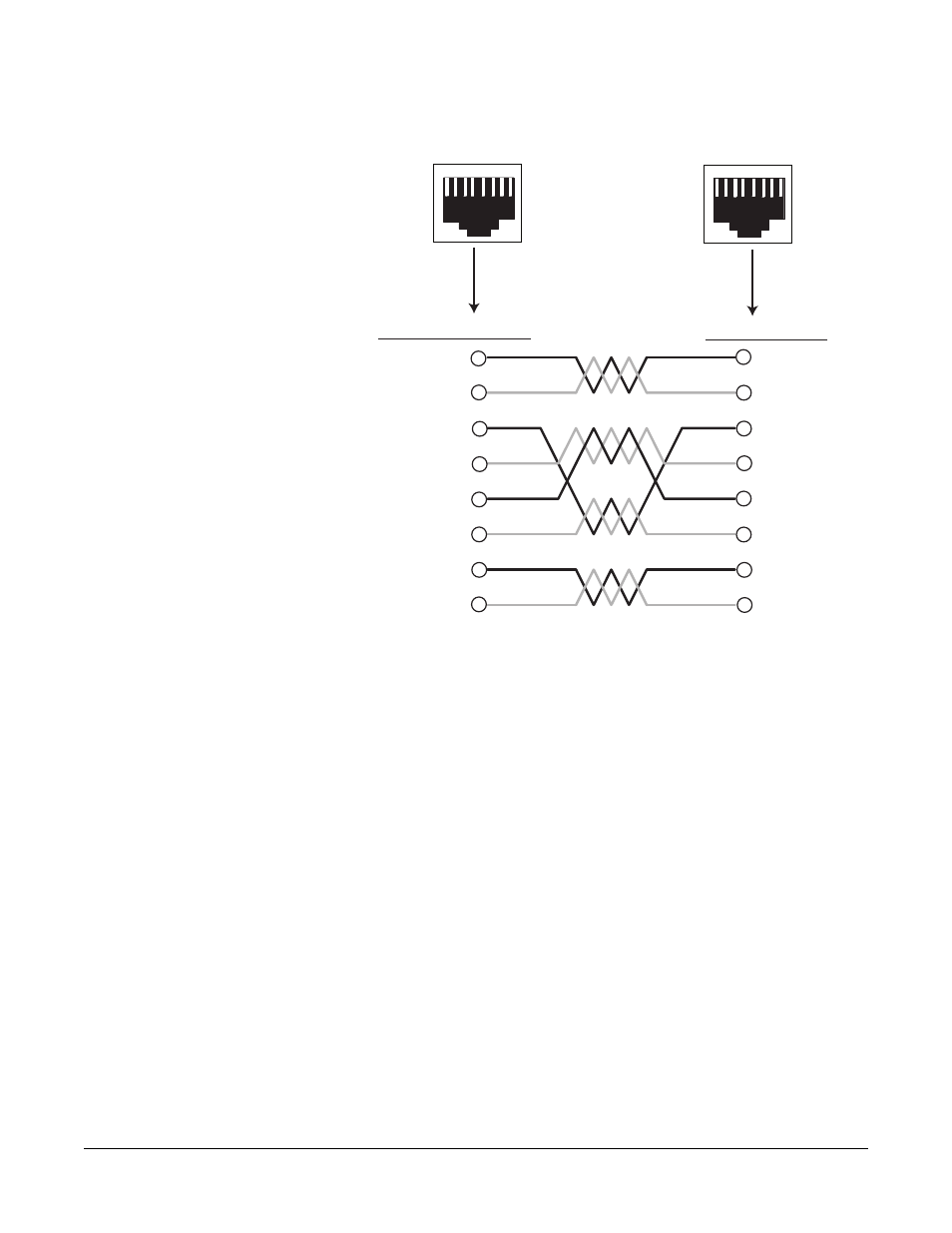

Figure 7-4: Wiring from the Matrix to an Analog Panel Using RJ-45
Single-Pair Digital
Single-pair digital wiring is accomplished with double-shielded 24
AWG conductor CAT-6E enhanced STP cable. Pair 1 transmits and
receives multiplexed digital and analog between the matrix and the
panel.
Note: Ensure that the “select” switch on the rear of the panel is in
the correct position for the intended use.
RJ-45 CONNECTOR
AT MATRIX PORT RJ-45 CONNECTOR ON
PANEL OR INTERFACE
Matrix Frame RJ-45 Pin Numbers
Shielded category-5 cables wired pin-to-pin
Panel RJ-45 Pin Numbers
Pair 2
Pair 1
Pair 3
Pair 4
RS-422 Input +
(into Matrix)
RS-422 Input –
(into Matrix)
Audio Input +
(into Matrix)
Audio Output +
(from Matrix)
Audio Output –
(from Matrix)
Audio Input –
(into Matrix)
RS-422 Output +
(from Matrix)
RS-422 Output –
(from Matrix)
1
2
3
5
6
7
1
2
6
7
8
4
3
4
5
8
RS-422 Output +
(from panel)
RS-422 Output –
(from panel)
Audio Output +
(from panel)
Audio Input +
(into panel)
Audio Input –
(into panel)
Audio Output –
(from panel)
RS-422 Input +
(into panel)
RS-422 Input –
(into panel)
Pair 1 Audio output from Matrix to panel
Pair 2 RS-422 data input from panel to Matrix
Pair 3 Audio input from panel to Matrix
Pair 4 RS-422 data output from Matrix to panel
8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1
Views from
front of
connectors
