E-QUE CARD REAR CONNECTIONS

The E-QUE rear card contains eleven RJ45 connectors; 8 E1/T1 ports,
2 DECT sync ports and a LAN port.

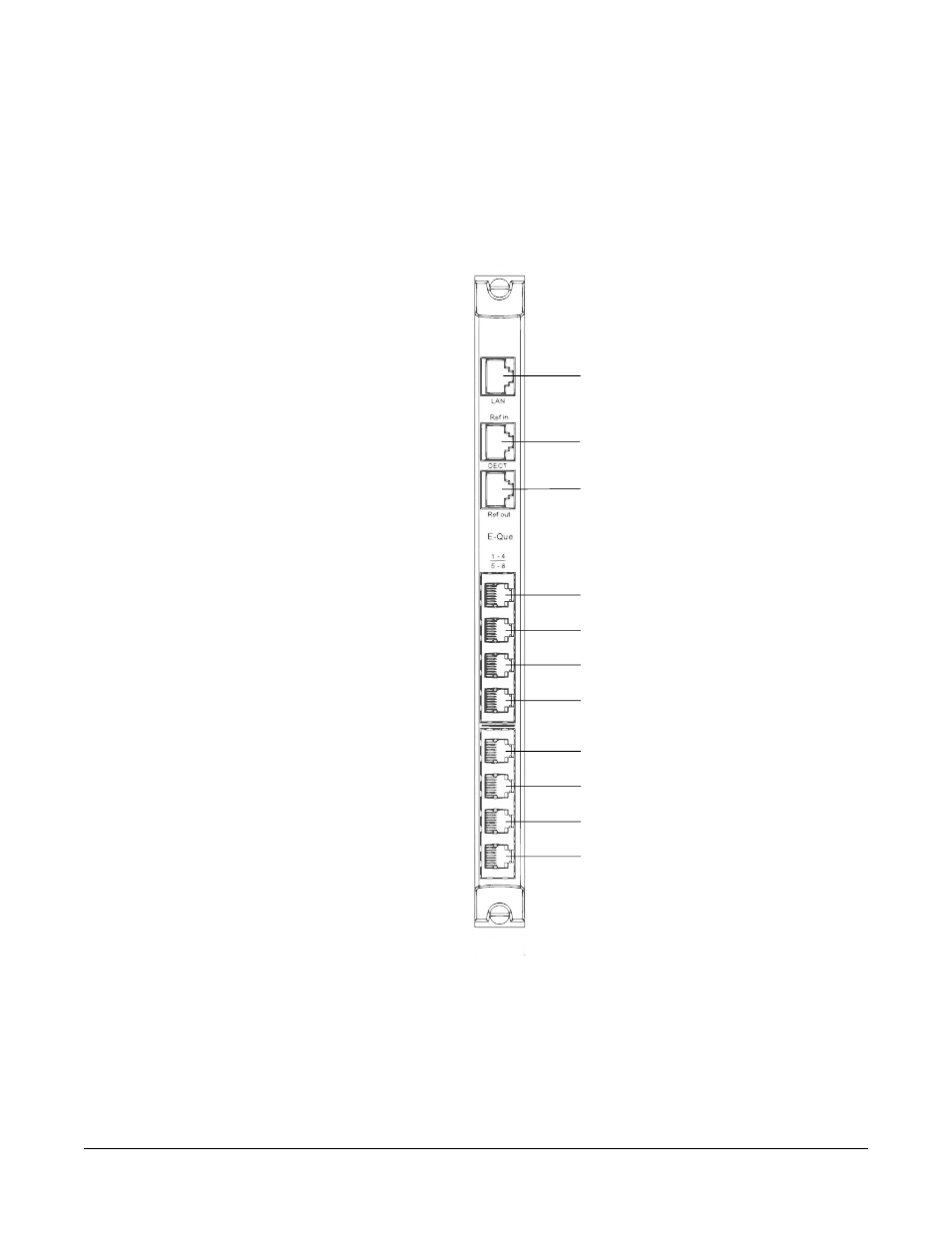

Figure 4-2: E-QUE Card Rear

When multiple E-QUE cards are fitted in a rack, one of the cards
generates a clock signal, which all other cards lock to, to ensure that
all antennas remain in sync. The system is designed such that the
leftmost card (seen from the front) is always the one which generates

LAN Port (RJ-45)

DECT Ref in (RJ-45)

DECT Ref out (RJ-45)

E1/T1 Port 1 (RJ-45)

E1/T1 Port 2 (RJ-45)

E1/T1 Port 3 (RJ-45)

E1/T1 Port 4 (RJ-45)

E1 /T1 Port 5 (RJ-45)

E1/T1 Port 6 (RJ-45)

E1/T1 Port 7 (RJ-45)

E1/T1 Port 8 (RJ-45)
