-47- -18-
5. If several windows need to be protected, remove the self-contained wired
supplied and adopt the wire according to the specifications as mentioned
below. This should be wired to the terminal block provided in the battery
compartment in series connection.
The wired contact should be connected using two core (24AWG) wire of
maximum length 1.5m.
A cable entry cut-out is available and adjacent to the terminal block.
6. Refit the battery cover.

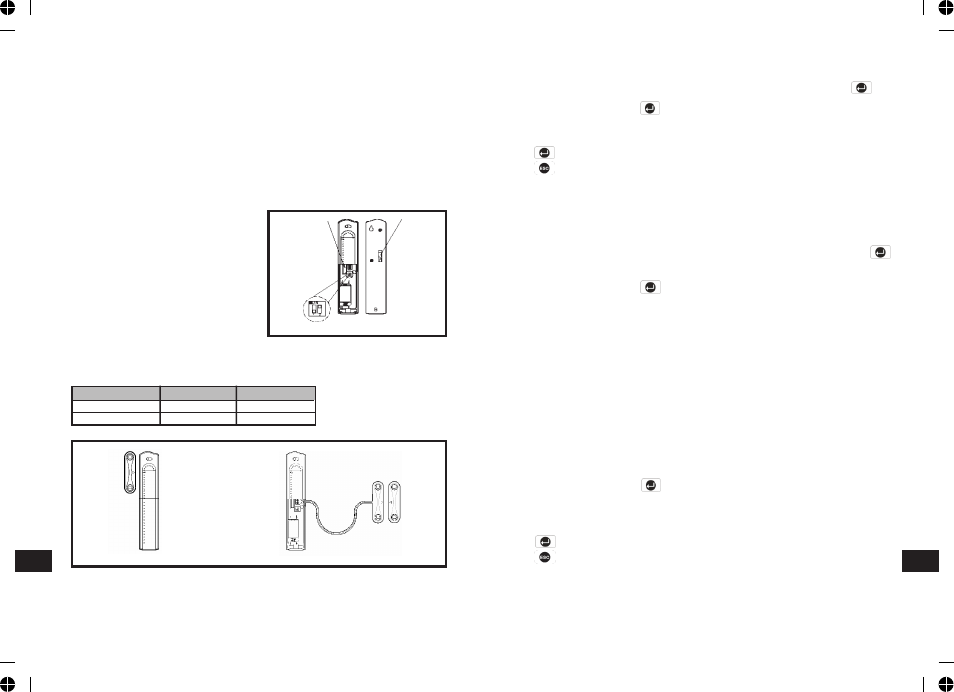

SETTING THE MAGNETIC CONTACT DETECTORS
1. Located on the PCB of the Detector is a
two-position DIP switch (SW2).
2. DIP switches 1-2 are used to enable/disable the internal or external wired
magnetic contact. (FIGURE 3)
Tamper Switch
DIP-switch (SW2)
Tamper Switch
On/Off Selection DIP1 of SW2 DIP 2 of SW2
ON Internal on External on
OFF Internal off External off
Internal connection External wired connection
Default setting: 6
Scroll through the menu until ‘:3 One Call Ring’ is displayed and press .
To change the setting press .
Enter the required number of ring (2-9).
Press to save and exit, or
Press to exit without saving.
INTERVAL OF RING FOR DOUBLE CALL
The interval of ring in each country vary greatly. Always add extra 2s to your
countries’ interval of ring.
Default setting: 13s
Scroll through the menu until ‘:4 Double Call Time’ is displayed and press
The current setting will also be displayed.
To change the setting press
Enter the required interval of ring (5s-15s).
Note: The duration of dialing the second call will vary depending on the interval
of ring you enter.
Enter 5s, it becomes 6-20s.
Enter 13s, it becomes 14-28s.
Enter 15s, it becomes 16-30s.
DIAL METHOD
This feature enables the telephone dialer to be configured for type of exchange
it is connected to.
Default setting: Tone/DTMF
Scroll through the menu until ‘4-4 Dial Method Setup’ is displayed. The
current setting will also be displayed.
To change the setting press .
Scroll through available options, (Tone/DTMF and Pulse), until the required
setting is displayed and then
Press to save and exit, or
Press to exit without saving.
EN EN
