30
Additional FMR functions
Typ 8750
11.4.1. change the process set-point value
procedure:
1. Set the set-point value default on the setting level:
In the main menu (MAIN), select the F.CONTROL function
F.CONTROL ENTER SETUP ENTER SP-INPUT intern
SELEC
→
Use the MENU EXIT key (press 4 x) to return to the process level.
2. On the process level, manually change the process set-point
value:
→
Use the arrow keys to select the
display for the process set-point value (SP).
MENU PV PV (t) INPUT
sp 30.0
m3/min
→
Press MENU INPUT key.
→
Enter the process set-point value (see image below).
ESC + <- OK
SET VALUE
sp:
[m3/min]
70.0
+
070. 0
Accept set value
Return without change
Change by one position to the left
Increase number
Changeable number

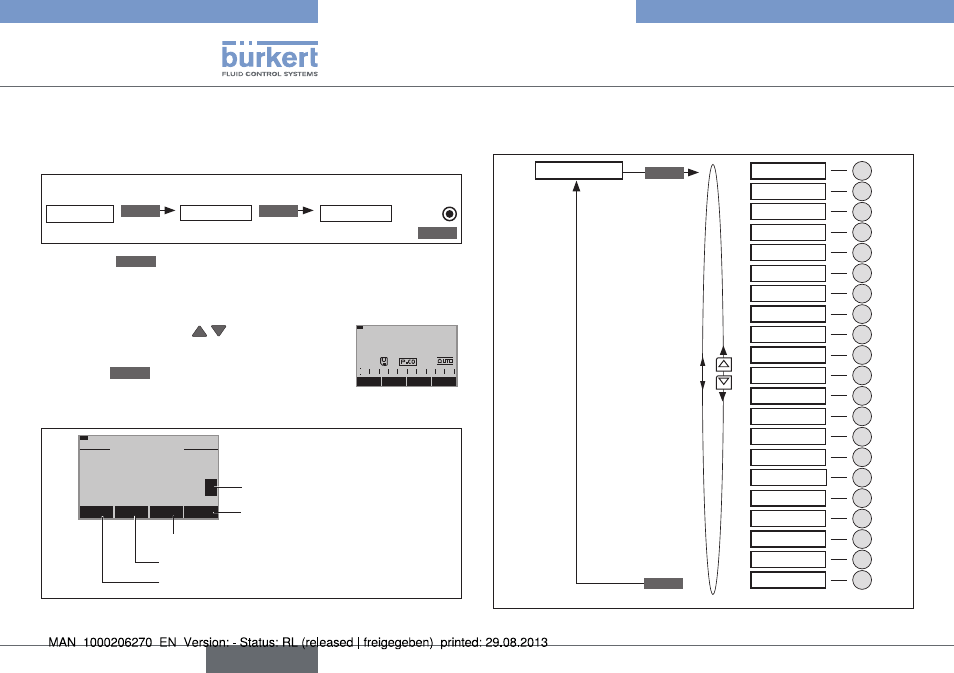

Fig. 17: Enter values
12. addiTional fmr funcTions
Overview
CHARACT
CUTOFF
DIR.CMD
DIR.ACT
SPLTRNG 14)
X.LIMIT
X.TIME
X.CONTROL
F.CONTROL
SECURITY
SAFEPOS
SIG.ERROR
BINARY.IN
OUTPUT
CAL.USER
SET.FACTORY
SER. I/O
EXTRAS
SERVICE
SIMULATION
DIAGNOSE
ADD.FUNCTION
EXIT
ENTER 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Fig. 18: Overview of FMR auxiliary functions
english
