Burkert Type 8750 - Manual (Page 11)

11
Technical data
Typ 8750
Dimensions
2x DN 6x DN
L
∅ 91
∅ E
HG

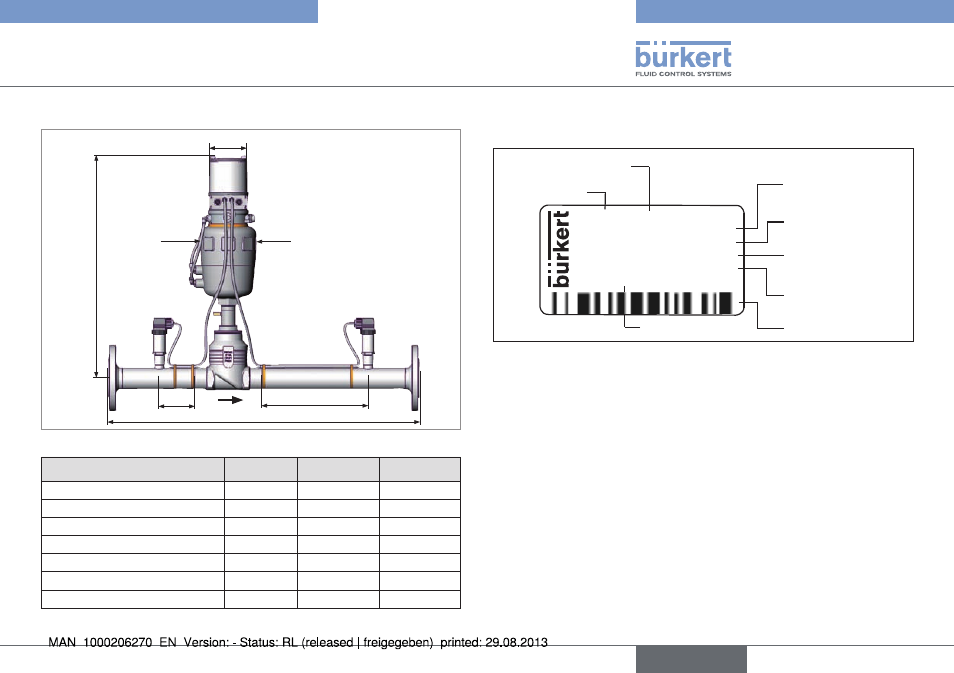

Fig. 6: Dimensions
dn pipe connection [mm] l [mm] hG [mm] ∅ e [mm]
15 330 414 101
25 500 412 101
40 700 501 127
50 800 538 157
65 1000 567 157
80 1200 637 261
100 1400 647 261
Tab. 1: Dimensions
7.5. Type label
Example:
8750 24 V DC
single act Pilot 0,6
Pmax 7 bar
Tamb 0°C - +55°C
S/N 001000
00179026
D-74653
Ingelfingen
W14UN
ce
Identification number
Operating voltage /
control
Maximum pressure
Type
Control function
Pilot valve
Bar code
Serial number,
CE symbol
Max. ambient
temperature
Fig. 7: Example of type label
7.6. fluidic data
Control medium neutral gases, air
Quality classes as per DIN ISO 8573-1
Dust content Class 5: max. particle size 40 μm,
max. particle density 10 mg/m 3
Water content Class 3: max. pressure dew point -20 °C or
min. 10 °C below the lowest operating
temperature
Oil content Class 5: max. 25 mg/m 3
english
