7
Technical data
Type 2301
B
P
A
Normally open by spring action.
I
P
A
Actuating function via reciprocal pressurization.
6.2.2. flow direction below the seat
Depending on the version, the valve is closed against the medium
flow with spring force (control function A, CFA) or with pilot pressure
(control function B or I, CFB or CFI).
As the medium pressure is under the control cone, this pressure con-
tributes to the opening of the valve.
Warning!
medium may be discharged if minimum pilot pressure is too
low or medium pressure too high!
If the minimum pilot pressure is too low for CFB and CFI or the
permitted medium pressure is exceeded, leaks may occur.
• Observe minimum pilot pressure.
• Do not exceed medium pressure (see chapter “Pressure ranges”).
CFA CFB / CFI

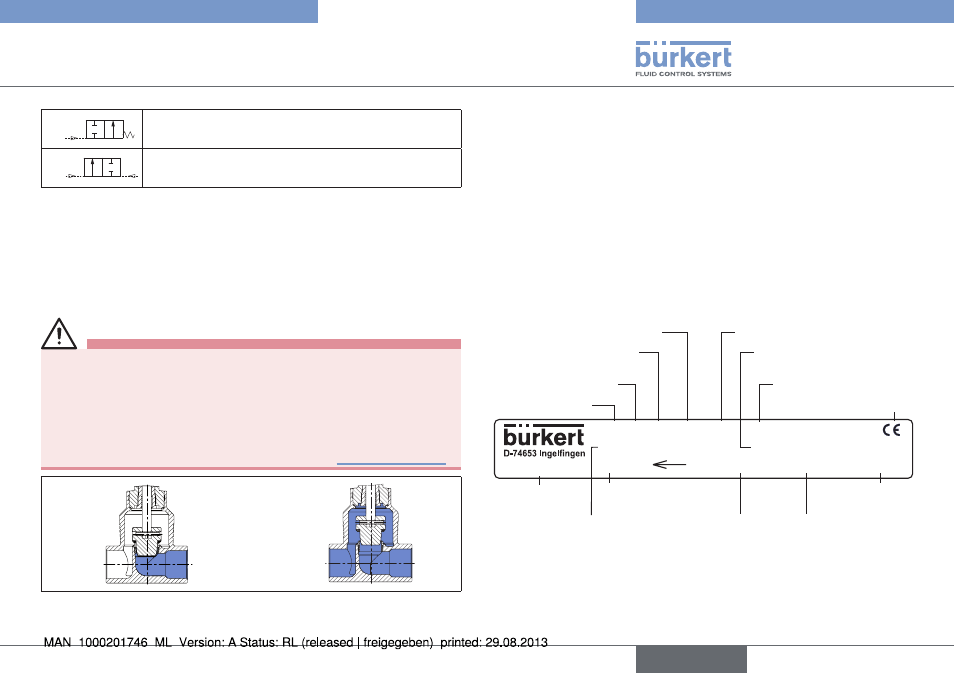

Fig. 1: Flow direction below the seat
(Rest open/closed, closing against medium)
7. Technical DaTa
7.1. conformity
In accordance with the EC Declaration of conformity, Type 2301 ist
compliant with the EC Directives.
7.2. standards
The applied standards, which verify conformity with the EC Directives,
can be found on the EC-Type Examination Certificate and / or the EC
Declaration of Conformity.
7.3. Type label
00189145
2301 A 25M PTFE VA
Tmed -10°C - +185°C
Flow 1 2
Pilot 5,5-7bar
Pmed 16,0bar
W3ZLT G1" Kvs12,0
CE identification
Permitted pilot pressure
Permitted medium pressure
Type
Control function (CF)
Orifice of the seat /
actuator size
Sealing material Body material
Identification
number
Flow direction
Permitted medium
temperature
Date of
manufacture
Main dimensions of
line connection
Flow capacity in standard
production conditions
