Functions
Create
d
by EBCCW
0
0
:06
21 5114899

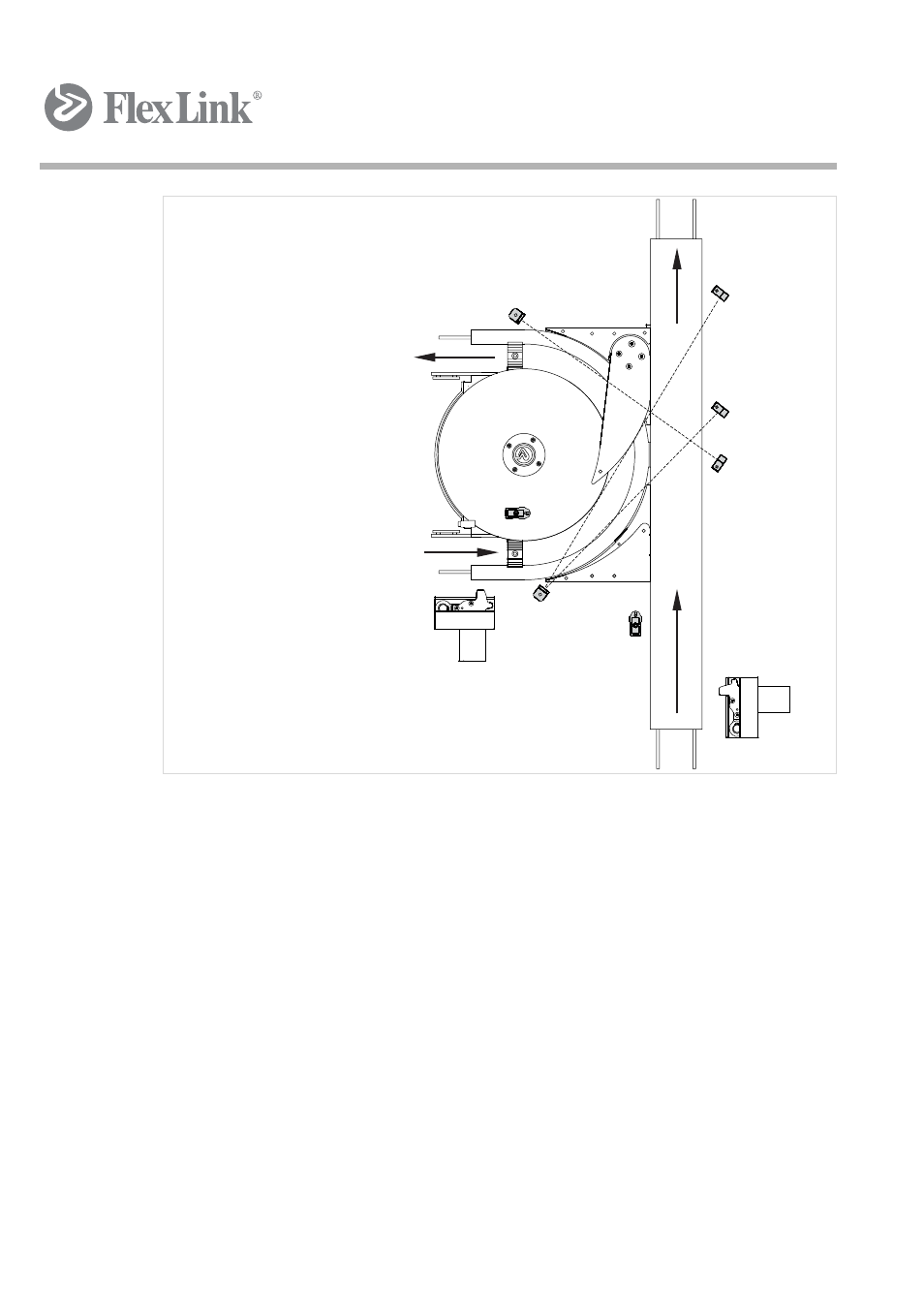

Figure 6 XKUT 90 C
Principle of operation
Merging a satellite pallet:
A pallet on Satellite (M) is approaching. Sensor B2 is activated which actu-
ates stop A2 which stops the pallet, if function is occupied. Sensor B3, B4
and B5 supervise the function area. If all three sensors gives low signal the
area is empty.
Sensor B8 and B9 indicates if the stop is activated or not.
Diverting pallet to satellite:
A pallet on Highway is approaching. Sensor B1 is activated which actuates
stop A1 which stops the pallet, if function is occupied.
Sensor B3, B4 and B5 supervise the function area. If all three sensors
gives low signal the area is empty.
Sensor B6 and B7 indicates if the stop is activated or not.
B3
B4
A1
B6
B7
B1
A2
B8
B9
A3 B10
B11
B5
B2
Initiators
B1 Pre-stop highway
B2 Pre-stop satellite
B3, B4 and B5 Sensing pallet route
B6 and B7 position of stop arm, highway
B8 and B9 position of stop arm, satellite
B10 and B11 position of diverter arm.
Actuators
Interfaces
A1 and A2 Pre-stop. Single acting
A3 Arm. Double acting
B1-B11 M12-connector, 3-pin
A1 Ø 6 mm pneumatic hose
A2 Ø 6 mm pneumatic hose
A3 Ø 6 mm pneumatic hose
RFID 4-pin (Asi)
