Functions

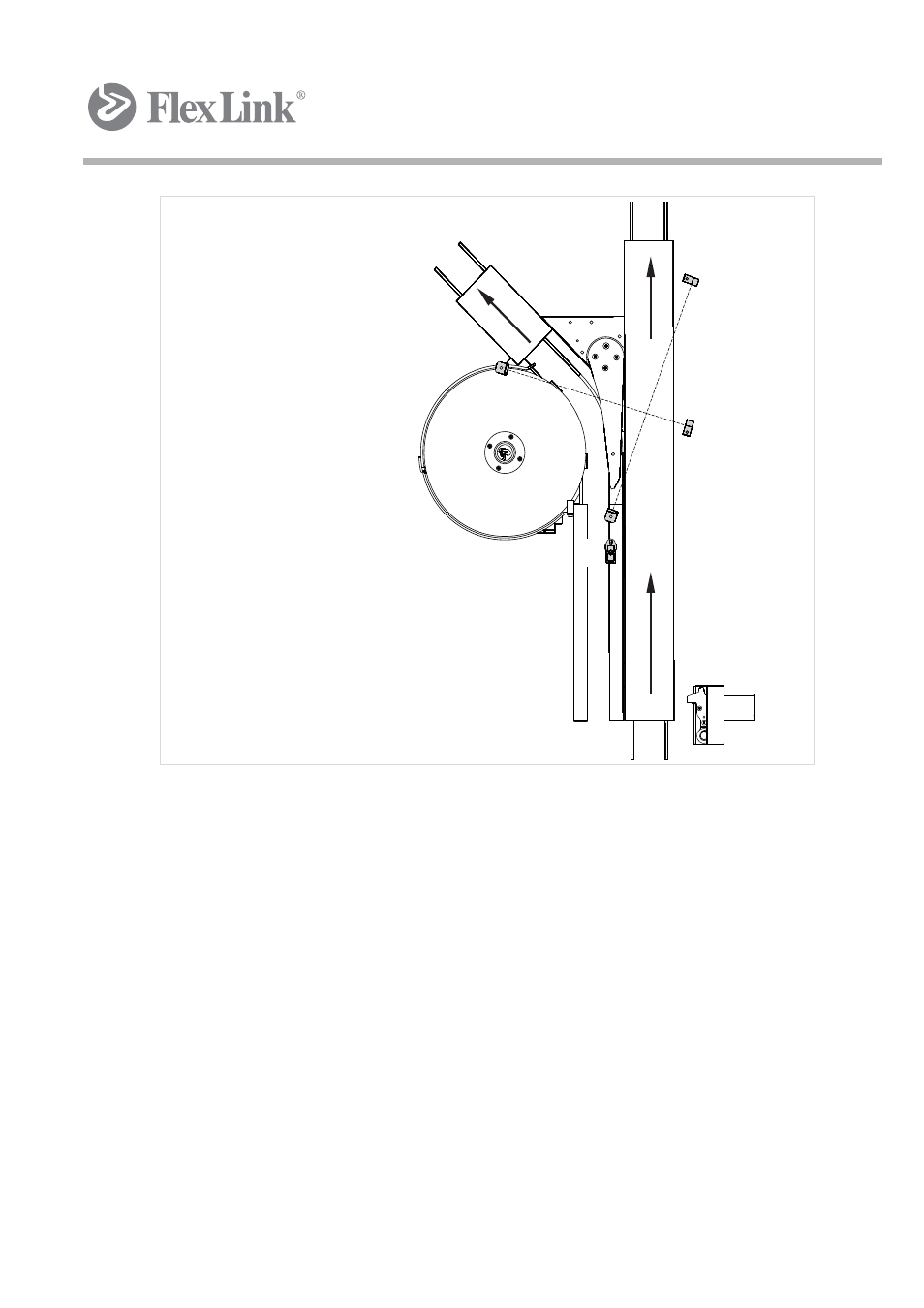

Figure 3 XKUT 45 D (also valid for XKUT 90 D)
Principle of operation
Diverting pallet to satellite:
A pallet on Highway is approaching. Sensor B1 is activated which actuates
stop A1 which stops the pallet, if function is occupied.
Sensor B2 and B3 supervise the function area. If both sensors gives low
signal the area is empty.
Sensor B4 and B5 indicates if the stop is activated or not.
Straight passing through:
A pallet on Highway is approaching. The pallet activates sensor B1 which
actuates stop A1which stops the pallet if function is occupied.
Sensor B2 and B3 supervise the function area. If both sensors gives low
signal the area is empty.
Sensor B4 and B5 indicates if the stop is activated or not.
B3
A1
B4
B5
B2
B1
A2 B6
B7
Initiators
B1 Pre-stop highway
B2 and B3 sensing pallet route
B4 and B5 position of stop arm
B6 and B7 position of diverter arm
Actuators
Interfaces
A1 Pre-stop. Single acting
A2 Arm. Double acting
B1-B7 M12-connector, 3-pin
RFID 4-pin (Asi)
A1 Ø 6 mm pneumatic hose
A2 Ø 6 mm pneumatic hose
