3.3 Function description for Divert and Merge
modules 45°
The combiner function gives the opportunity to split and join highway to sat-
ellite/ satellite to highway flows in a fully controlled way. The function is
equipped with all needed parts to setup and run it, including set of sensors
(not mandatory), RFID read/write head (not mandatory), fasteners and
pneumatic actuators.
Excluded parts:
• Chain
• Slide rails for chain and guide rails
• Tubes for pneumatic circuit
• Pallets
• Cables (for sensors), RFID r/w head
• Valves for pneumatics
3.3.1 Combined Diverter/Mergers
A Combined diverter/merger is used to create a sub line for example to
guide pucks out and in on a satellite conveyor from the main conveyor.
This function has the behaviour from both the diverter and the merger. The
prioritized order can be predetermined or decided dynamically from a line
controller.

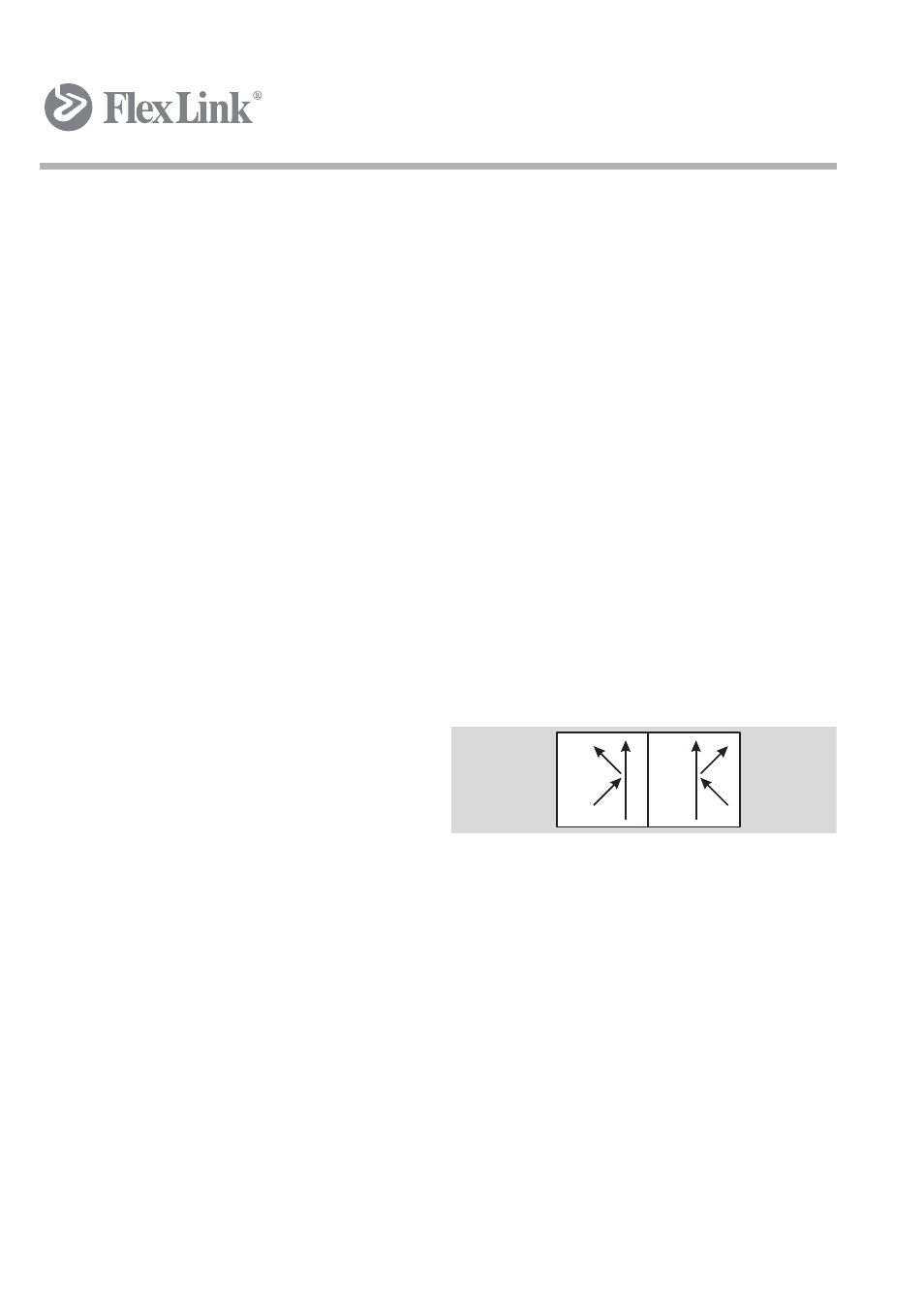

There are two variants of the 45° Combined Diverter/Merger.
• Combined Diverter/Merger, 45°, Left
• Combined Diverter/Merger, 45°, Right
CR
45°
CL
45°
