Functions
Create
d
by EBCCW
0
0
:06
15 5114899

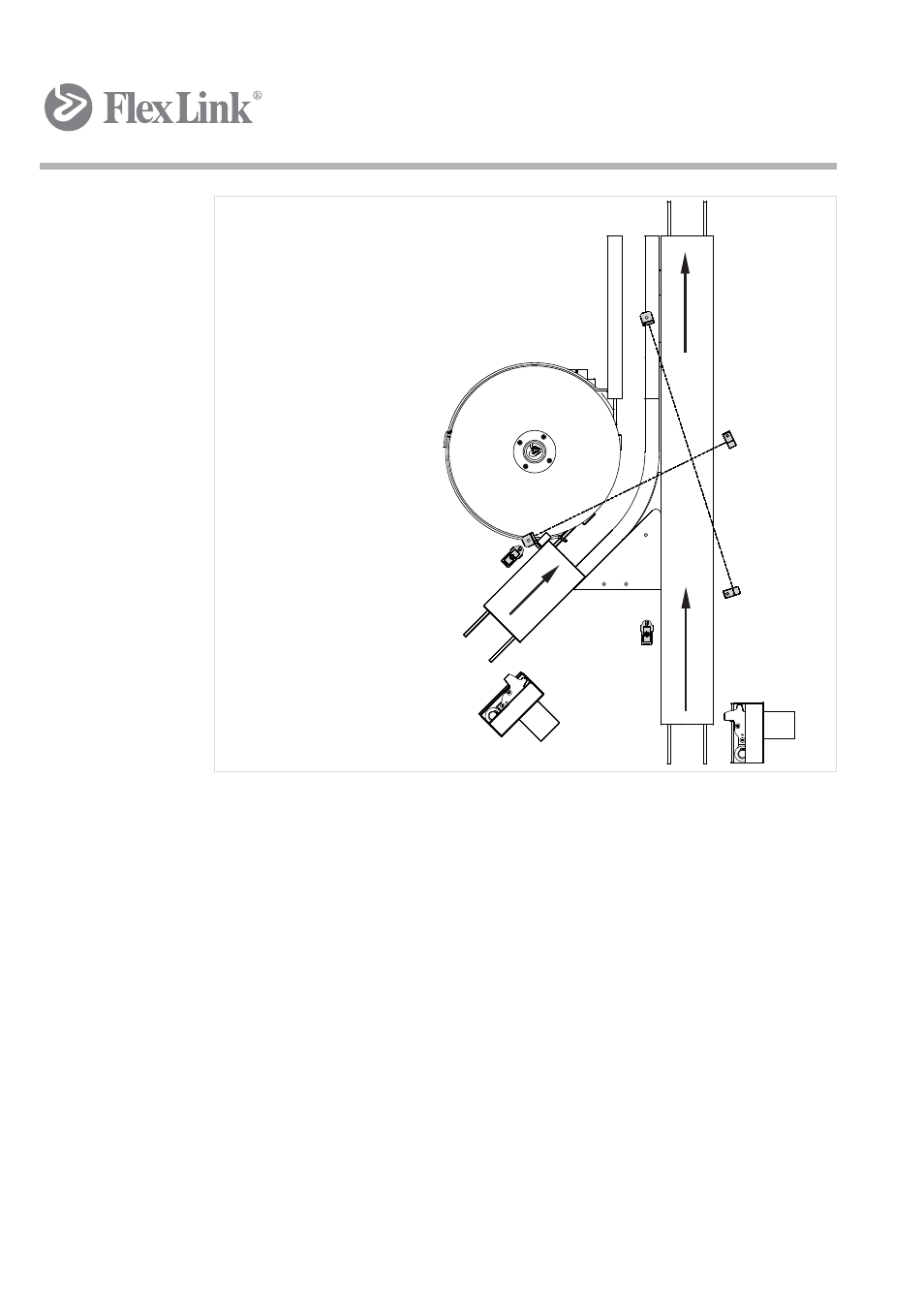

Figure 4 XKUT 45 M (also valid for XKUT 90 M)
Principle of operation
Merging a satellite pallet
A pallet on Satellite is approaching. Sensor B2 is activated which actuates
stop A2 which stops the pallet, if function is occupied.
Sensor B3 and B4 supervise the function area. If both sensors gives low
signal the area is empty.
Sensor B7 and B8 indicates if the stop is activated or not.
Straight passing through:
A pallet on Highway is approaching. The pallet activates sensor B1 which
actuates stop A1 which stops the pallet if function is occupied.
Sensor B3 and B4 supervise the function area. If both sensors gives low
signal the area is empty.
Sensor B5 and B6 indicates if the stop is activated or not.
B3
B4
B2
B1
A1
B5
B6
A2
B7
B8
Initiators
B1 Pre-stop highway
B2 Pre-stop satellite
B3 and B4 Sensing pallet route
B5 and B6 position of stop arm, highway
B7 and B8 position of stop arm, satellite
Actuators
Interfaces
A1 Pre-stop. Single acting
A2 Pre-stop. Single acting
B1-B8 M12-connector, 3-pin
A1 Ø 6 mm pneumatic hose
A2 Ø 6 mm pneumatic hose
