51 52
Configuration
• MaxShutter: Sets the upper limit of the shutter speed when AutoShutter
is selected.
• FixedShutter: Sets the shutter speed when FixedShutter is selected.
6.17.3 Gain Mode
Select gain mode and adjust gain settings.
• Gain Mode: Select AutoGain or FixedGain.
• MaxGain (dB): Select the maximum gain value when AutoGain is selected.
• FixedGain (dB): Select the gain value when FixedGain is selected.
6.17.4 Day/Night Mode
Configure color settings for night mode.
Configuration
• Click Save to save setting changes.
• Click Reset to revert to the last saved changes.
• Click Factory Setting to revert all camera sensor settings to factory
defaults.
• Click Cancel to exit.
TIP: Hold the mouse over the tabs to see the full name of the tab.

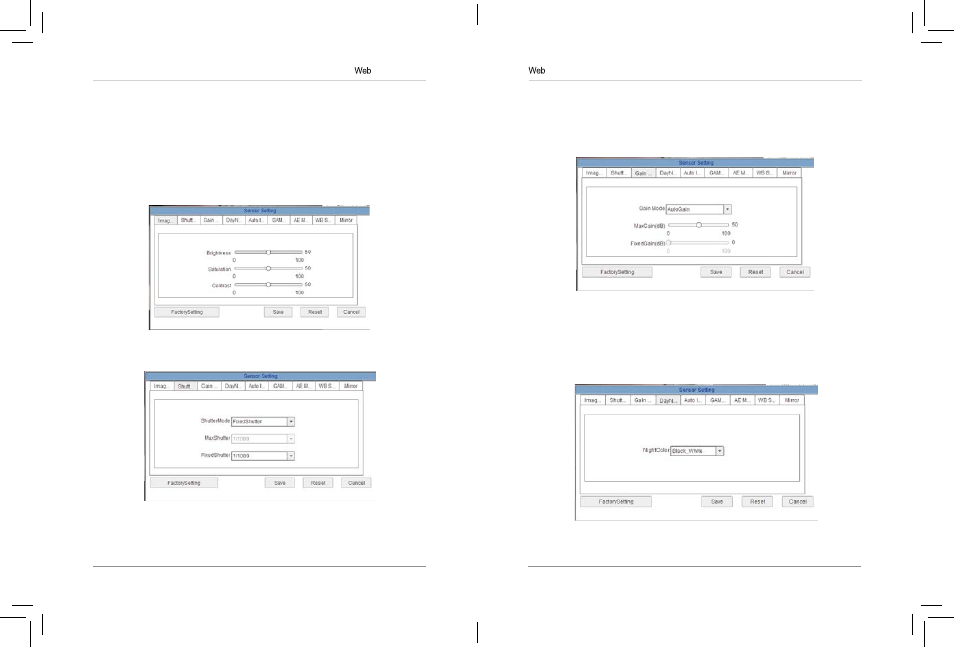

6.17.1 Image Adjust
Adjust the Brightness, Saturation, and Contrast settings for the image.
6.17.2 Shutter Control
Adjust the camera shutter settings.
• ShutterMode: Select AutoShutter or FixedShutter.
