INTRODUCTION

Congratulations on your purchase of this product.

This User Guide suits

LIC120SHP

product. We adopt the

latest SONY technical of sensor and driver. The most at-
tractive characteristics are small and easy hidden, suits
the elevator and corridor. In addition, it owns the charac-
ters of high definition and stability, strong anti-jamming,
rich and real color. Fixing and using this model are con-
venient too. It is very good for you to apply to your CCTV
system.

Please read this instruction manual carefully to en-

sure proper use of the product.

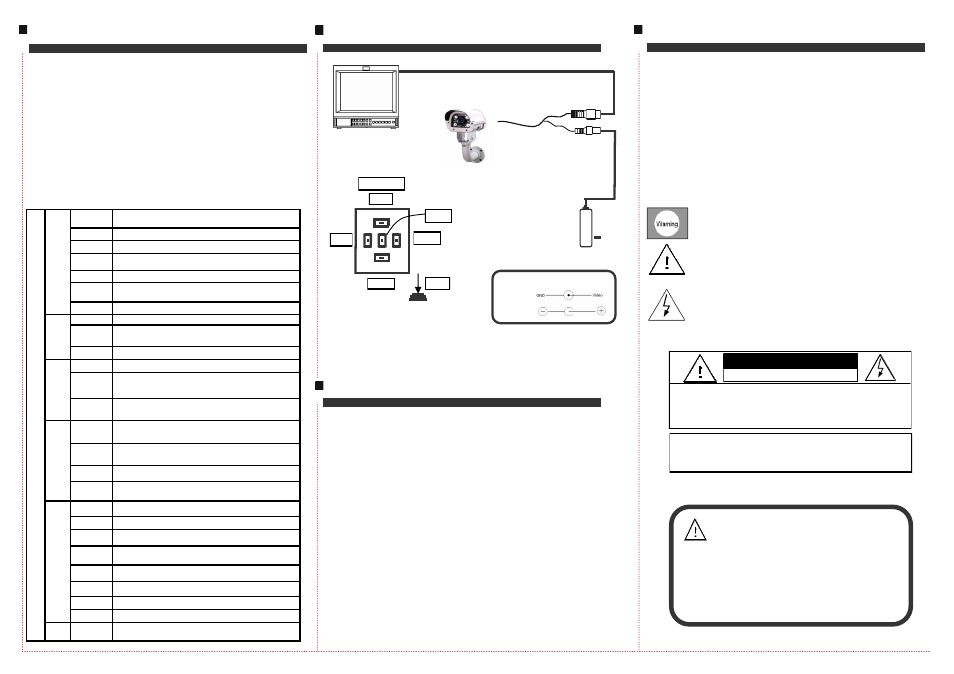

CONNECTING

BRIEF OF PRODUCT

*

Sensor (CCD)

Adopt SONY 1/3" CCD Sensor.
*

Auto Gain Control (AGC)

Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.

*

Scanning Mode

NTSC or PAL mode.
*

Water Resistance

IP66.
*

OSD SETTING

DC12V Power Supply

Monitor

TROUBLE AND SOLUTION

Link wire rule:

Power

Video

Note:


Please note the camera’s operating temperature and its using

environment

requirement. Avoid using the camera at too high

or too low temperatures. The operating temperature is

-

30~+60‐

. (Recommendatory operating temperature is

-

10~+45‐

.)

Never make the camera face the sun or bright object. Other-

wise, it will damage the CCD.

Do not mount the camera near by the radiator or heater.

1. No Picture after providing power
. May be the power supply voltage abnormity, please check the power
supply voltage and pole whether exactitude.
. Please check all the connecting cable and monitors whether be connected
correctly or not.

2. The picture level direction have flowing interference ripples
. May be caused by the power supply AC ripples, it need filter the wave of the
power supply.
. Check the monitor and peripheral equipments used.


3. The picture background color changes continuously

. The fluorescent lamp’s electromagnetic field cause color roll. This is proper
phenomenon of the cameras.
. Reduce the fluorescent lamp numbers or increase the distance between the
camera and the fluorescent lamps can improve it.
. Use power supply external sync. camera can solve it.

4. The picture smear too mass
. The power supply’s voltage unstable.
. Connecting cables not connect correctly or have high impedance.

To prevent fire or shock hazarded. Do not expose the unit

The symbol is intended to alert the user to the presence of

The symbol is intended to alert the user to the presence of

to rain

or moisture.

important operating and maintenance (servicing)

Instructions in the literature accompanying the appliance.

uninsulated ‘dangerous voltage’ within the product’s

enclosure

that may be of sufficient Magnitude to

consti-

a risk of electric shock to persons.

Video

DC12V

CAUTION:

CAUTION:

TO REDUCE THE RISK OF ELECTRIC

SHOCK
DO NOT REMOVE COVER OR BACK NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING

RISK OF ELECTRIC. DO NOT OPEN

CAUTION:

TO PREVENT ELECTRIC SHOCKS AND RISK OF

FIRE HAZARDS, DO NOT USE OTHER THAN
SPECIFIED POWER SOURCE.


OSD

SET

AE

mode

Standard AE

SWDR

Level :0~8, DWDR: On/Off

BLC

Level : Auto/Low/Middle/High

HLC

Set range, Level : Low/Middle/High, Mask grayscale:1~6

Face AE

Frame : Off/On ,Sensitivity : 0~11

Face

auto zoom

Frame:Off/On, Sensitivity : 0~11, Warning trigger :High/Low/

Off, Warning seconds

Demist

Level : Auto/Low/Middle/High

Color

adjust

AWB

AWB,ATW,F/A,U30,CWF,D50,D65,D75

Brightness:0~99,Color-Red:0~99,Color-Green:0~99,Color-

Blue:0~99,Contrast:0~99,Saturation:0~99

CR suppress

Off, On

Adjust

Day & Night

Off, On, Auto, Ext

Digital slow

shutter

Auto,1/50,

(1/60),1/100,1/250,1/500,1/2000,1/5000,1/10000,1/100000,1x

,2x,3x,4x,5x,6x,7x,8x,16x,32x,64x,128x,256x

3D-NR: 0~3, 2D-NR-1: 0~32, 2D-NR-2: 0~32, Sharpen:

0~32, FC-suppress: 0~15, Blemish compensation: 0~3

Intelli-

gent

Face

detectoin

Switch: Off/On, Frame: Off/On, Sensitivity: 0~11, Warning

trigger: High/Low/Off, Warning seconds: 0~65535

Motion

detection

Switch: Off/On, Set range, Sensitivity: -2~2, Warning trigger:

High/Low/Off, Warning seconds: 0~65535

D-Zoom

D-Zoom: 1~256, Tilt: -100~100, Pan: -100~100

Privacy mask

Opacity: 0~3, Mask select :1~8, Set mask area, Switch: Off/

On, Mask color: 0~65535

System

setting

Lens

Manual/DC-Indoor/DC-Outdoor

IR input level

High/Low

Smart IR

control

Off/On

Camera ID

0~255

Baud rate

1200/2400/4800/9600/19200/38400/57600/115200/230400/

460800

AC Freq

50Hz, 60Hz

Language

English, Francais, Espanol,Pyccknn, Chinese

Show ID/Icon

show icon, show ID, show ID/Icon, Off

Infor-

mation

Version

information

MENU

UP

DOWN

RIGHT

LEFT

PRESS

KEY BOARD
