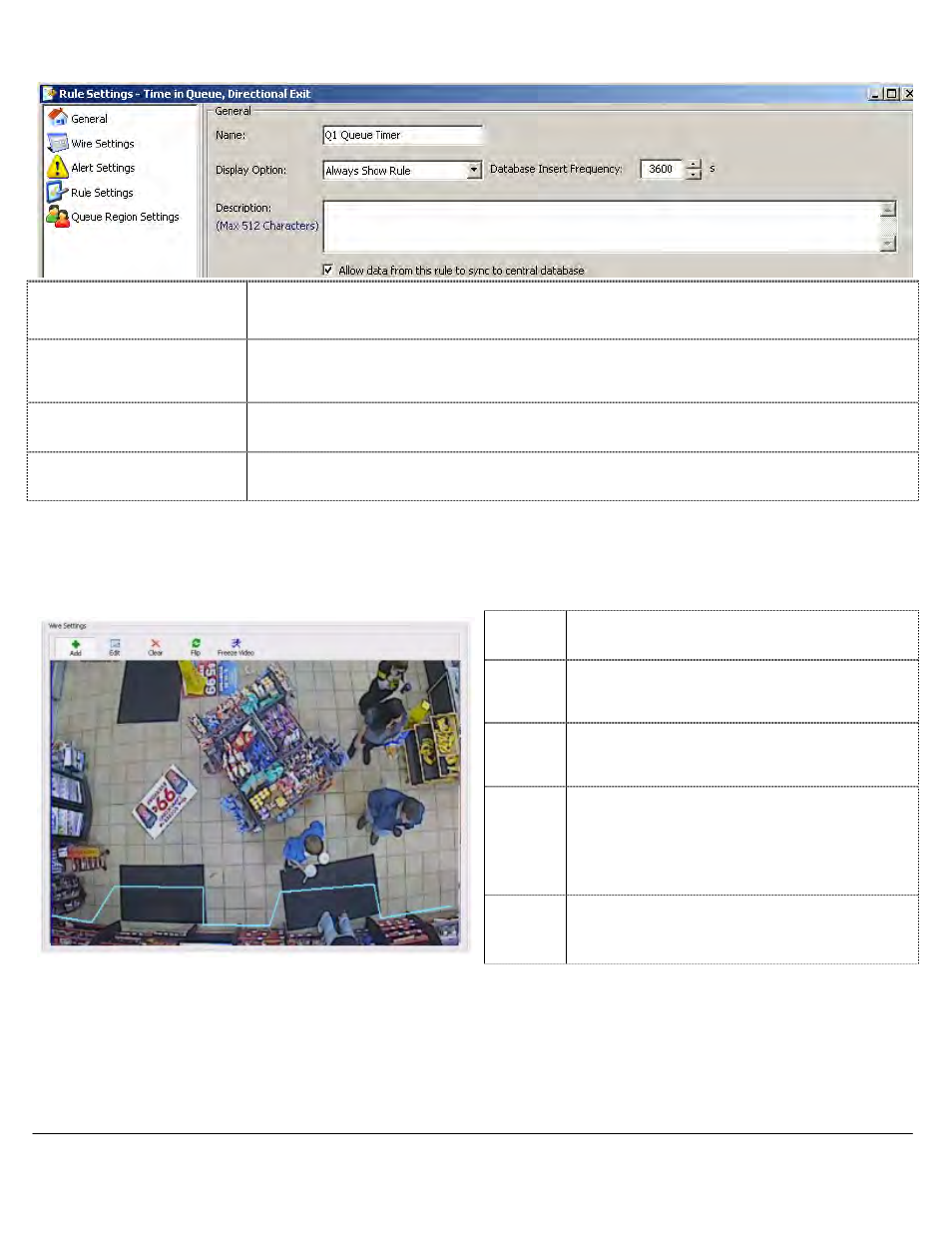

General Tab
Name
Display Option
The rule name is used to easily identify the rule in the settings, live and alarms windows.
When building Analytics on an Enterprise level, consider Rule Naming conventions to
simplify searching and reporting on the data.
Select when the rule should be displayed in the live viewer. Show Rule will always display
the rule, Not Show Rule will never display the rule, Show Rule When Alarmed will only show
the rule while the alarm is triggered.
Database Insert
Frequency
The number of seconds between database entries. When a database insert is performed the
on-screen count restarts.
Description Enter a description for this Rule.
Wire Settings Tab
Click on the image to draw the tripwire threshold that people must cross when exiting the Queue Region to be
counted. There must be enough space on either side of the tripwire to detect object movement and identify
the object type.
Add
Click the Add button and then click to draw the
tripwire.
Edit
Click the Edit button and then click and drag
the points of the tripwire.
Clear
Click Clear to remove all tripwire settings from
the image.
Flip
Freeze
Video
Flips the direction of the tripwire, so that Enter
and Exit are switched. Exit should be displayed
on the side where people have exited the area.
Enter should be displayed on the side where
people have entered the area.
Click the Freeze Video button to pause the live
video. Click the button again to display live
video.
