DIO Alarms can be used to Trigger PTZ events. The DIO Alarm must be enabled and assigned to the Camera,
See Settings – Relays/Alarms Tab for details. Multiple DIO Alarms can be assigned to one camera, click the
Checkbox beside the Alarm Name to enable it.
Video Analytics Alarms can also be used to Trigger TPZ events. Multiple Video Analytics Alarms can be
assigned to one camera. All Video Analytics Rules configured on the Server will show in the list, click the
Checkbox beside the Rule Name to enable it.

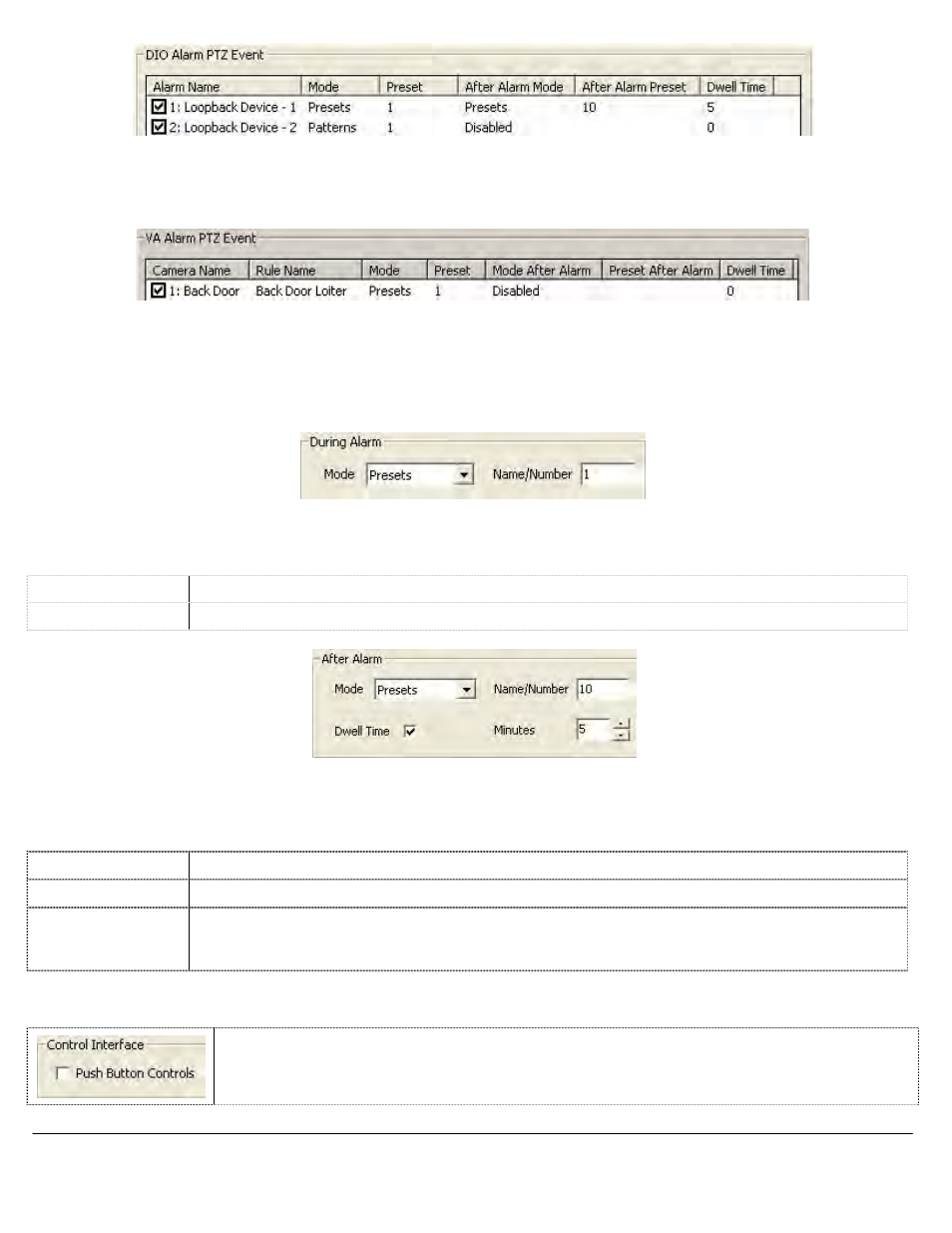

Clicking the checkbox will open the PTZ Configuration window.
During Alarm
Select what action to apply during the DIO Alarm.
Mode Select Patterns, Presets or Tours from the Dropdown box.
Name/Number Enter the Name or Number of the Pattern, Preset or Tour.
After Alarm
Select what action to apply after the DIO Alarm has ended. To do nothing after the alarm, select Disabled
from the Mode Dropdown.
Mode Select Disabled, Patterns, Presets or Tours from the Dropdown box.
Name/Number Enter the Name or Number of the Pattern, Preset or Tour.
Dwell Time
The amount of time from when the DIO Alarm is triggered until the After Alarm event occurs. If
Dwell Time is not checked the After Alarm event will trigger when the DIO Alarm ends.
Control Interface
Enables the Push Button Directional controls for the camera in place of the virtual joystick.
