Instruction of Sensor Configure of IT1 (megapixel CCD cameras)

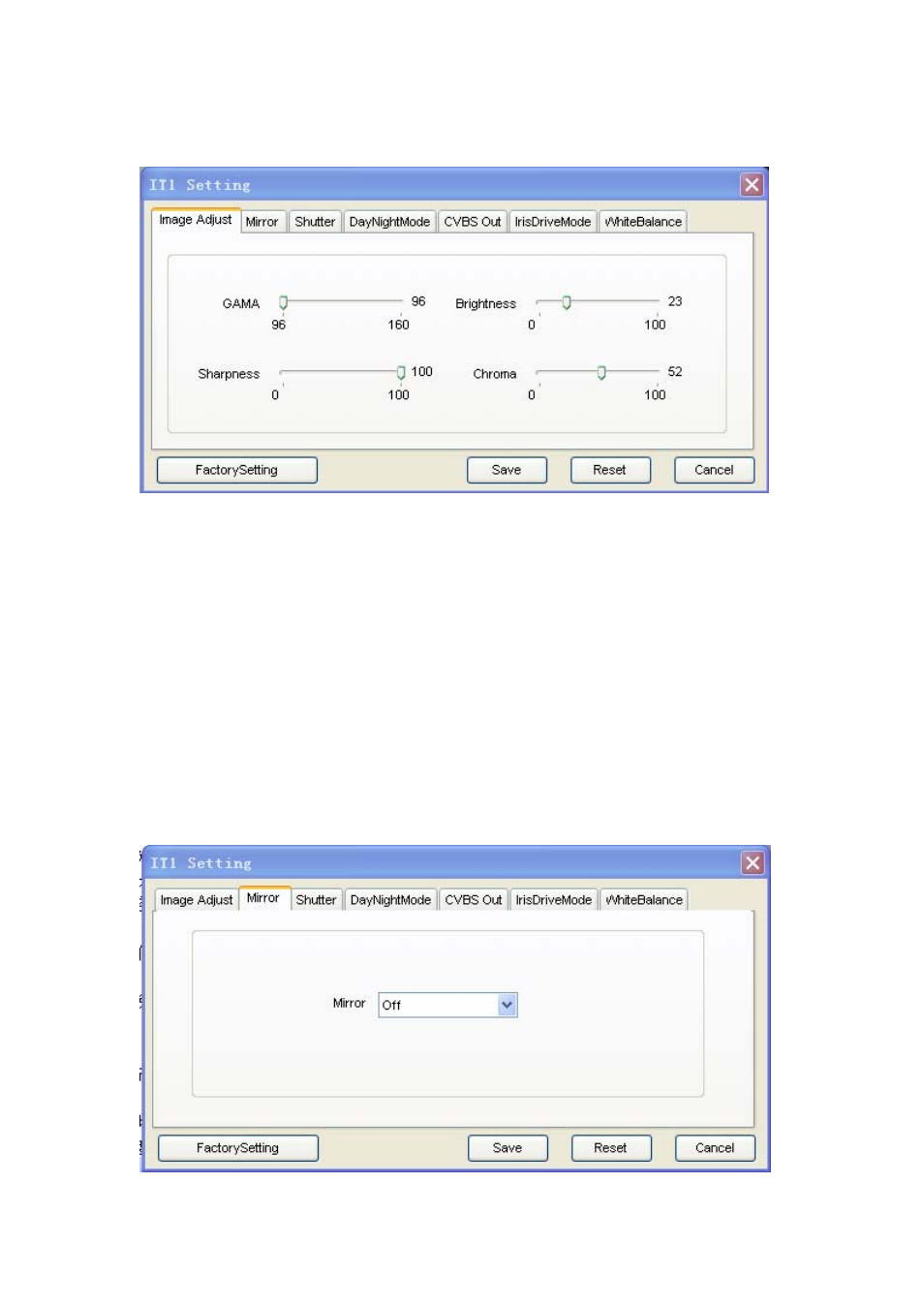

1. Image adjust
1).GAMA: adjust GAMA of dark area on the image to increase or decrease the brightness of dark
area with a micro-range adjustment, recommended value is 96,
2). Brightness: adjust the brightness of image, general setting is 23.brightness depends on shutter,
iris and gain, all these 3 values are set automatically according to the external light to reach the
brightness value set. The priority among these 3 parameters is: shutter, iris, gain. When light is
sufficient, shutter works to reach the set brightness, when shutter decrease to the minimum, image
still couldn’t reach the brightness ,iris will work.(Iris mode must be on while “off”, iris is always work
at max value, doesn’t adjust automatically.) if brightness is still not enough, gain will work, increase
gain to change brightness. If all the 3 parameters works max, it will not make image bright even if
set the brightness higher.. e.g. don’t set the brightness higher to increase brightness during night as
image will overexposure at day time.
3).Sharpness: adjust the sharpness value of image, the recommended value is 100.
4).Chroma: adjust the chroma of the image, the recommended value is 50.
2. Mirror: To adjust the mirror function of cameras.
