eLineTechnology.com 30
5.3.7 ALARM SETTING

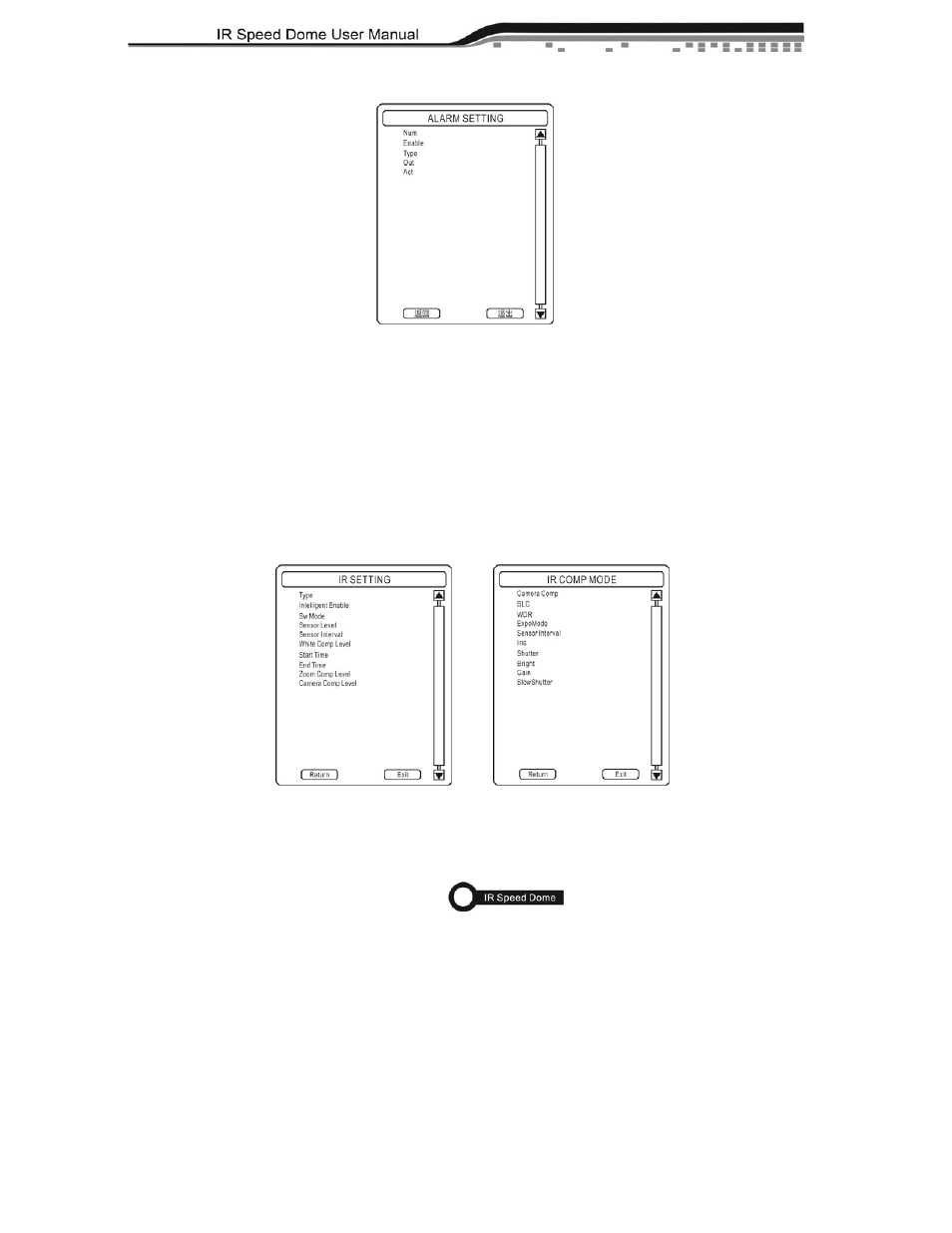

Enter "ALARM SETTING" Menu,Shown in Pic.5.3.15
PIC.5.3.15 ALARM SETTING
 Alarm Channel:Alarm channel can select the Number from 1 to 4.
 Alarm Switcher:Selecting open or closed in alarm switcher.
 Alarm output channel: Selected No.1 or No.2 channel in alarm output channel.
 Alarm action: Each channel alarm can set one alarm output alarm action.When the alarm signal
input,it will automatic do this action.Alarm output action can set preset from 1 to 8,Pattern scan from
1 to 2,Cruise scan from 1 to 8,horizontal scan,pattern scan,,etc.
5.3.8 IR LED SETTING
Enter "IR LED SETTING" Menu,Shown in Pic. 5.3.16
Pic. 5.3.16 IR setting Pic.5.3.17 IR comp mode
 IR Compensation type: it will display the IR LED is Dot matrix LED or Laser.
 Dimming Type:Intelligent dimming can select automatic or hand.
