eLineTechnology.com 12
2.2.4 2.2.5 2.2.6
2.3 Default Setting
Protocol: Auto Match
Address: No.1
Baud rate: 2400-N-8-1
120Ω ohmic resistance：

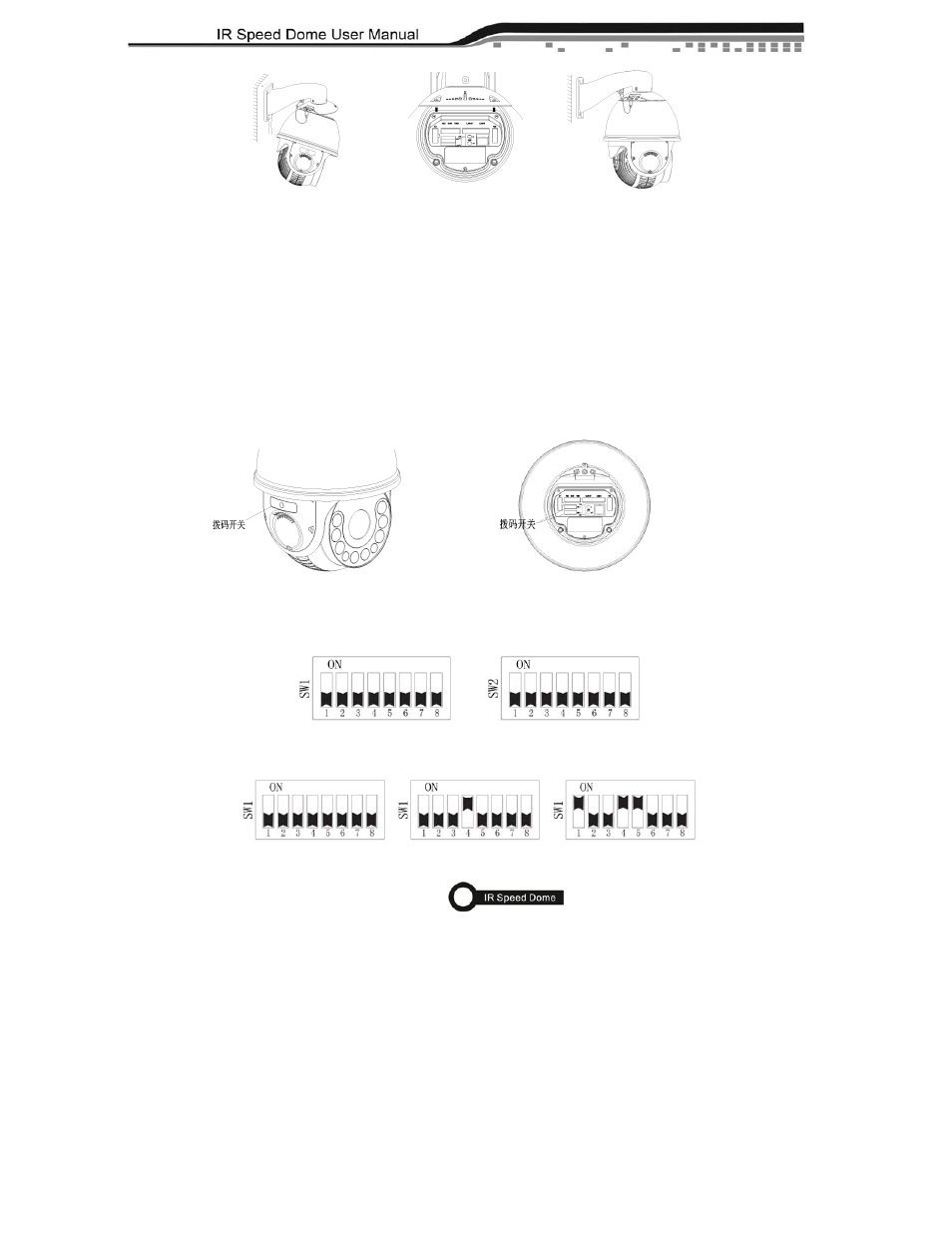

2.4 DIP SWITCH SETTING
Before install the speed dome, please configure the protocol, baud rate, and speed dome address.
The Dip switch is on side of speed dome( Analog speed dome As pic 2.4.7) or in the connected cover( IP
speed dome as pic 2.4.8)
2.4.7 Diagram of Analog Speed Dip Switch Pic 2.4.8 Diagram of IP Speed Dome Dip Switch
SW1 Configure speed dome protocol , baud rate and 120Ω ohmic resistance; SW2 configure speed
dome communicated address.
SW1 Protocol&Baud Rate Switch SW2 Speed Dome Address
E.g. Some parts of Dip for Protocol&Baud Rate
Auto Match PELCO-D&2400BPS PELCO-P&9600BPS
