eLineTechnology.com 17
Chapter 4 Operation
4.1 POST( Power On Self Test)
The Speed Dome Power on, execute the self test. The steps: System preheat( If it is necessary),
camera test,Pan test, Tilt test. The Self Test display as pic 5.1.1, it is takes 40 sec.
Note: If the speed dome address is unavailable, the address display the software address, otherwise
it will display the address which configured by Dip Switch, The operation of speed dome software address,
please referenced by chapter5.3.6. The communication bar show the information of communication
speed , date bits, stop bits etc. E.g."2400.N,8.1" means the communication speed is 2400Bps, None
Check, 8 bits, 1 stop bits.

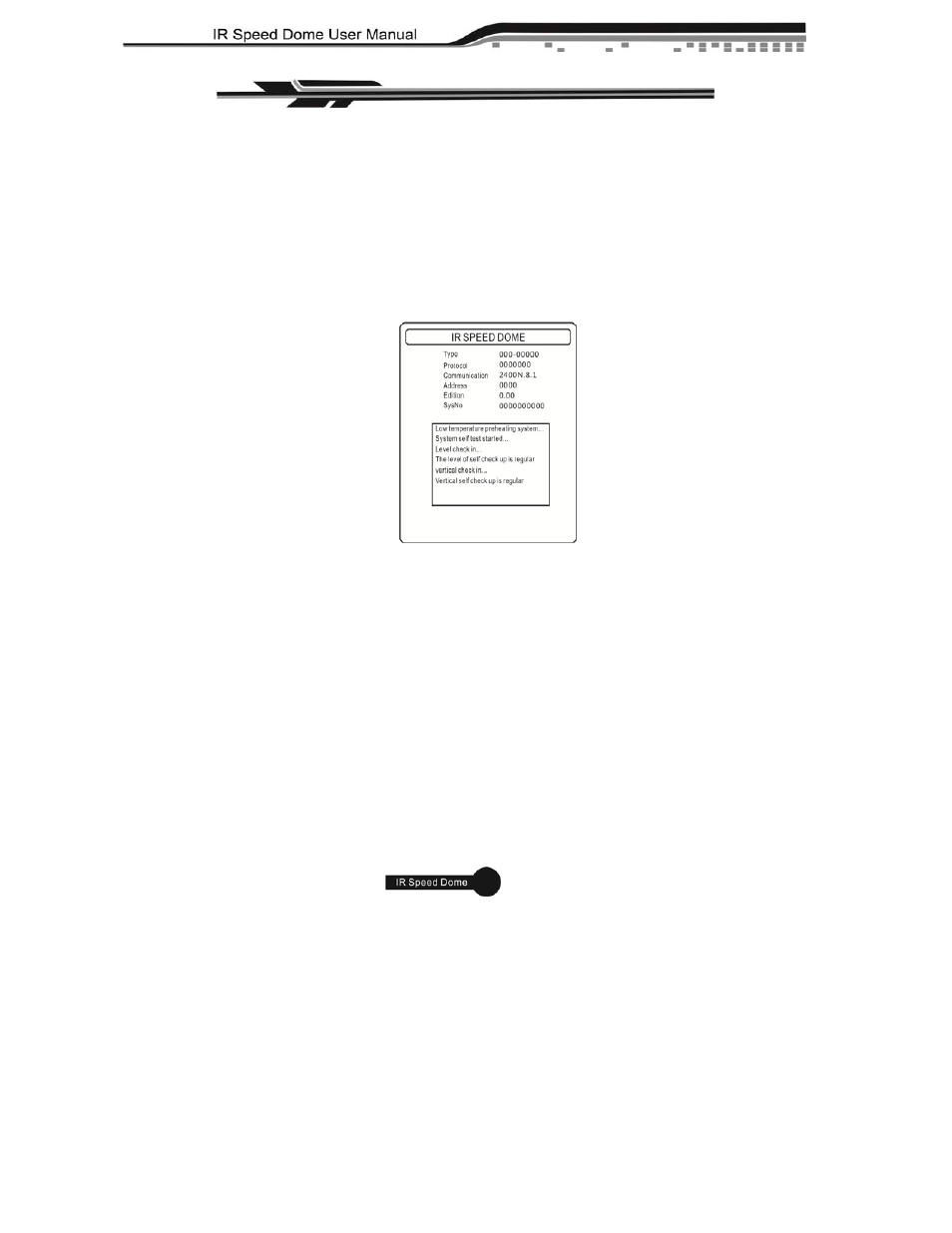

Pic 5.1.1 Splash Screen
4.2 Basically Operation
Following is the integrated operation with the Keyboard,DVR, and software etc.It is normally
operation. Please referenced by User Manual
 Pan/Tilt: Control the joystick of Keyboard to expected direction, or enable KEY of UP , DOWN,LEFT,
RIGHT .
 ZOOM Control: Control the Key of TELT and WIDE from Keyboard and DVR to enable camera
ZOOM IN and ZOOM OUT.
 FOCUS: Control the Key of FAR and NEAR from Keyboard and DVR to enable camera FOCUS.In
the AUTO mode, the camera will FOCUS Automatically. The manual FOCUS mode will back to
AUTO FOUCS MODE if the speed dome is operated by manual.
 IRIS: Control the Key of OPEN and CLOSE from Keyboard and DVR to enable camera IRIS Control.
The Manual IRIS mode will back to Auto Mode if there is manual operation for Speed Dome.
