eLineTechnology.com 19
4.4 Screen Character prompted
The speed dome supply the screen character prompted for easily to operation.It can display the
multiples of lens,azimuth angle,alarm,Date and title of the presets.
 Lens Multiples: Display the format for Z XXX,XXX is multiples of lens.

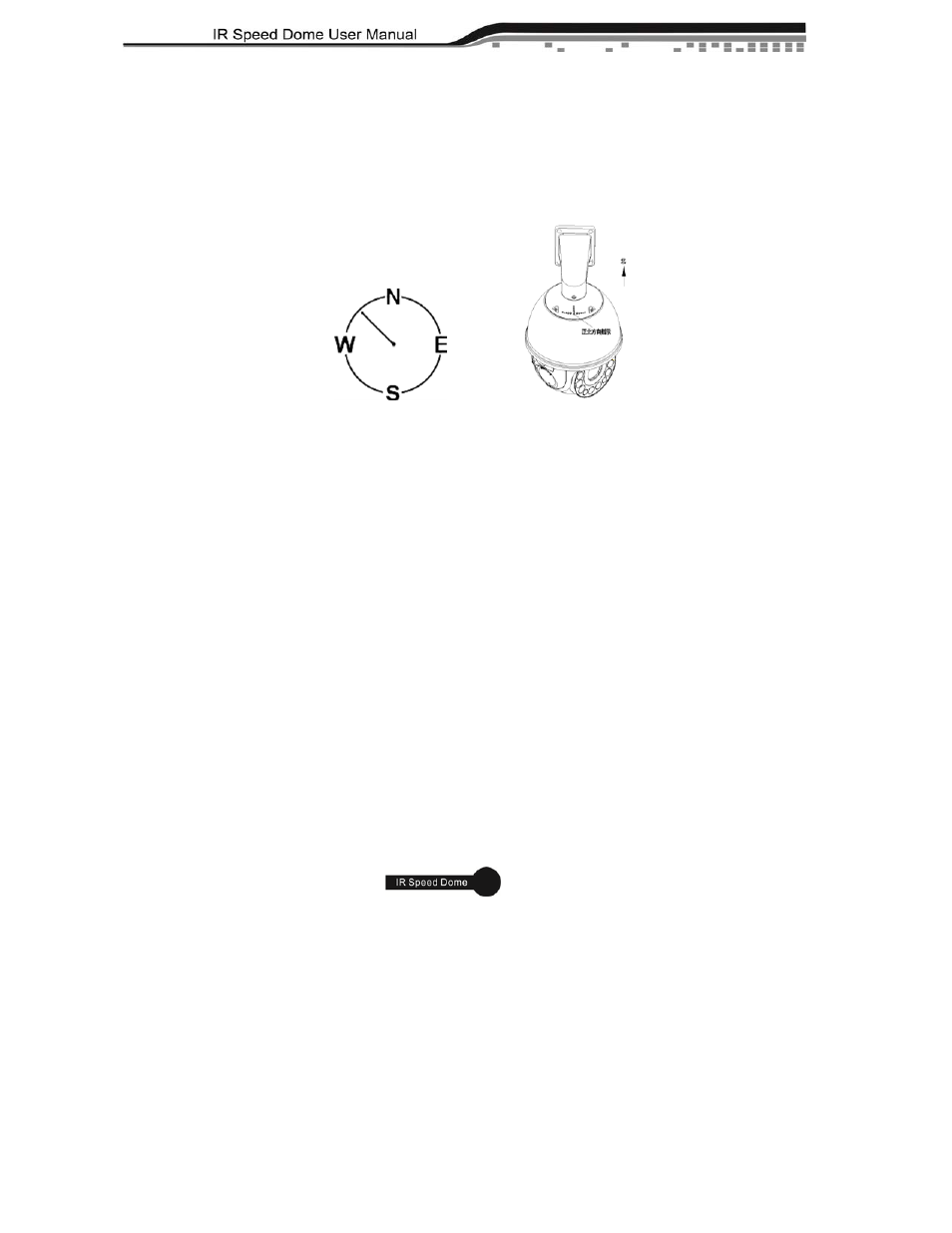

 3D Position angle: Shown in Pic. 5.4.1.The length of radius lines means the multiples of camera
module lens,the longer the length,the greater multiples.
Pic. 5.4.1 Pic. 5.4.2
 Digital azimuth angle display: The format display for SEXX | TXX,there have three numbers for how
many degrees of south-easterly direction.Customer could set the North in menu or for default by
system.Please see the North marked of connect cover on top of the speed dome.(Show in Pic.
5.4.2).Such as: Displayed SE128 | T28 on the screen,It means the lens of speed dome located in
south-easterly 128 degree,vertical 28 degree.
 Alarm: When trigger alarm inputs signal,The screen will show the number of alarm.It will show a horn
pattern on front of alarm number.When trigger many alarm inputs signal at same time,the alarm
number will display blinks when current alarm signal
 Date and Time: Support different format setting.Such as "XXX Year-X Month-X day Week X-XX
Hour-XX Minutes-XX Seconds".it is 24 hours format.
 Preset Tilt: Display the current preset tilt.
