eLineTechnology.com 26
Image Flip: You could set display the picture on the screen up,down,left and right reverse.
Image Mirror:The picture on the screen will reverse by right and left via this function
Shake Reduction Level:Shake Reduction have closed,high,medium and low four options,Closed for
don't start shake reduction function; High for shake reduction very good,Image jitter relatively
small.The default is Medium.
S/N Ratio Level:S/N Ratio have closed,high,medium,low four options,Closed for don't start S/N Ratio
function;High for S/N Ration ability are very good,Less Noise.Medium for S/N Ration ability are
good;Low for S/N Ratio ability is not good.Default for Medium.
High Resolution Mode:When you open this function,the image will high clearly and better
contrast,Does not make the screen color distortion.
Camera module protocol:You could set the protocol of camera module by hand.
Camera module zoom table:You could set the zoom table of camera module by hand.
Custom zoom table setting:You could set the zoom of camera module,and the position of lens with
each zoom,As shown 5.3.7.Please see the 5.3.3 for set the position of lens method.
Enter Camera module Menu: User can enter camera module menu through this option and setting
the parameter of camera module.
Remarks:The camera setting items depending on the model of camera mdouel.Certain features
may not be supported.

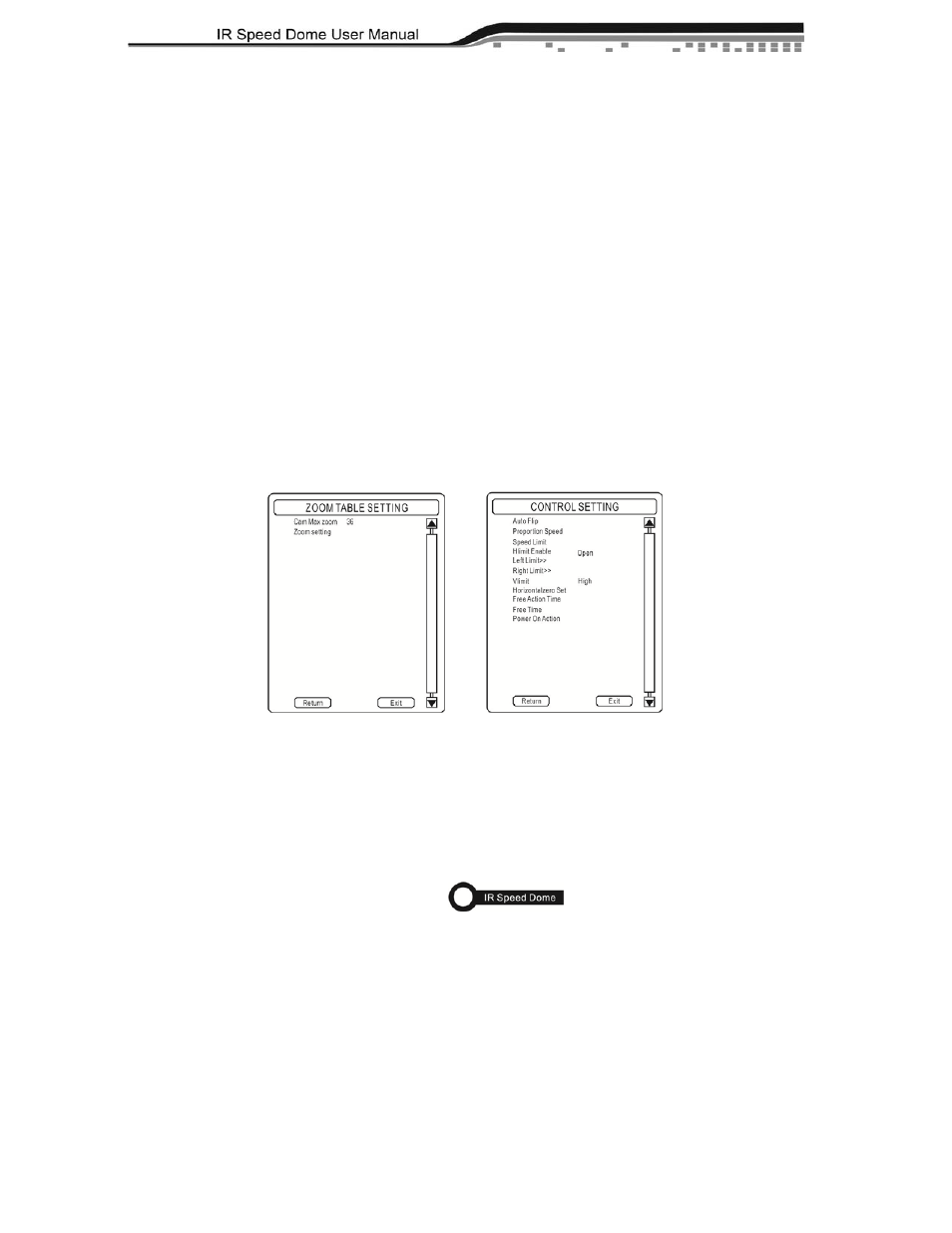

5.3.7 Zoom table setting 5.3.8 Control setting
5.3.4 Operation Setting
Enter "Control Setting" menu,Shown in Figure 5.3.8.
 Auto-Flip:When the lens runs vertically to 90°, if user keeps pressing the joystick, the lens will
automatically flip 180º horizontally, thus consecutive monitoring of moving object can be realized.
Setting method: move the cursor to "AUTO FLIP ", and select ON or OFF by moving the joystick to
