eLineTechnology.com 11
2)Following is recommend Max distance for 12VDC. Please refer the Appendix 3 Wire
Gauge&Transmission Distance
Cable Diameter Max Distance(M/ft)
0.75mm 2 6m(20ft)
1mm 2 9m(30ft)
1.5mm 2 12m(40ft)
2mm 2 15m(50ft)
3. Please keep the product package well
Please keep the product package well, You can send the speed dome to factory with that package if there
is any problem need to service.

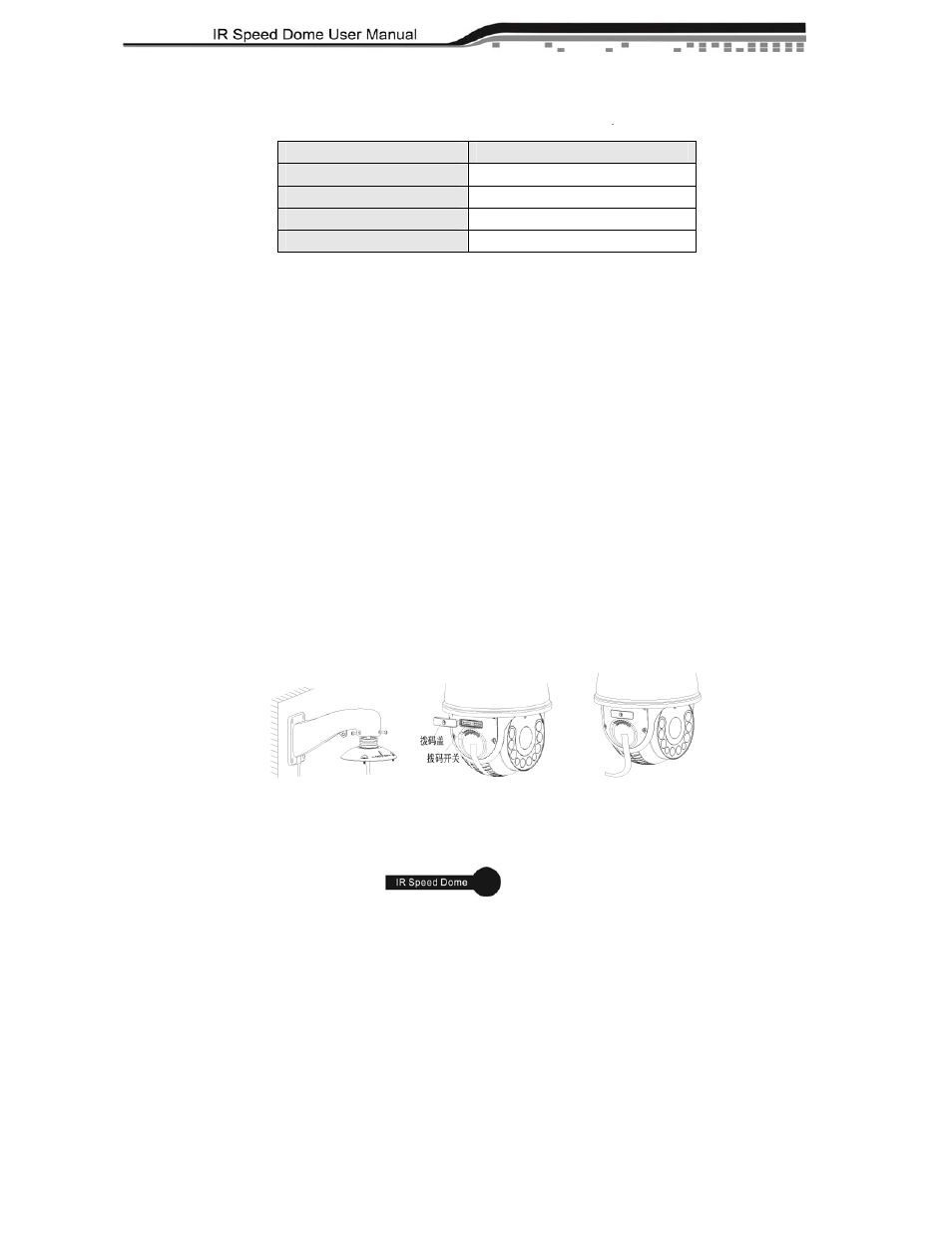

2.2 Installation
1. Speed Dome Installation
Different Bracket install way please refer to chapter 2 and chapter 3
1) Take out the cable from the speed dome.Remove the connected cover from speed dome, and put
the wire though the bracket. Connect the bracket and cover with 3 pcs screws, and fix it to
wall.( As pic 2.2.1) (Caution: The bracket must be with waterproof fodder together)
2) Open the Dip Switch Cap with screw driver. Configure the protocol,Baud rate, and Speed Dome
address. ( As pic 2.2.2). Please refer the chapter 2.4" Dip Switch Setting"
3) Remove the protect gummed tape (As pic 2.2.3), check the situation of seal ring on top of speed
dome.
4) Connect the safe rope of speed dome to the bracket, then hook up speed dome to the connected
cover( As pic 2.2.4). You should plugged the cable into right pin by reference by cable mark(As
pic 2.2.5).
5) Fix the speed dome with the screws.
2.2.1 2.2.2 2.2.3
