Trunk Mount 2 Bike Carrier
Page 2 of 12
Mounting Rack to Vehicle:
1. Hold the bike rack in approx. location on vehicle to see if the lower support needs to be put in the
raised position (1-7/8” difference). Reference figure 1 and last sentence of note 4 to move support.
2. Rest lower support tube on vehicle bumper, on vehicle license plate, or a vertical portion of trunk or
hatch. Find most solid position as possible. DO NOT rest against unsupported plastic bumper,
vehicle badges, or thin flexible sheet metal.
3. Loosen upper support tube adjustment knobs and rotate upper support tube so that it contacts vehicle.
Main support assembly arms should be at a slight angle upwards. Tighten adjustment knobs.
4. Attach upper hook straps to top edge of trunk or hatch. If a spoiler is present, straps should be routed
under spoiler if possible. Never attach to glass, plastic or trim.
5. Attach lower hook straps to bottom edge of trunk or hatch. Ensure strap is not close to vehicle
exhaust.
6. Adjust upper straps for equal tension. Adjust lower straps for equal tension.

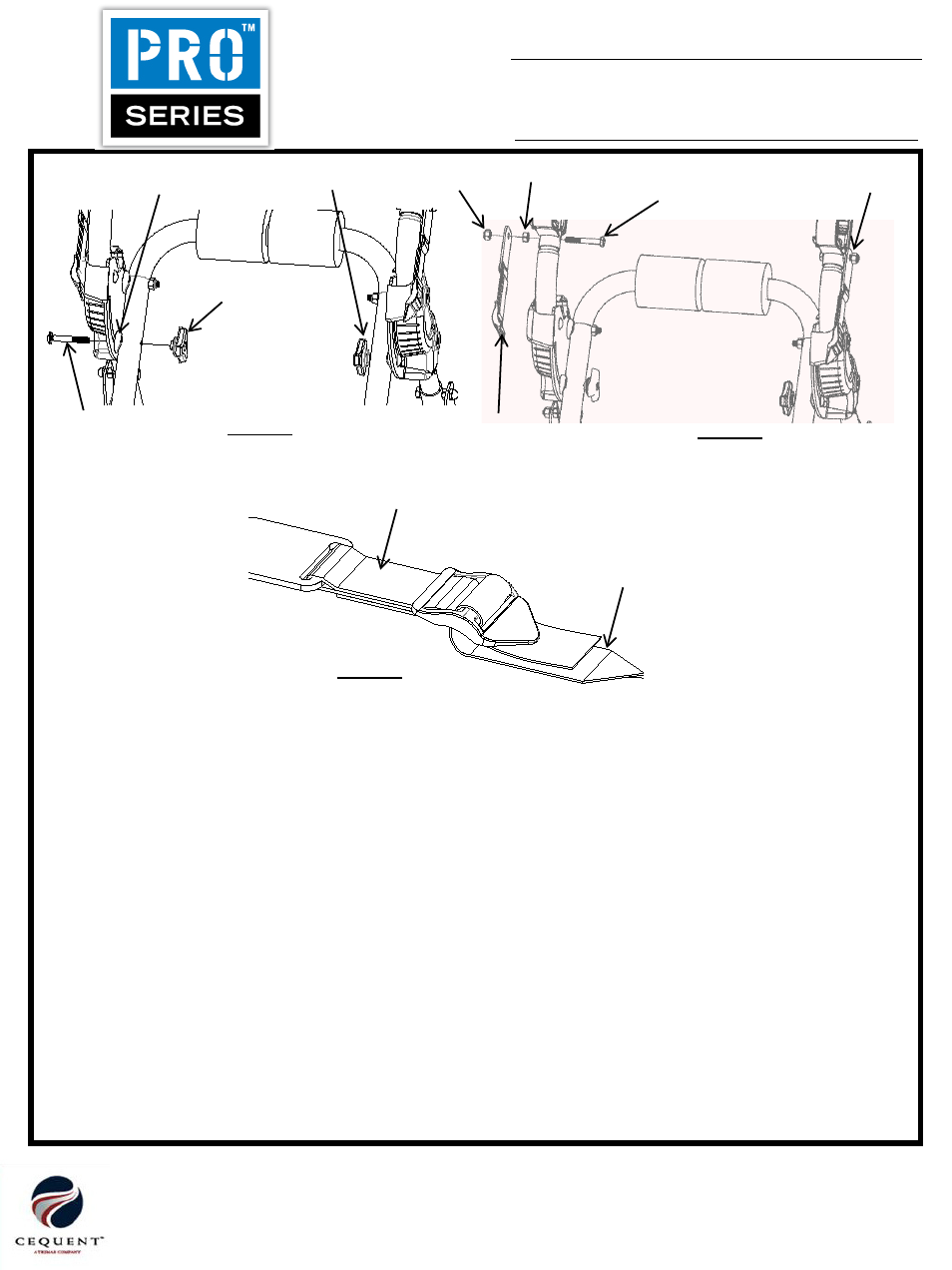

FIGURE 2 FIGURE 3
Spacer
ITEM
DESCRIPTION
Adjustment knob
1/4 -20 x 1-3/4” long
Carriage Bolt
1/4-20 x 1-3/4 Long Hex Bolt
Strap – Carrier End
1/4-20 Lock Nut
1/4-20 Hex Nut (see note 4)
Shown Assembled Shown Assembled
FIGURE 4
Strap – Carrier End
Strap – Vehicle End
