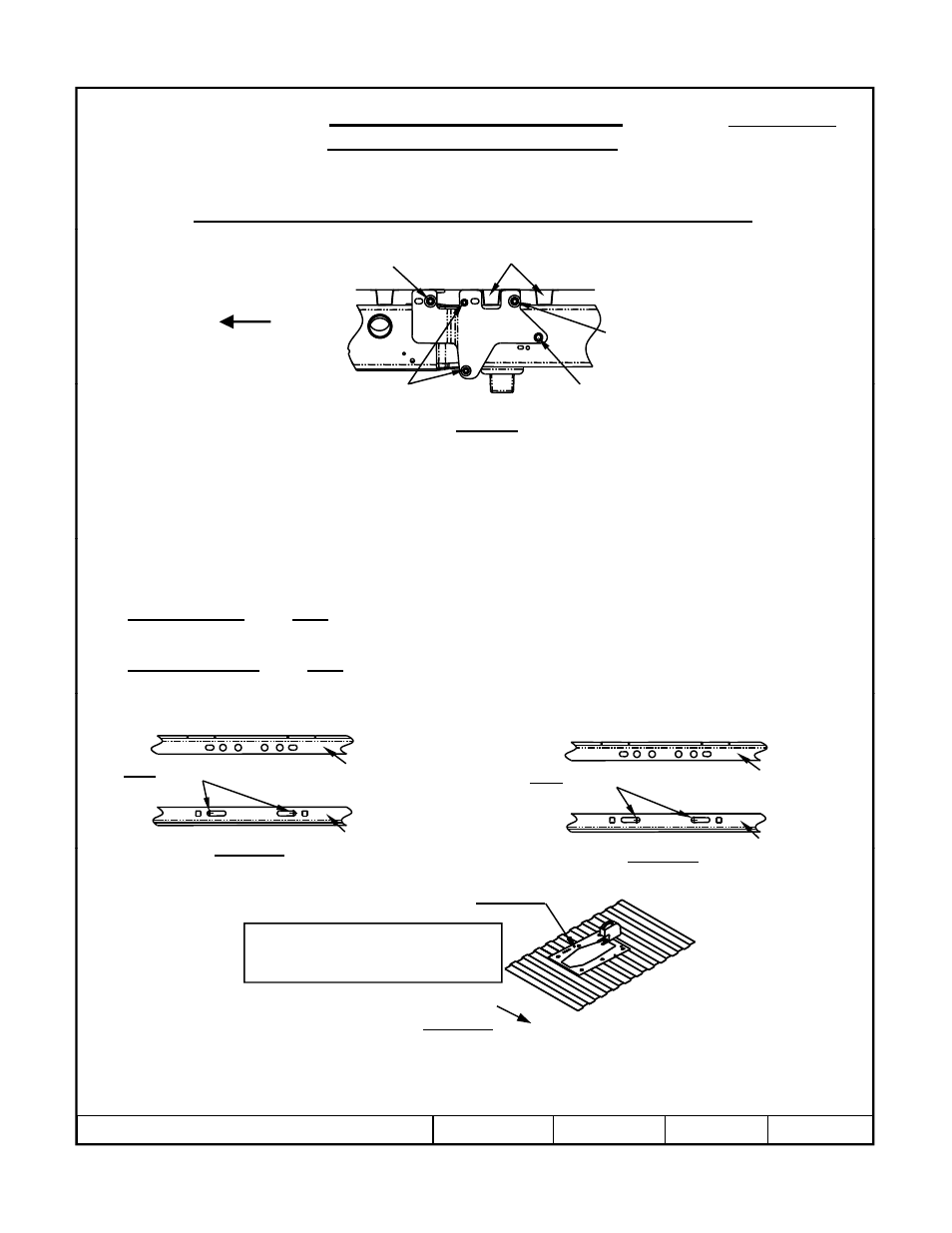

Draw-Tite 4445 GOOSENECK RAIL KIT - Manual (Page 7)

Installation Instructions
Part Numbers:
4445
GOOSENECK MOUNTING KIT
Chevrolet/GMC 3500 Long Bed
2001 - 2007 “Classic”
6300/8339/83391/83399 GOOSENECK HITCH INSTALLATION
Bed supports
Bolt to frame here
Fasten U-Bolt here
Attach forward rail here
Attach rear rail here
Vehicle
Forward
7. Line up the mounting holes on the frame brackets with the threaded studs on the ends of the rails. See Figure 8 to
identify which holes on the frame brackets to use. Loosely attach frame brackets to rails with 5/8” hex nuts and
conical toothed washers as shown in Figure 6.
8. Use the U-Bolts to loosely attach the frame brackets to the frame as shown in Figure 6.
9. Loosely attach the frame bracket to the frame through the slot in the frame using the 5/8” x 2-1/2” bolt, lock washer
and nut as shown in Figure 6
Figure 8
Bolt to frame here
Fasten U Bolt here
and nut as shown in Figure 6.
10. With the rear cross member and side brackets properly aligned, torque 5/8-11 GR5 fasteners tightening the bracket
to the frame and the rear cross member to 150 ft.-lb (203 N-m) and 1/2-13 GR5 fasteners on the U-Bolts to 75 ft-lb.
(102 N-m).
11a. For 6300 & 8339 use the outer edges of the long slots in the rearward cross member as a template to drill 5/8”
diameter holes through the truck bed as shown in Figure 9a. Due to the fuel tank, not all holes can be drilled from
under the vehicle, but should be done later from inside the bed.
11b. For 83391 & 83399 use the inner edges of the long slots in the rearward cross member as a template to drill 5/8”
diameter holes through the truck bed as shown in Figure 9b. Due to the fuel tank, not all holes can be drilled from
under the vehicle but should be done later from inside the bed under the vehicle, but should be done later from inside the bed.
Use outer edges to
drill 5/8” holes
Figure 9a
Forward cross
member
Rearward
Use inner edges to
drill 5/8” holes
Fi 9b
Forward cross
member
Rearward
6300/8339 Hole Locations 83391/83399 Hole Locations
Template p/n 5978 for use with 6300 head
Template p/n 114234 for use with 8339 head
Template p/n 114523 for use with 83391/83399 heads
Durable and reusable stainless steel templates are also
available. A time saver for cutting bed liner and bed.
Template p/n 6467 for use with 6300 head
Template p/n 6425 for use with 8339 head
Template p/n 58384 for use with 83391/83399 heads
Vehicle forward
Figure 9a
cross member
Figure 9b
Rearward
cross member
12. Align the holes on the template (provided with the gooseneck hitch) with the holes for the rear cross member
previously drilled through the bed. Be sure that the template is properly oriented toward the front of the vehicle See
Figure 10. Center punch the holes that will be used to cut the opening in the bed. If the vehicle is equipped with a
bed liner, a section of the bed liner must be cut away so that the gooseneck platform can contact the bed
corrugations.
Figure 10
z 2008, 2009 Cequent Performance Products Sheet 7 of 8 4445N 4-3-09 Rev. D
