Installation Instructions
Part Numbers:
4445
GOOSENECK MOUNTING KIT
Chevrolet/GMC 3500 Long Bed
2001 - 2007 “Classic”
9461/9471 HIDE-A-GOOSE HITCH INSTALLATION
NOTES:
¾ This rail kit can be used with a 9461 or 9471 head only.
¾ Always make sure the ball is fully locked before towing.
¾ Keep the ball and ball sleeve well lubricated.
¾ Periodically re-torque all the hitch fasteners.
¾ Check ball, hitch coupler, safety chains and other connections for proper operation every time you tow.
Warning: Warning:
™
The tow vehicle manufacturers recommended towing capacities should UNDER NO CIRCUMSTANCES be exceeded.
™ Check for adequate clearance between the gooseneck trailer and the rear of the cab and the rear of the truck box before
installing hitch.
™ All trucks have fuel lines, brake lines and electrical wiring located along the vehicle frame where the rail kit installs. Carefully
examine the location of fuel lines, brake lines and electrical wires before installation and be certain not to damage these
when positioning the hitch components. Be careful when drilling holes, cutting sheet metal and tightening fasteners as to
not limit the integrity of these systems.
Hide-A-Goose Only – Drilled hole in bed location (see Step 5).
Long Box – 52 inches
Installation Instructions
1. NOTE: THIS INSTRUCTION IS FOR INSTALLING A GOOSENECK MOUNTING KIT IN CHEVY/GMC
3500 PICKUPS FROM 2001-2007 “CLASSIC MODEL YEARS WITH 8’ BEDS. THIS TRUCK HAS TWO
BED SUPPORTS OVER THE AXLE.
2. Lower the spare tire to make installation easier.
3. From underneath the passenger’s side of the vehicle remove or cut out the section of the heat shield that is located
d th b d d b th h t
o g o 5 c es
under the bed and above the exhaust.
4. Cut the heat shield on the gas tank or bend the top edge down about 1” down to make room for the hitch (see Figure
2). On newer models with gasoline engines, temporarily detach the fuel vapor pump from the back of the gas tank.
5. When installing the 9461/9471 Hide-A-Goose hitch, a hole must be drilled in the bed of the truck. Mark and drill a
1/4” hole 52 inches from the rear of the bed and centered between the wheel wells. Using a hole saw, enlarge the
pilot hole to the final diameter hole size. Refer to the 9461/9471 Hide-A-Goose hitch instruction sheet for hole size.

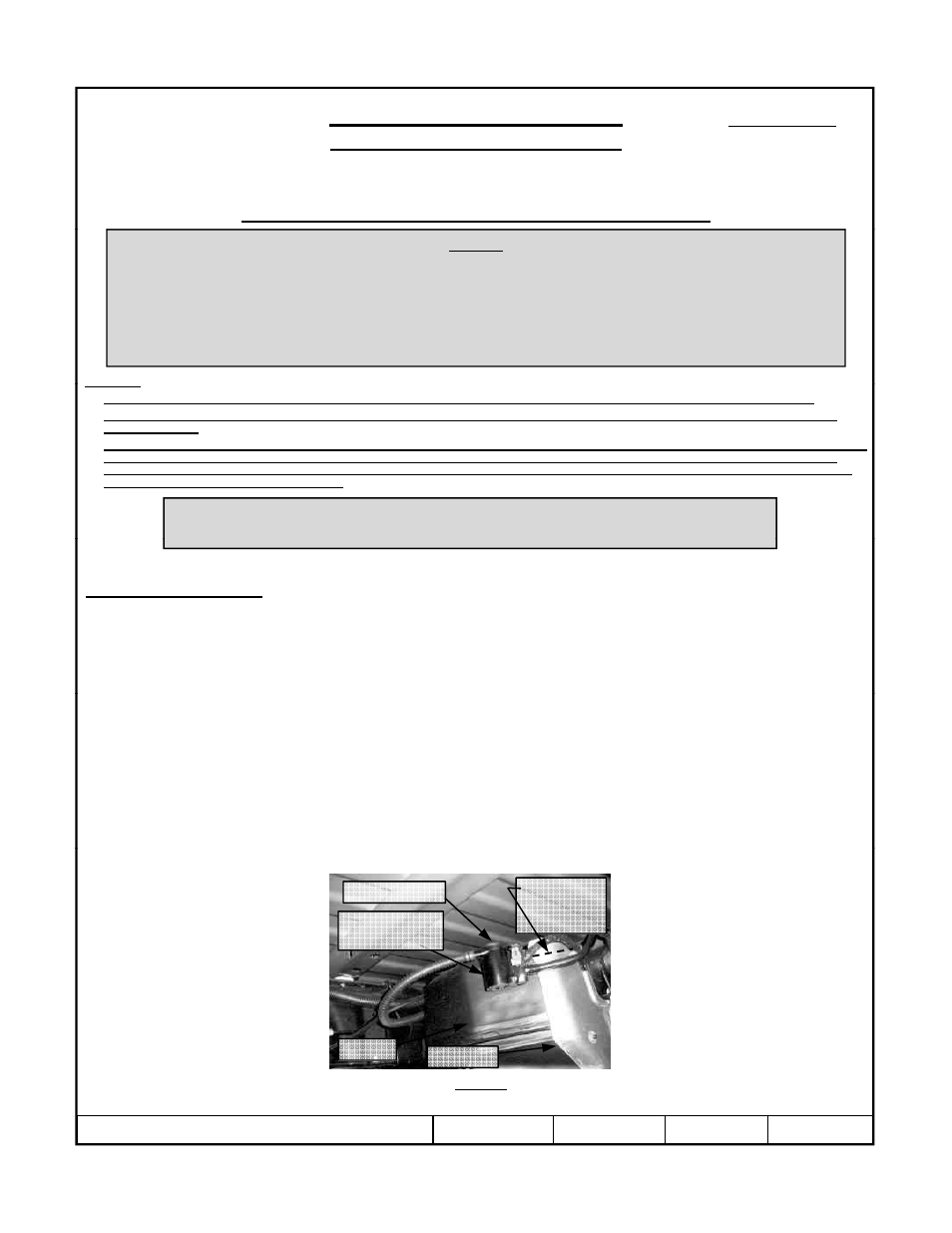

Fuel vapor pump
Detach fuel
vapor pump here
Trim or bend
heat shield
here
Fuel tank
Heat shield
Figure 2
Rear of Gas Tank
