Draw-Tite 50084 CUSTOM QUICK INSTALL BRACKETS - Manual

© 2012 Cequent Performance Products, Inc.
Rev. D 50084N 9/18/12
Vehicle Forward
Installation Instructions
CUSTOM QUICK INSTALL MOUNTING KIT
FOR 30035 & 58058 RAILS ONLY
2007 – Current Toyota Tundra
Part Number:
50084
WARNING:
Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing capacity.
READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION
Custom Quick Install mounting brackets only include the hardware to attach the custom brackets to the frame.
10 BOLT INSTALLATION
All Fasteners Typical Both Sides
All of the fasteners listed to the
left are supplied with this kit, all
other mentioned fasteners are
supplied with part number 30035
& 58058.
1
17
1
16
5
7
8
2
13 6
4
12
10
15
14
11
9
3
BUMPER / HITCH FRAME BRACKET
(MAY NOT BE PRESENT ON ALL MODELS)
EXISTING WELDNUTS
(BOTH FRAME RAILS)

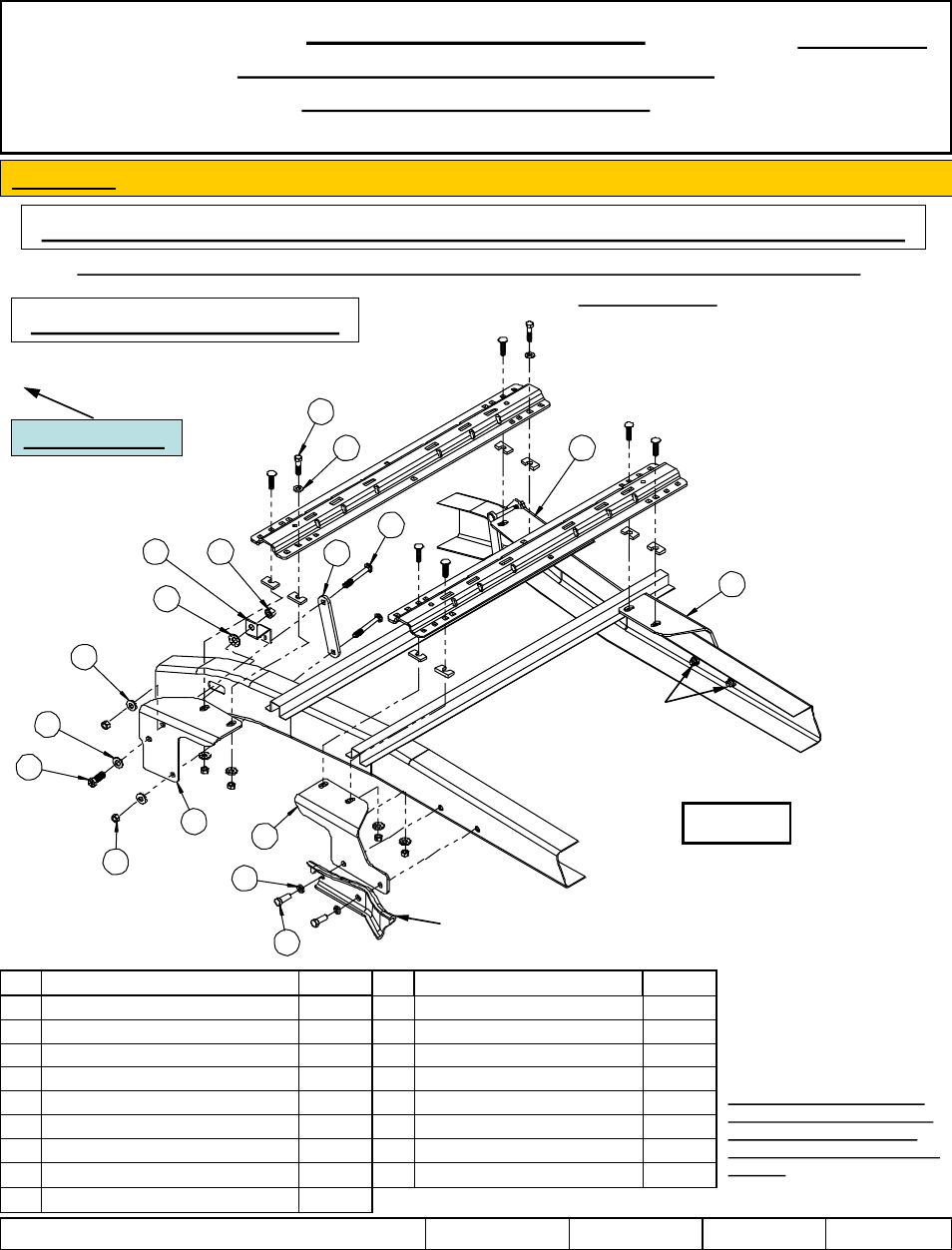

Figure 1
ITEM DESCRIPTION QUANTITY ITEM DESCRIPTION QUANTITY
1 WASHER CONICAL 1/2 4 10 BRACKET, D.S. REAR 1
2 WASHER CONICAL 5/8 2 11 BRACKET, P.S. REAR 1
3 WASHER FLAT 5/8 2 12 BRACKET, STRAP 2
4 BOLT, CARRIAGE 1/2-13 X 5.5 Grade 8 4 13 BRACKET, S 1
5 BOLT, HEX HD 5/8-11 X 2 Grade 8 2 14 BOLT, HEX HD M14-1.5 X 40 4
6 NUT, HEX 5/8-11 Grade 8 2 15 WASHER LOCK 9/16 4
7 NUT, HEX 1/2-13 Grade 8 4 16 BOLT, HEX HD 1/2-13 X 2 Grade 5 2
8 BRACKET, D.S. FRONT 1 17 WASHER FLAT 1/2 2
9 BRACKET, P.S. FRONT 1
Equipment Required:
Fastener Kit:
Wrenches: 3/4”, 15/16”, 12mm & 19mm Socket Wrench,
Torque Wrench
Drill Bits: 9/16”
Other Tools: Center Punch, Measuring Tape, Hammer, Pry
Bar.
