7.2.6 Input management

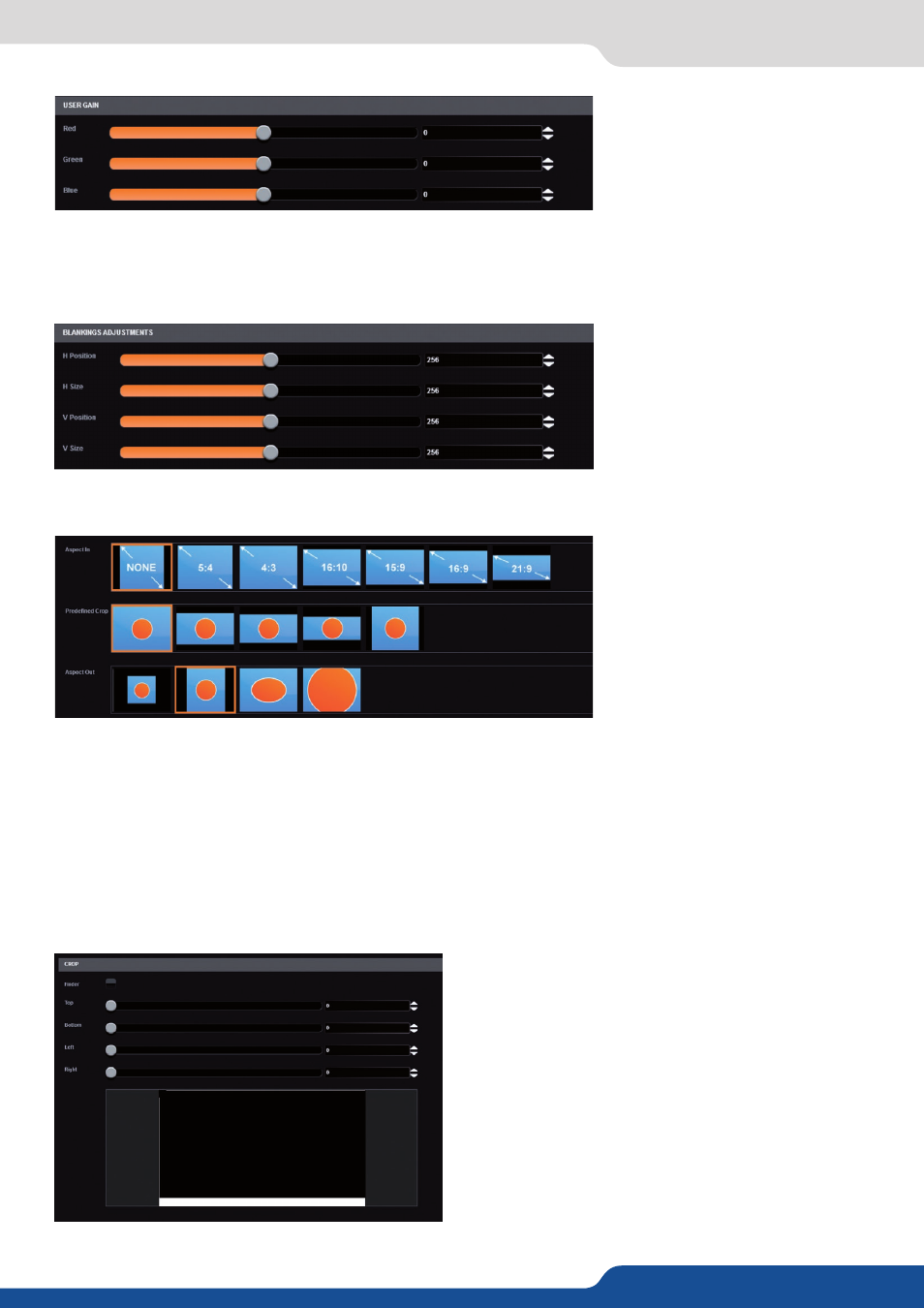

Under the USER GAIN section, you find:
- RED/GREEN/BLUE: increase/decrease the Red/Green/Blue level of your input.
Next you have the ASPECT tab. All settings about the blanking and aspect ratio are available there:
Under the BLANKING ADJUSTEMENTS:
- H&V POSITION SIZE: you can manually adjust the input blanking with the H&V size or position.
Under the ASPECT RATIO section:
- ASPECT IN: forces a particular aspect ratio for the source. (5:4, 4:3, etc). This setting has no effect when set
to native,
- PREDEFINED CROP: choose a specific cropped ratio if you use a source with black bands on top/bottom or
left/right,
- ASPECT OUT: define the way the image will be displayed into a layer (full screen, centered, cropped or 1:1),
- OVERSCAN: choose to apply or not a predefined zoom on the image (use with video signal).
Next settings available on the ASPECT tab are:
- CROP: use the Top, Bottom, Left and Right values to
crop your input.
