7.1 Operating mode

7. OPERATING THE SMARTMATRIX² FROM THE RCS²

7.1 Operating mode

Before you start setting up your SmartMatriX² for the first time, take some time to think about how you will

be using it. The SmartMatriX² offers one operating mode, which results in a versatile video production tool

for live event staging and fixed installation applications.

NOTE: We recommend resetting the device to its default values every time you set up your shows or events.

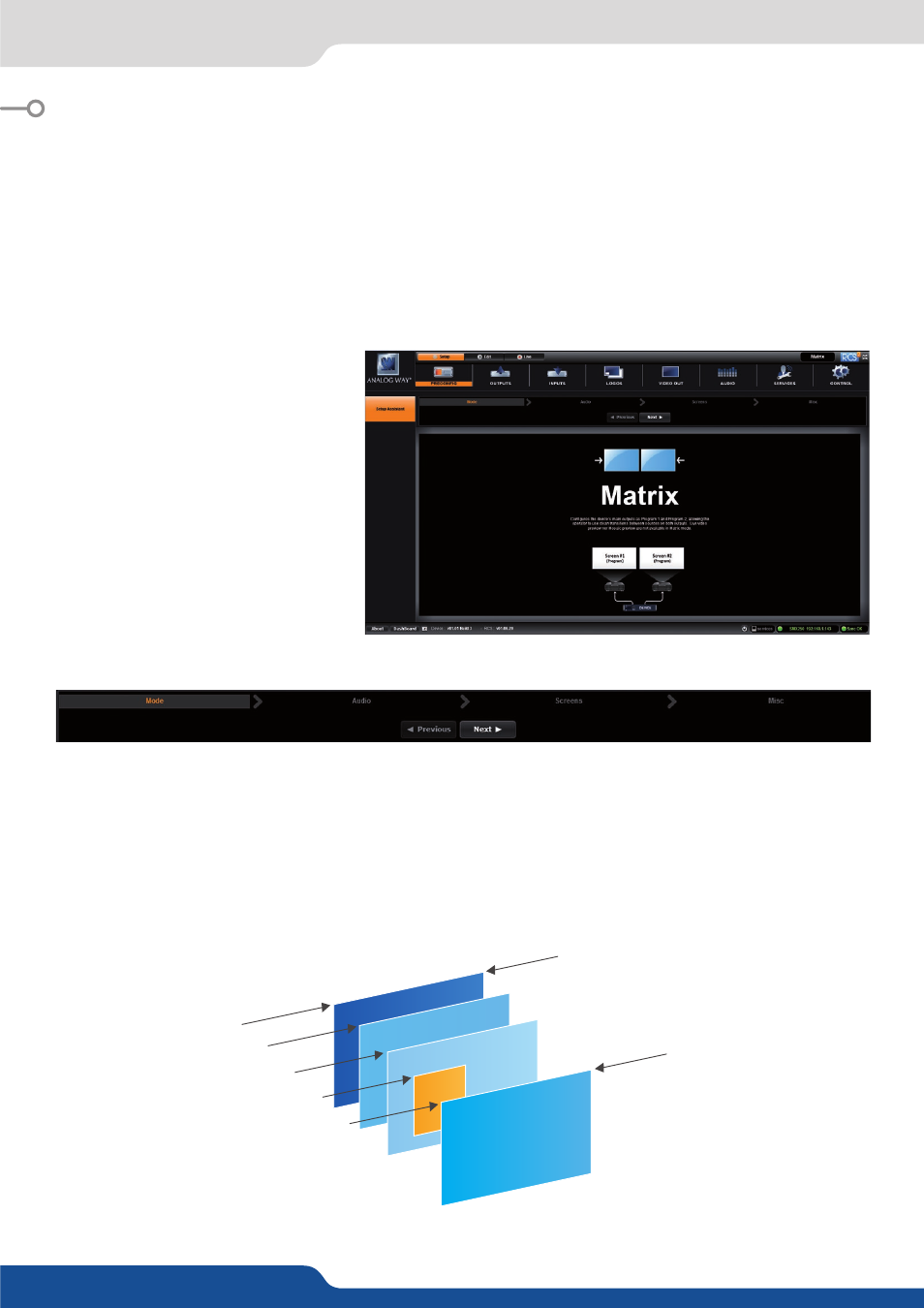

Go to the setup section to start to set up

your unit. A Setup assistant is available

to help you to correctly adjust all basic

setups of your unit.

7.2 Setup

The device can work in Matrix mode only.

7.2.1 Mode

Matrix mode
This mode turns your SmartMatriX² into a true 10 x 2 scaled matrix, while preserving seamless switching

capabilities.Program 1 and Program 2 outputs can be set to different resolutions and rates. Switching between

any of the inputs can be done with the various effects (Cut, Fade, Slides…) and synchronized on both outputs.

Quick Frame

Layer B

Layer A

Frame

Backgrou

Foregrou

Logo
