Installation
Page 2-4
Rack
Mounting/
Desktop
Placement
The IntraSwitch 5212 can be installed in most standard 19-inch
equipment racks. It can also be placed on a horizontal surface
with support capabilities of 11 pounds (5 kilograms).
Equipment Rack
Installation
To install the IntraSwitch 5212 in an equipment rack:
▲
Important! Disconnect all cables from the
IntraSwitch 5212 before continuing.
1 Place the IntraSwitch 5212 on a stable, flat sur-
face.
2 Locate a rack-mounting bracket (supplied) and
place it over the mounting holes on one side of
the unit, as shown in Figure 2-1.

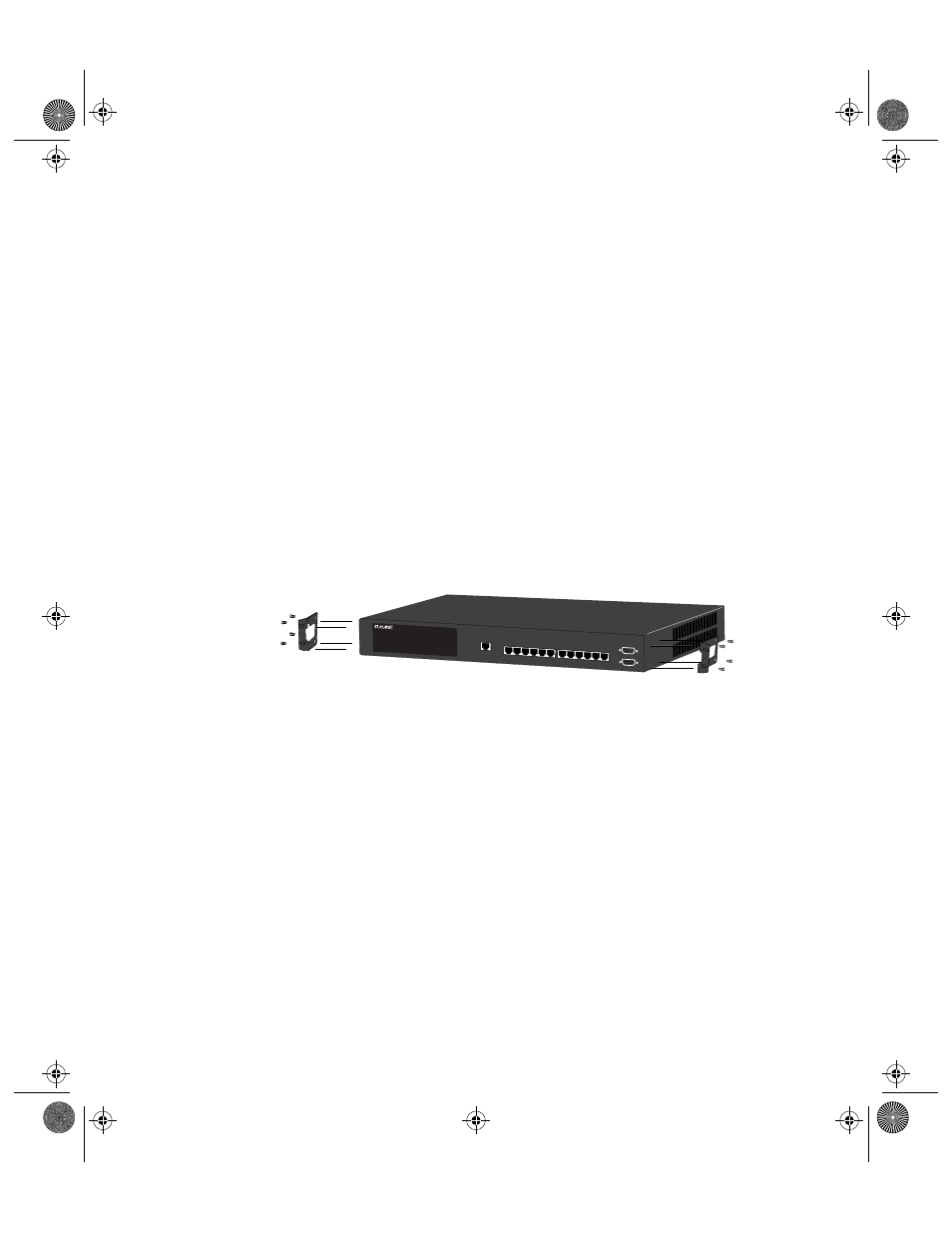

Figure 2-1 Mounting rack bracket on the IntraSwitch 5212
3 Insert the four screws (supplied) into the holes
and tighten with a Phillips screwdriver.
4 Repeat the two previous steps for the unit’s
other side.
5 Place the IntraSwitch 5212 in an equipment
rack.
▲
Important! Make sure the IntraSwitch
5212 is supported until all four mounting
screws for each bracket are installed.
6 Secure with mounting screws.
The IntraSwitch 5212 is now installed in the rack.
