ApplicAtions

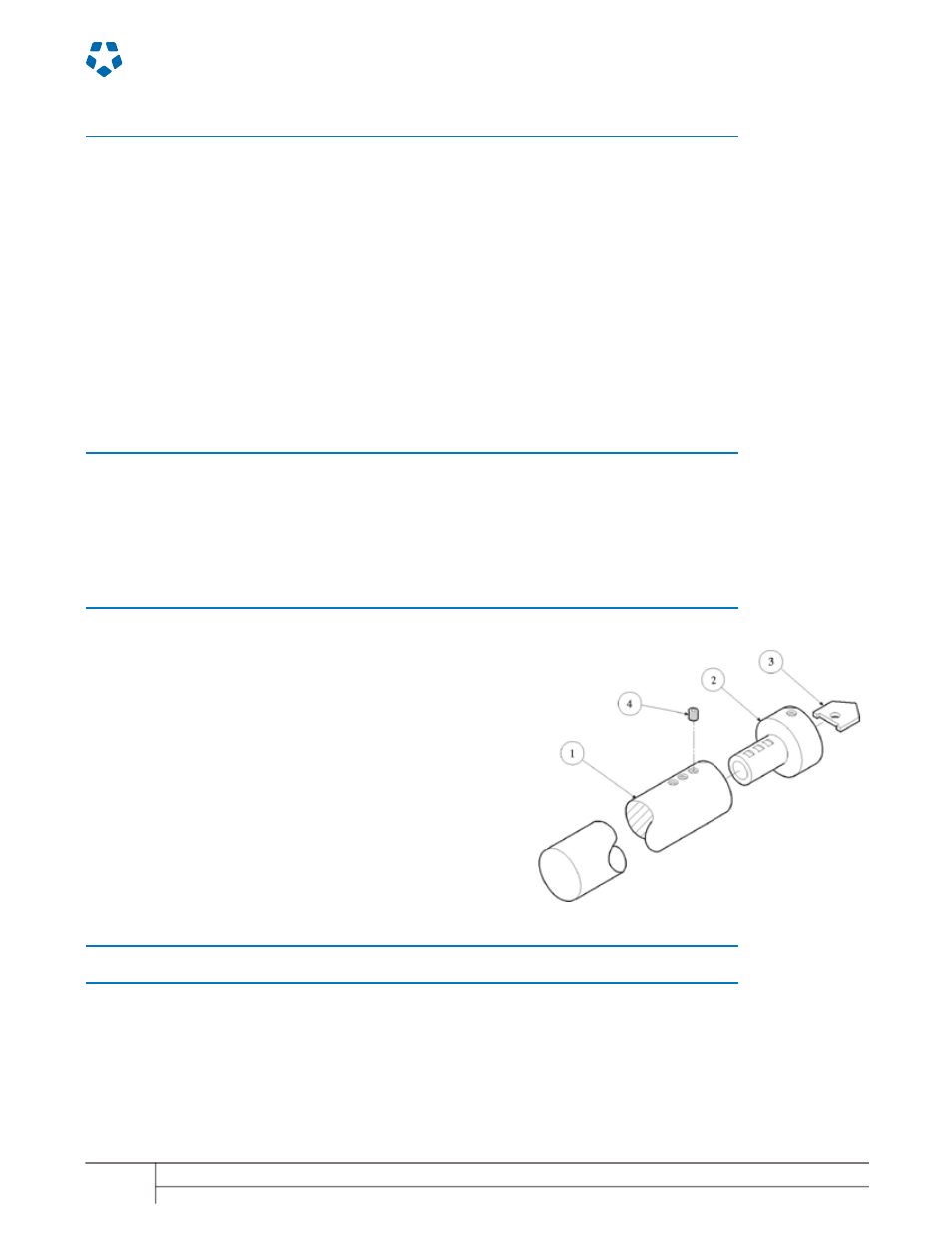

Fig. No. Description
18715 Boring Bar 2-1/4 X 24 inches (57.15 X 609.6 mm) #5 Morse & Straight Shank
19282 Boring Bar 2-1/4 X 24 inches (57.15 X 609.6 mm) #5 Morse Taper Chrome
19283 Boring Bar 2-1/4 X 36 inches (57.15 X 914.4 mm) #5 Morse Taper Chrome
18716 Boring Bar 2-1/4 X 36 inches (57.15 X 914.4 mm) #5 Morse & Straight Shank
19284 Boring Bar 2-1/4 X 48 inches (57.15 X 1,219 mm) #5 Morse Taper Chrome
18717 Boring Bar 2-1/4 X 48 inches (57.15 X 1,219 mm) #5 Morse & Straight Shank
19285 Boring Bar 2-1/4 X 60 inches (57.15 X 1,524 mm) #5 Morse Taper Chrome
1
18718 Boring Bar 2-1/4 X 60 inches (57.15 X 1,524 mm) #5 Morse & Straight Shank
19286 Boring Bar 2-1/4 X 96 inches (57.15 X 2,438 mm) #5 Morse Taper Chrome
21131 Boring Bar 2-1/4 X 72 inches (57.15 X 1,829 mm) #5 Morse Taper Chrome
18612 Bar Boring 24 inch (610 mm) Straight Shank Coolant Hole
18090 Bar Boring 32 inch (813 mm) Straight Shank Coolant Hole
18613 Boring Bar 36 inch (914 mm) Straight Shank Coolant Hole
18608 Boring Bar 48 inch (1,219 mm) Straight Shank Coolant Hole
18609 Boring Bar 60 inch (1,524 mm) Straight Shank Coolant Hole
18590 Holder Spade Drill 1-1/2 to 2.37 inch (38.1 to 59.7 mm) Straight Shank Coolant
18091 Holder Spade Drill 2-1/2 to 3.37 inch (63.5 to 85.6 mm) Straight Shank Coolant
18591 Holder Spade Drill 1-1/2 to 2.37 inch (38.1 to 59.7 mm) #4 Morse Taper
2
18824 Holder Spade Drill 2 to 2-7/8 inch (50.8 to 73.0 mm) Straight Shank
25230 Holder Spade Drill 2 to 2-7/8 inch (50.8 to 73.0 mm) #5 Morse Taper
18586 Holder Spade Drill 2-1/2 to 3.37 inch (63.5 to 85.6 mm) #5 Morse Taper
18713 Holder Spade Drill 2-1/2 to 3.37 inch (63.5 to 85.6 mm) Straight Shank
18592 Drill Blade Spade 1-1/2 inch (38.1 mm) Diameter
18593 Drill Blade Spade 1-5/8 inch (41.3 mm) Diameter
18594 Drill Blade Spade 1-3/4 inch (44.5 mm) Diameter
18595 Drill Blade Spade 1-7/8 inch (47.6 mm) Diameter
18596 Drill Blade Spade 2 inch (50.8 mm) Diameter
18597 Drill Blade Spade 2-1/8 inch (54.0 mm) Diameter
18598 Drill Blade Spade 2-1/4 inch (57.2 mm) Diameter
18599 Drill Blade Spade 2-3/8 inch (60.3 mm) Diameter
3
18601 Drill Blade Spade 2-1/2 inch (63.5 mm) Diameter
18602 Drill Blade Spade 2-5/8 inch (66.7 mm) Diameter
18603 Drill Blade Spade 2-3/4 inch (69.9 mm) Diameter
18604 Drill Blade Spade 2-7/8 inch (73.0 mm) Diameter
17370 Drill Blade Spade 3 inch (76.3 mm) Diameter
18605 Drill Blade Spade 3-1/8 inch (79.4 mm) Diameter
18606 Drill Blade Spade 3-1/4 inch (82.6 mm) Diameter
18607 Drill Blade Spade 3-3/8 inch (85.7 mm) Diameter
4
12564 Screw 5/8 - 18 X 1/2 inch SSSCP
18826 Key for Morse Sleeve (Included with Morse Taper Bars)
18611 Pump Assembly Coolant
18588 Sleeve Reducing Morse Taper #3 ID TO #5 OD
18589 Sleeve Reducing Morse Taper #4 ID TO #5 OD
no
t s
ho
wn
