BB6000 Work Sheet
Model BB6000 Portable Boring Bar
To accommodate a wide range of applications, the Model BB6000 is sold as a com-
bination of components. To get a complete machine, you must specify:
Axial feed assembly Boring bar/leadscrew assembly
Rotational drive assembly Hydraulic power unit (not shown)
Bearing support assemblies, ID or Hydraulic motor
end mount (at least two required)
Tool carrier assembly
Tool head assembly: boring
or facing
Tool kit (not shown)
Items shown in blue are included in all component packages.

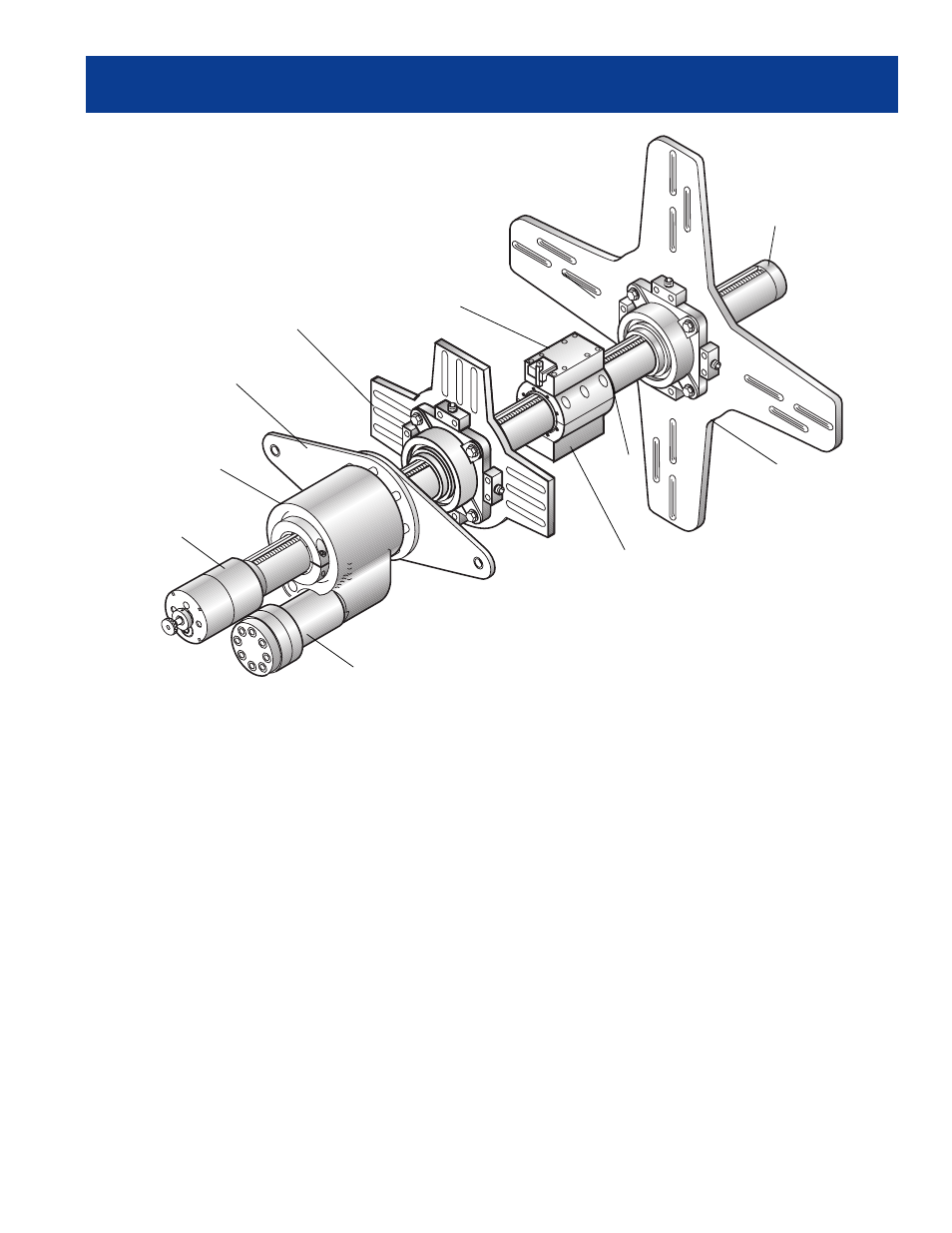

Bearing
support
assembly
(four-arm
end-mount
shown)
Boring bar/
leadscrew
assembly
Tool carrier
assembly
Tool head
assembly
(boring head
shown)
Bearing support
assembly (three-arm
end mount shown)
Torque arm
Rotational
drive unit
Axial feed
unit
Hydraulic motor
